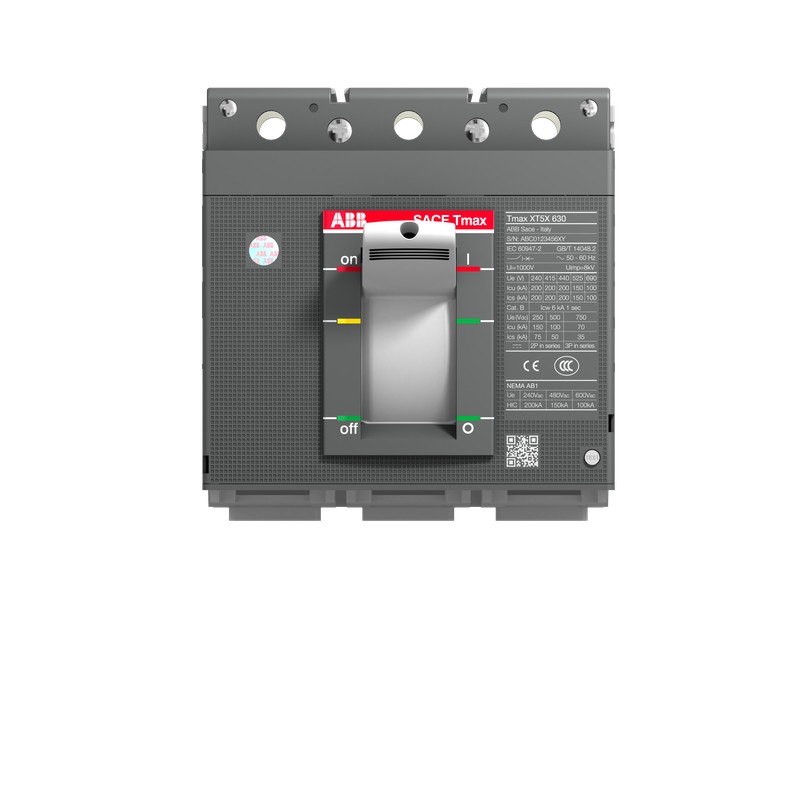

1SDA100563R1 ABB XT5L 630 INTERRUPTIVE PART 3p F F
1SDA100563R1
ABB
XT5L 630 INTERRUPTIVE PART 3p F F
XT5L 630 BREAKING PART 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | bbf1cecf-1b68-4c09-b298-b06035e880d7 Italy |
| Simplified SCIP | 3f62bac4-1c13-428b-bbd3-e8e58e667840 Germany |
| 1a3cb42b-3deb-4d43-9faa-8fa956647f6d Sweden | |
| ea0d52e8-960c-4734-bfe2-c103a917ca42 Greece | |
| 92cc7983-02a1-47af-9e6f-32268d948892 Germany | |
| 289c3256-bd2d-4c57-92ff-b58cc52eb202 Germany | |
| b9e26e36-fe6c-4825-aa9e-311b7c4d6430 Poland | |
| 83704971-4487-4ab1-8edd-0a908b9dd6a3 Norway | |
| 4c429af6-0407-4a2e-a35d-dddb2607a306 Finland | |
| 086a639b-ff92-4429-b812-a15c589a0758 Netherlands | |
| b865f246-258e-4e6f-978f-ea508a5848c1 Germany | |
| 8f753995-feaa-41a5-acb7-b789f6f979b1 Denmark | |
| 059938ad-8726-4666-b257-82cdd697266e Germany | |
| be4f5627-1ba7-46c9-94f8-64bb0be52bc6 Croatia | |
| 121c89fb-f532-46b3-a228-3469496d86a4 Czech Republic | |
| 9a5282bc-7f9f-4ee5-b66d-8affee19221f Poland | |
| 6c49c66d-527a-4ea4-afed-81cb6d039022 Netherlands | |
| 4c11915f-53ee-40f2-b958-873c003d2350 Netherlands | |
| b2adfbec-410b-4028-a2fa-e455c0c2da0c Estonia | |
| 772e4a50-f00e-4ada-ba8e-6225a608fadd Portugal | |
| e0627fd3-67be-490e-a00a-41758c0f5d12 Bulgaria | |
| 3724d611-cf57-425e-b827-da4826361039 Sweden | |
| 9c794dad-d7f8-43ae-a237-f6e7096ef44d Poland | |
| 06c47569-d2d2-4eb8-9fde-969764b1cb40 France | |
| 23e4f95e-ff97-4293-a9ee-b230ad8e59f0 France | |
| b9725128-e7c7-4b96-88f3-9cb21575892c Netherlands | |
| 7c1d7e2e-b648-481f-b288-50cca83c937c Spain | |
| d878a591-1a2a-4162-89cf-66807f0a7bae Netherlands | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641434 |
| E-Number (Norway) | 4380330 |
| EAN | 8056221006392 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.425 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.8 kg |
| Package Level 1 EAN | 8056221006392 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (240 V AC) 150 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 85 kA | |
| (690 V AC) 70 kA | |
| (250 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 2 Poles in Series 70 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (240 V AC) 150 kA | |
| (380 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 85 kA | |
| (690 V AC) 70 kA | |
| (250 V DC) 2 Poles in Series 70 kA | |
| (500 V DC) 2 Poles in Series 70 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Short-Circuit Performance Level | L |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF003977) | 690 V |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
