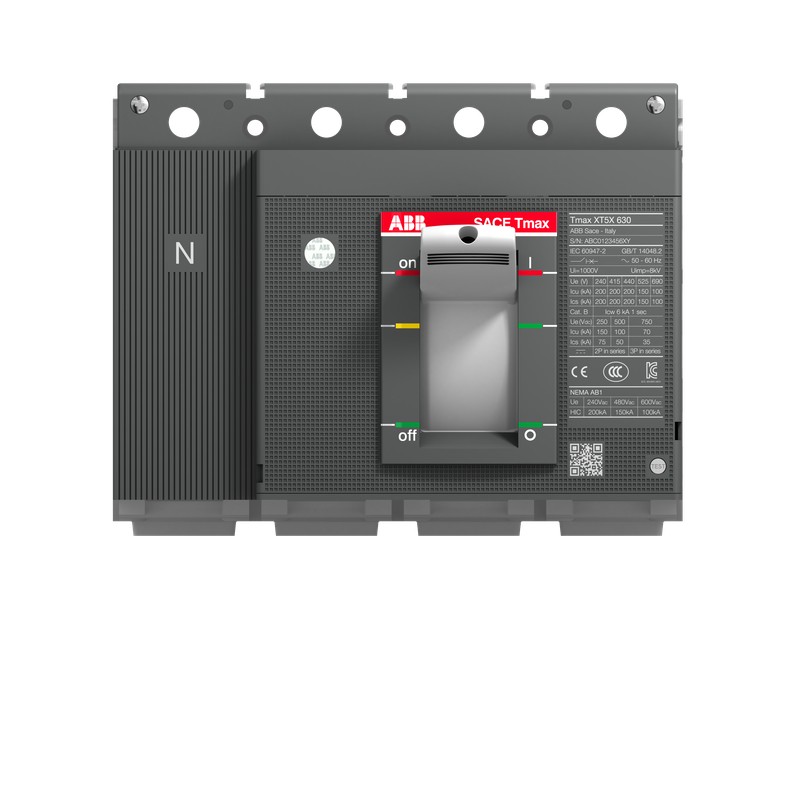

1SDA100561R1 ABB XT5H 630 INTERRUPTIVE PART 4p F F
1SDA100561R1
ABB
XT5H 630 INTERRUPTIVE PART 4p F F
XT5H 630 BREAKING PART 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3c76f405-5f8b-44f0-82f6-6d6f8d51ef85 Italy |
| Simplified SCIP | fd6db47a-8869-4336-b2e0-c9038671eaeb Germany |
| 1af77e8f-b443-4851-a50a-dc8fa3b25184 Germany | |
| 417c0d0a-1ddc-4ff6-ab53-647724e1e100 Poland | |
| a9d10b67-6a62-4073-b2cb-92994da7ec7a Norway | |
| 610cf54b-579c-436d-a91b-369eef96a5eb Finland | |
| 544aa499-7fdf-44d8-ab58-88b936e2a7a8 Netherlands | |
| 95915666-f8f0-4dab-a5c1-14c049ff434d Germany | |
| c3f9763d-ed4c-4c9a-89b9-809c12813fbc Denmark | |
| e30deaa9-82a4-440e-87e6-9ff4b8785c86 Croatia | |
| 511b05f2-33c9-42ed-8bca-29e391454180 Czech Republic | |
| ba49378d-4f64-4dab-b339-bade056f720c Poland | |
| b3ae3d4f-d6d6-48d6-89b3-6a9e6528b43c Netherlands | |
| 11db8d3a-578f-4d0d-a498-b31c6a391886 Netherlands | |
| 60a3a170-d3c5-4fd1-9780-e95df814e55d Estonia | |
| 5f0aadd9-1b84-451f-9544-fbaf54377633 Portugal | |
| 56f0fd41-60c5-4ac5-941b-c52176fe0fec Bulgaria | |
| ad0ec00c-79ca-4f3b-8f28-03348d092111 Sweden | |
| 9ded56c4-b61c-4bb3-99db-19283cd3d35a Poland | |
| 4cc7c427-821a-4734-a865-df8265b1093a France | |
| 3bddbb96-e614-4b8c-90b1-2660a93a12e3 Sweden | |
| dc77eece-0108-4594-8589-ed35743403fd Greece | |
| 2b9ca0c9-4304-4e29-b91a-b4378488dc22 Germany | |
| 5c83d82a-88ed-4f8f-8da4-f7c1c3e31a8b Germany | |
| 2222ca9a-74c7-40ef-a407-87faf8371647 France | |
| 4597d735-da93-4c86-94fb-bff8d07655a3 Netherlands | |
| 9cb4cd14-c6d6-41a1-b2dc-629194ebaed4 Spain | |
| a8caa891-bc83-4f64-92f2-2f9671d04698 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641430 |
| E-Number (Norway) | 4380453 |
| EAN | 8056221006378 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.15 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 4.5 kg |
| Package Level 1 EAN | 8056221006378 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF003977) | 690 V |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
