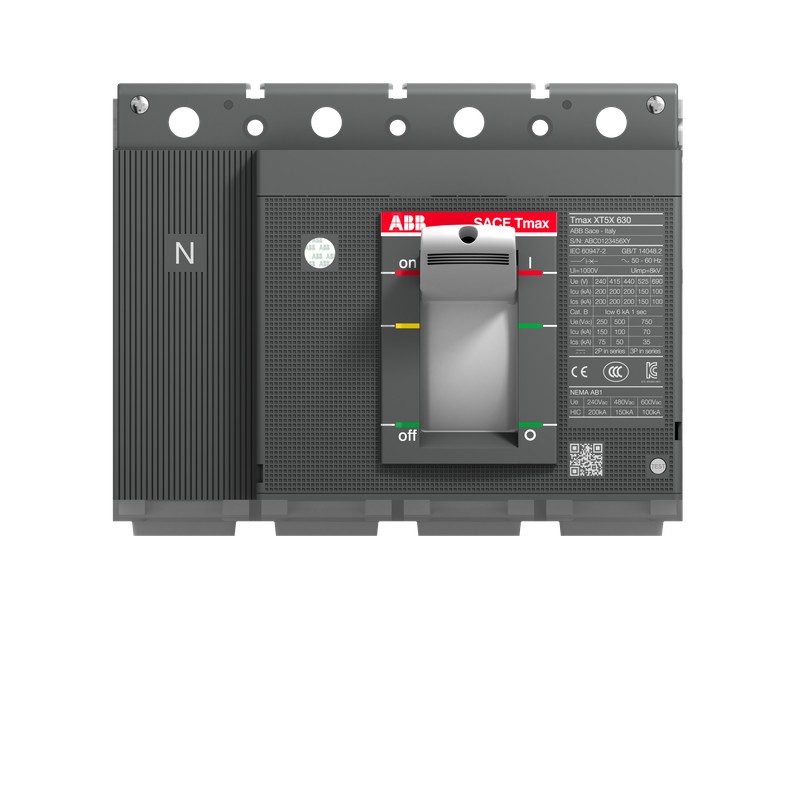

1SDA100560R1 ABB XT5H 400 INTERRUPTIVE PART 4p F F

Reference: 1SDA100560R1

Manufacturer: ABB

Description:

XT5H 400 INTERRUPTIVE PART 4p F F

XT5H 400 BREAKING PART 4p F F

Categories:

Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 1.401,00 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions	9AKK108468A2353
Environmental Product Declaration - EPD	9AKK108468A9746
	9AKK108468A1893
Extended Product Lifetime	Product Modularity
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration	9AKK108466A1425
RoHS Declaration	9AKK108466A1424
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
Toxic Substances Control Act - TSCA	9AKK108467A8326
SCIP	e8e53c10-b50f-440a-a940-7f674654a70b Italy
Simplified SCIP	4025a75e-4283-4615-bb37-a3aa0f03782b Germany
	4685e09e-cb85-4ee7-a715-9ff4d3966771 Germany
	2f85e0f3-6833-41b9-b613-cab4a4dc628c Poland
	91950bcc-cecd-4cc0-a02a-826c385531bc Norway
	cb60de8b-0219-46a6-a230-bceaf3fbce17 Finland
	c74f824b-bea1-4ef1-95e3-ebe516cb9786 Netherlands
	f83ff3e0-910a-4ebf-8555-ca4b82877581 Germany
	cb13e80c-1c0f-4454-b4f4-cd7447c2969f Denmark
	68c79195-d85f-4cc7-ac1a-13419beba34d Croatia
	daca3c7a-9a5f-4e4d-b02e-77aa527dbd1d Czech Republic
	de4404db-30ac-449d-98b0-c29a8e72cd42 Poland
	6a9352e7-7790-41fe-909a-eeae210fa0d0 Netherlands
	a13cd2bd-ec80-48c5-895d-001927c1b70a Netherlands
	cdf7a8a8-9e59-4eda-bc55-24323d055ed6 Estonia
	1dfaaee7-c2e9-4b2d-a32d-4ccb89010a2a Portugal
	4ba25916-f56d-40a7-950a-e9458f46d84e Bulgaria
	554c3c56-cdaa-4ff6-a2d1-2039ffe8e385 Sweden
	7fffcbab-a87a-4413-9a23-48a0ba8ac8ac Poland
	4f59608e-340a-4222-bf4e-72c83adfb03e France
	a0b545e5-da83-47fd-97c3-f60b519366a4 Sweden
	5ed8a4b1-bcdc-4d6e-9148-f3161f15b105 Greece
	786ee23c-58cc-44c1-9c2f-3f0daa09417e Germany
	86e2a4a2-1e48-4581-9292-47dd381342a1 Germany
	07b758b7-29dd-4413-814a-6446c66c7fc5 France
	b0581822-398d-42fa-ac0d-9a30ed63606e Netherlands
	da7c7847-3aa4-4509-a38f-f8ff1c159f2b Spain
	8f747875-58f7-4189-b5cf-34084741cbb2 Netherlands
Environmental
Environmental Information	9AKK108467A6707
Ordering
E-Number (Finland)	3641419
E-Number (Norway)	4380452
EAN	8056221006361
Minimum Order Quantity	1 piece
Customs Tariff Number	85389099
Dimensions
Product Net Width	186 mm
Product Net Height	205 mm
Product Net Depth / Length	103.5 mm
Product Net Weight	4.15 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	248 mm
Package Level 1 Height	240 mm
Package Level 1 Depth / Length	285 mm
Package Level 1 Gross Weight	4.5 kg
Package Level 1 EAN	8056221006361
Additional Information
Product Main Type	SACE Tmax XT
Product Name	Moulded Case Circuit Breaker
Product Type	Breaking Part
Version	F
Technical
Electrical Durability	7000 cycle
	60 cycles per hour
Mechanical Durability	20000 cycle
	120 cycles per hour
Number of Poles	4P
Order Multiple	1 piece
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Voltage	690 V AC
	750 V DC
Rated Service Short-Circuit Breaking Capacity (I_cs)	(220 V AC) 100 kA
	(230 V AC) 100 kA
	(240 V AC) 100 kA
	(380 V AC) 70 kA
	(415 V AC) 70 kA
	(440 V AC) 65 kA
	(500 V AC) 50 kA
	(525 V AC) 50 kA
	(690 V AC) 40 kA
	(250 V DC) 2 Poles in Series 50 kA
	(500 V DC) 2 Poles in Series 50 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	5 kA
Rated Ultimate Short-Circuit Breaking Capacity (I_cu)	(220 V AC) 100 kA
	(230 V AC) 100 kA
	(240 V AC) 100 kA
	(380 V AC) 70 kA
	(415 V AC) 70 kA
	(440 V AC) 65 kA
	(500 V AC) 50 kA
	(525 V AC) 50 kA
	(690 V AC) 40 kA
	(250 V DC) 2 Poles in Series 50 kA
	(500 V DC) 2 Poles in Series 50 kA
Rated Uninterrupted Current (I_u)	400 A
Short-Circuit Performance Level	H
Standards	IEC60947-2
Sub-type	XT5
Terminal Connection Type	Front
Certificates and Declarations
Data Sheet, Technical Information	1SDC210100D0206
	1SDC210099D0206
Declaration of Conformity - CE	9AKK107680A2824
Instructions and Manuals	1SDH002011A1001
External Classifications and Standards
ETIM 9	EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10	EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code	Q
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
eClass	V11.1 : 27370409

ETIM for 1SDA100560R1 Low-voltage industrial controls and switchgear (EC000228)

Feature nameRated voltage (EF003977)

Feature value690 V

Feature nameIntegrated earth fault protection (EF007296)

Feature valueNo

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameDevice construction (EF008240)

Feature valueBuilt-in device fixed built-in technique

Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)

Feature valueNo

Feature nameDIN rail (top hat rail) mounting optional (EF008904)

Feature valueNo

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameWith switched-off indicator (EF007006)

Feature valueNo

Feature nameWith integrated under voltage release (EF001390)

Feature valueNo

Feature nameNumber of poles (EF001391)

Feature value4

Feature namePosition of connection for main current circuit (EF006671)

Feature valueFront

Feature nameType of control element (EF006976)

Feature valueToggle

Feature nameComplete device with protection unit (EF008906)

Feature valueYes

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameMotor drive optional (EF007386)

Feature valueYes

Feature nameDegree of protection (IP) (EF005474)

Feature valueIP20
