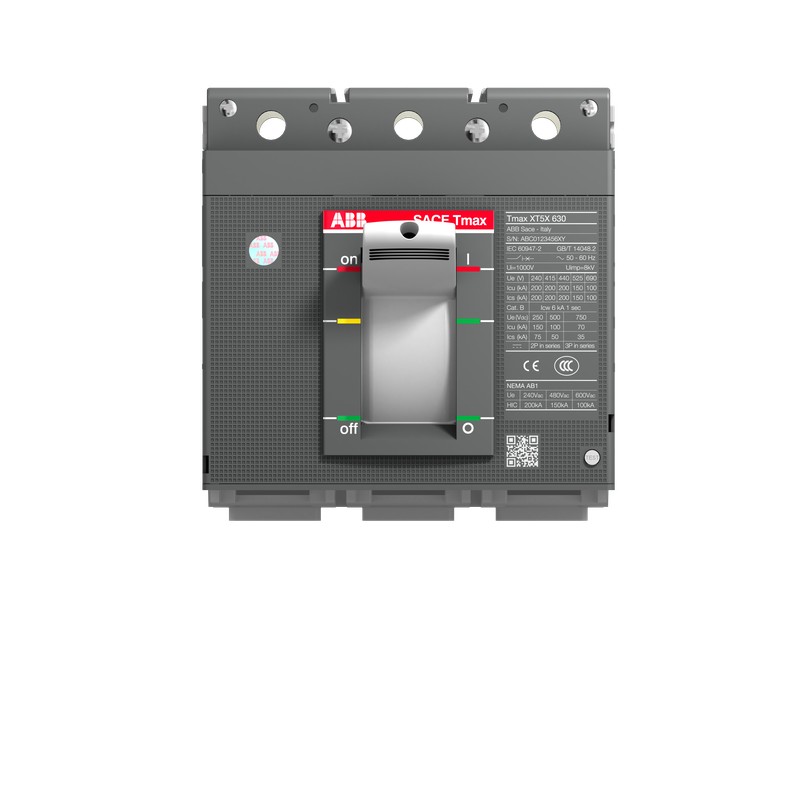

1SDA100559R1 ABB XT5H 630 INTERRUPTIVE PART 3p F F
1SDA100559R1
ABB
XT5H 630 INTERRUPTIVE PART 3p F F
XT5H 630 BREAKING PART 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 10e5450f-981f-4b4f-88b5-ba0292619a59 Italy |
| Simplified SCIP | c4807bf9-a286-49b5-85c1-f220a1488a4d Germany |
| f3f4e632-cd10-400c-80ab-8e99154c7b51 Denmark | |
| 2381167a-ae37-455f-a4ac-3cece915dd08 Sweden | |
| e6efed11-8848-4f06-9efc-3ad92c85d64d Estonia | |
| 8d047f2f-7ce4-416c-ba60-e638537ba4c0 Netherlands | |
| 21069f46-776e-4a34-be2e-019acac0b706 Bulgaria | |
| f66009fc-1c82-4a6e-bc85-1b9b53ffd88e Norway | |
| 35a4e629-0944-40da-bfbf-9b0e02fc90f9 Sweden | |
| acd38d65-0eb2-42b7-809a-03cd5552e202 Poland | |
| c8636391-92bf-4522-8724-4dd87d0db4ff France | |
| f0027362-0e4f-4f5e-9826-3bf1f1c617d0 Netherlands | |
| de6862a3-a46c-4533-a8fd-c6194175dfc5 Poland | |
| 4285acee-c399-4e8f-88b2-a6f81f310ea8 Netherlands | |
| 19d3fbb6-69cd-4c28-8751-a6ab6c9ad28f Netherlands | |
| cd0ffc64-10eb-4584-b72e-ae4288a0b965 Germany | |
| c0d0971b-c5a6-47e9-accb-b4379fa7f746 Croatia | |
| 9ad4998a-166e-4325-8e55-17cd8bff2b89 Finland | |
| b351686e-4d91-4e19-8e2c-bef72d598ede Czech Republic | |
| 277b72ff-40a6-4e9f-8c4e-3fa114e34b3b Greece | |
| 193d55c6-abfb-45b7-98b0-d61c8fff9816 Poland | |
| 4b1badf3-4820-497d-a7b9-de62cffa3dac Germany | |
| ec43cffa-3f87-4507-880c-76412fad85e1 Germany | |
| 8d65e106-b3b2-454e-b6ab-0d222e90da41 Portugal | |
| d3aba142-7ec9-420d-9915-c6e1313feb73 Spain | |
| 2362da90-5866-4163-b018-f1a704a32dc6 Germany | |
| 086f0b8c-d9ab-4244-bfec-a023c7948cfd Netherlands | |
| a4d4816a-0cf2-4857-9116-2e193697737f France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641420 |
| E-Number (Norway) | 4380328 |
| EAN | 8056221006354 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.425 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.8 kg |
| Package Level 1 EAN | 8056221006354 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 2CDC210017C0101 |
| 1SDC210100D0206 | |
| 1SXF210033C2001 | |
| 1SDC210099D0206 | |
| 1SXF210034C2001 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Wiring Diagram | |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF003977) | 690 V |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
