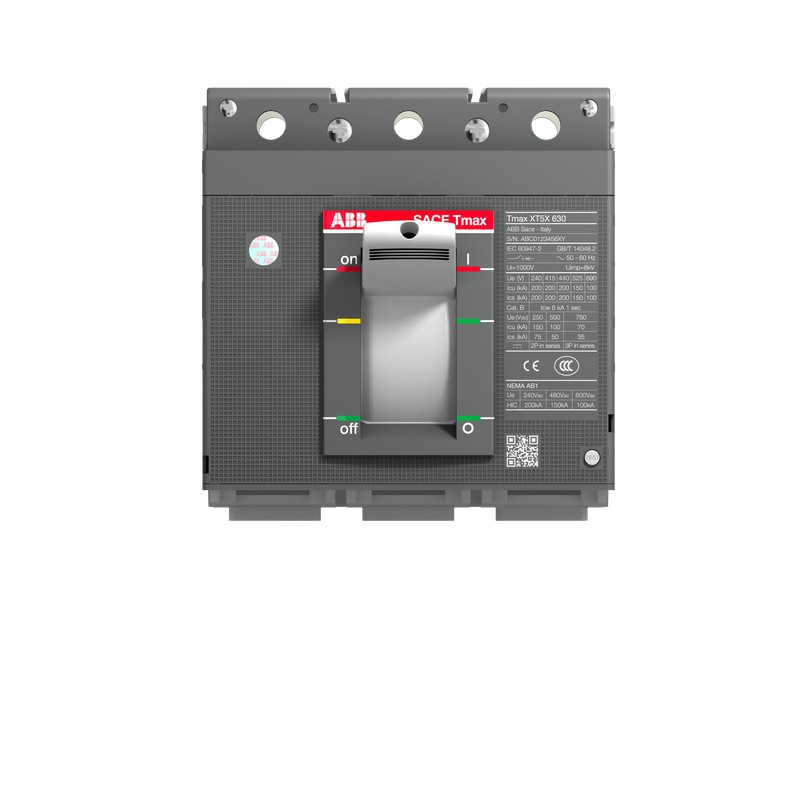

1SDA100558R1 ABB XT5H 400 INTERRUPTIVE PART 3p F F
1SDA100558R1
ABB
XT5H 400 INTERRUPTIVE PART 3p F F
XT5H 400 BREAKING PART 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c2660fb4-63f3-4a53-8bd6-7b9493220039 Italy |
| Simplified SCIP | ff575f28-f213-49c3-8ae8-30d388b41848 Germany |
| 898b578f-7ed9-4d57-aa9d-a009f2788bf2 Germany | |
| f960f76b-00e7-4fda-ba93-f0d98b110acf Poland | |
| b0f13386-b42f-4d37-b3ab-e673fe50e77f Norway | |
| e26a6181-1dd5-4889-9f1b-d31caac247ad Finland | |
| c1f80cf7-95ed-4779-ac9c-e992aa360117 Netherlands | |
| 67079c57-1e9e-43e9-8ca1-c8c9860da6e1 Germany | |
| 662b9163-974c-4769-bb0d-fd33ea2d2dd4 Denmark | |
| 0902ada6-f0bd-478c-89cd-ec2945b5fb81 Croatia | |
| ece3382f-8658-4a98-85f0-30da19693aa7 Czech Republic | |
| 9d114a3f-e8cf-4b47-95b4-a5aeb23b44b5 Poland | |
| 3223da49-1d3b-4b0b-a72e-469af0f6923e Netherlands | |
| 130fe134-9520-4bc3-b1ac-56537056464a Netherlands | |
| 62bb0eee-d36c-4957-94eb-a9fff1e744a1 Estonia | |
| f0e5f42e-bfd7-486f-af65-64e19dc6d132 Portugal | |
| af49c851-32ef-4b4a-aa45-e869ae7c3670 Bulgaria | |
| 90497df9-929c-415d-a3fb-dab4581057c6 Sweden | |
| 71208563-c716-4bfc-b565-7035e2e53507 Poland | |
| daab6aaa-fe01-4df1-a39c-0e79aab37de7 France | |
| 5bc75083-86a1-4c58-8128-5ca0086cb62a Sweden | |
| 4c8cdf05-6dfc-427b-864c-e6cc3ef9de63 Greece | |
| fa8ceb58-7a15-496d-8f00-601e421115d2 Germany | |
| 75499003-4e39-4ca6-84dc-25d1dd50ccd9 Germany | |
| ce5fa7d1-13cb-4069-8bc6-e4ff7db5ea6f France | |
| d6f99895-f5ac-4d5a-8a39-be3e99c2b7bb Netherlands | |
| 743ca7ce-4a39-4507-9f60-74ceffb1f9f8 Spain | |
| ee95457b-089e-404a-a625-bf71129be269 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641418 |
| E-Number (Norway) | 4380327 |
| EAN | 8056221006347 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.425 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.8 kg |
| Package Level 1 EAN | 8056221006347 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 2CDC210017C0101 |
| 1SDC210100D0206 | |
| 1SXF210033C2001 | |
| 1SDC210099D0206 | |
| 1SXF210034C2001 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Wiring Diagram | |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF003977) | 690 V |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
