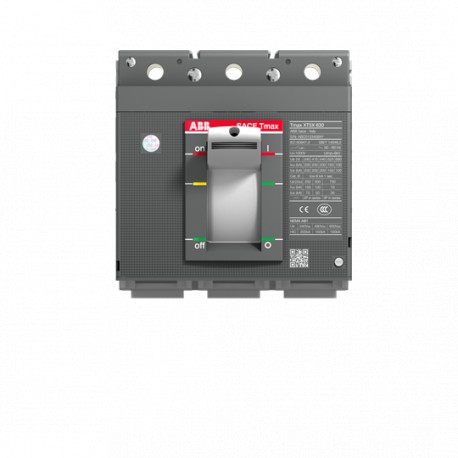

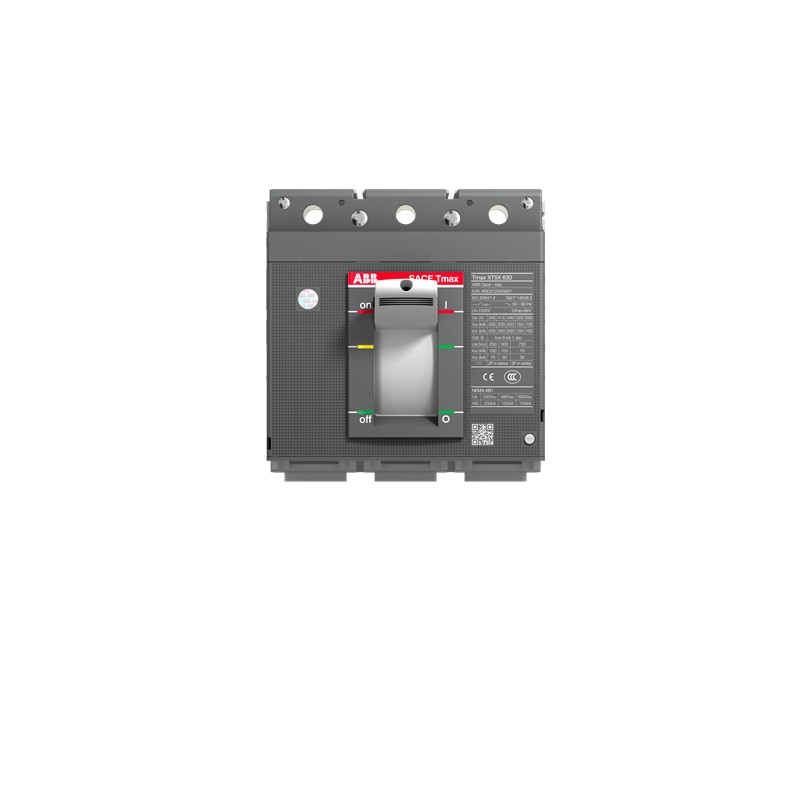

1SDA100555R1 ABB XT5S 630 INTERRUPTIVE PART 3p F F

Reference: 1SDA100555R1

Manufacturer: ABB

Description:

XT5S 630 INTERRUPTIVE PART 3p F F

XT5S 630 BREAKING PART 3p F F

Categories:

Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 1.111,83 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions	9AKK108468A2353
Environmental Product Declaration - EPD	9AKK108468A9746
	9AKK108468A1893
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration	9AKK108466A1425
RoHS Declaration	9AKK108466A1424
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
Toxic Substances Control Act - TSCA	9AKK108467A8326
SCIP	a2a2fb3b-5a04-4d69-b154-0dce2dbe5175 Italy
Simplified SCIP	f0ecbbe7-26d9-4536-8758-f4023abde33f Germany
	a1a2787c-b699-4f5e-94a1-97201f809c39 Poland
	cefebe64-bea7-4419-833e-7ccaed726b7d Norway
	6b0f186b-f1d1-44f3-a62d-50181566c34c Finland
	e18f0c55-affb-4de6-a5f5-ecf4963863ca Netherlands
	bd5b1ada-b5bb-464a-ab48-5fb985c43fbc Germany
	3ddf9ed9-e9ac-4741-bad6-819c19358985 Denmark
	0e5242a1-af9d-4cfa-95c3-a576ae9152f3 Germany
	34182853-7844-4205-bfb1-18e10239b8d1 Croatia
	9c66612c-d471-47a4-847a-dc40508cd2d0 Czech Republic
	007f2027-9f69-4c0f-b154-ea00f13dd427 Poland
	d4706c84-7036-41a5-ab94-01c6ac03abe7 Netherlands
	2eafb689-6a25-4ca0-b551-6ae34e93d3f1 Netherlands
	55eb9fe5-792c-4243-b3b9-88e40aefaa33 Estonia
	1ee6881e-72a5-4cf2-a633-15924f5183e1 Portugal
	0b74b4e1-94b7-4898-9769-3206c89ddc12 Bulgaria
	a55b5826-60a4-4035-8d9d-8c4ad38e356d Sweden
	3c832cc4-d70b-4fb0-9286-dd491ddeaedf Poland
	95924cbd-1e70-4c15-9003-d9bd82bce4ed France
	7cc37f57-c966-4621-8bcc-798bf443ccd5 Sweden
	389d2306-0757-44fb-9b89-6db8faf93a45 Greece
	91dc87b9-4b45-42af-aa89-7dbec48e19aa Germany
	afa83d5e-e7be-4ac6-b5c2-e733e7b5c94d Germany
	2faf6300-6bd3-4a67-8b4d-c7a777a68e69 France
	b6778e68-1a83-499b-8f9e-e459ce86e41d Netherlands
	25750d1d-a791-484f-9b8a-1a69da845a1a Spain
	bf20c32c-4fc7-4703-afba-0664c9071ec4 Netherlands
Environmental
Environmental Information	9AKK108467A6707
Ordering
E-Number (Finland)	3641402
E-Number (Norway)	4380326
EAN	8056221006316
Minimum Order Quantity	1 piece
Customs Tariff Number	85389099
Dimensions
Product Net Width	140 mm
Product Net Height	205 mm
Product Net Depth / Length	103.5 mm
Product Net Weight	3.425 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	248 mm
Package Level 1 Height	240 mm
Package Level 1 Depth / Length	285 mm
Package Level 1 Gross Weight	3.8 kg
Package Level 1 EAN	8056221006316
Additional Information
Product Main Type	SACE Tmax XT
Product Name	Moulded Case Circuit Breaker
Product Type	Breaking Part
Version	F
Technical
Electrical Durability	5000 cycle
	60 cycles per hour
Mechanical Durability	20000 cycle
	120 cycles per hour
Number of Poles	3P
Order Multiple	1 piece
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Voltage	690 V AC
	750 V DC
Rated Service Short-Circuit Breaking Capacity (I_cs)	(220 V AC) 85 kA
	(230 V AC) 85 kA
	(240 V AC) 85 kA
	(380 V AC) 50 kA
	(415 V AC) 50 kA
	(440 V AC) 50 kA
	(500 V AC) 30 kA
	(525 V AC) 30 kA
	(690 V AC) 25 kA
	(250 V DC) 2 Poles in Series 35 kA
	(500 V DC) 2 Poles in Series 35 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	6 kA
Rated Ultimate Short-Circuit Breaking Capacity (I_cu)	(220 V AC) 85 kA
	(230 V AC) 85 kA
	(240 V AC) 85 kA
	(380 V AC) 50 kA
	(415 V AC) 50 kA
	(440 V AC) 50 kA
	(500 V AC) 30 kA
	(525 V AC) 30 kA
	(690 V AC) 25 kA
	(250 V DC) 2 Poles in Series 35 kA
	(500 V DC) 2 Poles in Series 35 kA
Rated Uninterrupted Current (I_u)	630 A
Short-Circuit Performance Level	S
Standards	IEC60947-2
Sub-type	XT5
Terminal Connection Type	Front
Certificates and Declarations
Data Sheet, Technical Information	1SDC210100D0206
	1SDC210099D0206
Declaration of Conformity - CE	9AKK107680A2824
Instructions and Manuals	1SDH002011A1001
External Classifications and Standards
ETIM 9	EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10	EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code	Q
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
eClass	V11.1 : 27370409

ETIM for 1SDA100555R1 Low-voltage industrial controls and switchgear (EC000228)

Feature nameRated voltage (EF003977)

Feature value690 V

Feature nameIntegrated earth fault protection (EF007296)

Feature valueNo

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameDevice construction (EF008240)

Feature valueBuilt-in device fixed built-in technique

Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)

Feature valueNo

Feature nameDIN rail (top hat rail) mounting optional (EF008904)

Feature valueNo

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameWith switched-off indicator (EF007006)

Feature valueNo

Feature nameWith integrated under voltage release (EF001390)

Feature valueNo

Feature nameNumber of poles (EF001391)

Feature value3

Feature namePosition of connection for main current circuit (EF006671)

Feature valueFront

Feature nameType of control element (EF006976)

Feature valueToggle

Feature nameComplete device with protection unit (EF008906)

Feature valueYes

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameMotor drive optional (EF007386)

Feature valueYes

Feature nameDegree of protection (IP) (EF005474)

Feature valueIP20
