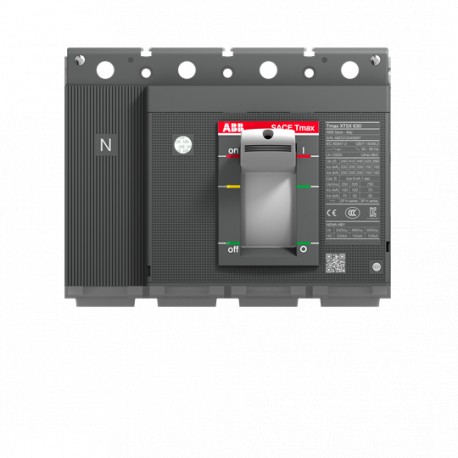

1SDA100552R1 ABB XT5N 400 INTERRUPTIVE PART 4p F F
1SDA100552R1
ABB
XT5N 400 INTERRUPTIVE PART 4p F F
XT5N 400 BREAKING PART 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 9ce24c01-0946-4cf5-b5d7-1fbf6fa704b3 Italy |
| Simplified SCIP | 3710709c-4d14-40dc-a4de-723aad6e1642 Germany |
| 2ae3a7a5-30bf-41de-8355-282f00e1e44c Germany | |
| 74d48a79-ec16-4ddd-9f15-73d18c0cd4bc Germany | |
| a24b3588-bef4-4734-ad4a-f4a2fd7de199 France | |
| 8714cacd-459a-4c85-94af-b17c0ca41567 Netherlands | |
| c78f4d87-cf18-4f13-8a72-47b756dc8dd1 Spain | |
| f783c710-6a95-48b0-82db-5e7459dc77a5 Netherlands | |
| 10f26755-db57-4f97-8eaf-f87d739e12b2 Sweden | |
| 8c5004cf-a02b-4fc7-9229-e7cf91cf79dc Greece | |
| c7d03023-664e-49a6-94ca-70a43c80d9e0 Poland | |
| 358320ce-6b6c-45b7-a233-3d2d548feb11 Norway | |
| a507a1e7-1c56-4b27-81f4-83fc2caaafcf Finland | |
| 2becec6f-72bc-4d18-88e5-09395d129bb6 Netherlands | |
| 259a94e1-72d6-4e83-86a7-8509f4117874 Germany | |
| c304966c-a547-4087-9f8b-f7e72f522239 Denmark | |
| fb4a5a00-5165-484f-9606-f758a6d531b5 Germany | |
| 4b5f0241-fb17-4125-9fad-6083fd99eb96 Croatia | |
| 8bbbd34b-2ef4-46a2-aff1-c3dfe524a75a Czech Republic | |
| 0db8b501-fc49-4747-a120-d12e19ce2bdc Poland | |
| 6a523950-8803-4eeb-830a-f8346adf1698 Netherlands | |
| 3f316429-843e-4058-96de-6b0204662ab4 Netherlands | |
| 6113b70d-922d-49e5-8bc5-a8cbdcfcfe25 Estonia | |
| fc32d6c4-29ce-42b5-bef1-098b062f0990 Portugal | |
| aa6120a2-7e88-4679-b1ef-ac9e7e53dc7d Bulgaria | |
| a42c6b6b-31b8-40ae-9a1e-08354856e34c Sweden | |
| d77a8e96-b723-4914-a880-53c7adf32040 Poland | |
| ae434634-0068-4a9f-85d4-c557bec83b01 France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641397 |
| E-Number (Norway) | 4380448 |
| EAN | 8056221006286 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.15 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 4.5 kg |
| Package Level 1 EAN | 8056221006286 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF003977) | 690 V |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
