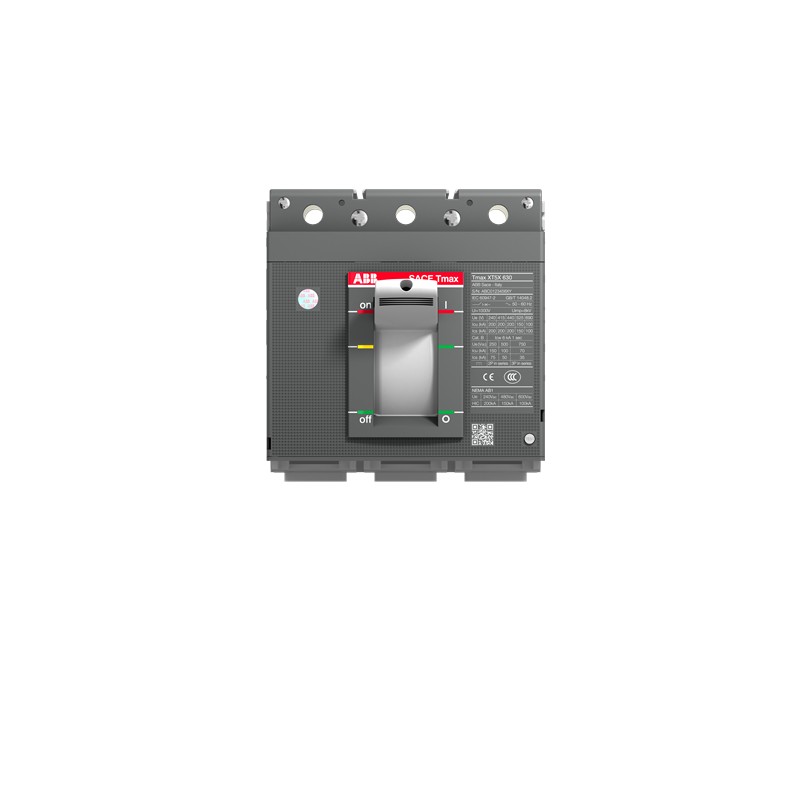

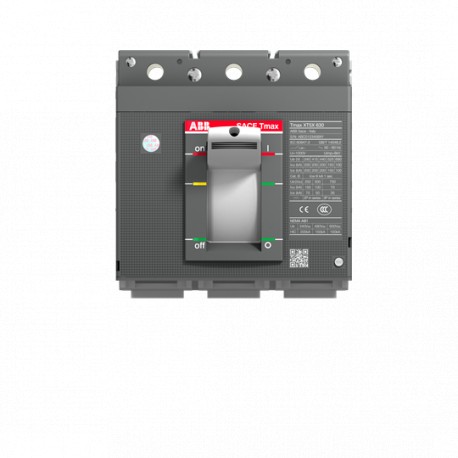

1SDA100550R1 ABB XT5N 400 INTERRUPTIVE PART 3p F F
1SDA100550R1
ABB
XT5N 400 INTERRUPTIVE PART 3p F F
XT5N 400 BREAKING PART 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 6ec8fe9c-35cc-465d-820a-ddaa8f459a25 Italy |
| Simplified SCIP | c8c90e9d-7c70-4379-96fd-a9ae6e6f1300 Germany |
| d0900ff7-a757-4fae-a881-a5ea25351c51 Germany | |
| 9b07e73f-14d1-4af1-9110-b8729f7402a2 France | |
| 1ad62dc8-d90d-4210-b193-abc6073a67d1 Netherlands | |
| 4b23fb89-fe2c-4410-bb42-7289f5302151 Spain | |
| c9ce231f-a540-402b-914b-56397cad868a Netherlands | |
| 3a1436a8-4a07-462c-8f47-ffbf4c6edb63 Bulgaria | |
| 4978c3e4-b48b-4753-98bb-afdbf6490a07 Sweden | |
| 5fc59b9e-999c-48b4-a1e4-ec0f65261b4f Poland | |
| 7fbd870b-b6ac-4dbd-96ee-efc6241fb2dd France | |
| 80841d8b-b4a7-45a3-9c5b-6b33269890f7 Sweden | |
| 41f6ce1e-07b4-4cef-a89d-70321e8d8e4b Greece | |
| c62e49f2-6aaf-4fec-bf1a-29b933eff264 Germany | |
| e8c252fe-cd80-4dc9-8ab0-2c27501bb96e Poland | |
| e6573a9b-6cca-49ba-9817-a8923496bfa5 Norway | |
| 9dab5e1f-6113-4646-86e3-0641a27ce089 Finland | |
| c65804ad-6e27-4de9-aa6e-595f51ec3530 Netherlands | |
| a58a46b9-21ca-4071-b3f6-13ce22ee89b5 Germany | |
| 6fe5a1fb-9b7a-4954-b0d0-677b146c7b46 Denmark | |
| 8806fe7b-7636-410b-bf82-b3ea05db2540 Germany | |
| 919307d7-d6a1-4434-89eb-f8f18f607211 Croatia | |
| cc802dfa-0019-40e3-b63b-909338aacc7f Czech Republic | |
| 3fd922df-49c8-4629-942f-1424b724d3d6 Poland | |
| fcf12145-12f8-489d-a1a2-5d2f5cec55bb Netherlands | |
| b5ce3e0b-1e9a-4aa0-bf4a-de0568d473b2 Netherlands | |
| bd70af9c-c0f3-4891-9472-e1c6ef509af2 Estonia | |
| 63900ef9-165f-457b-ac78-dafa3ba146d1 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641396 |
| E-Number (Norway) | 4380323 |
| EAN | 8056221006262 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.425 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.8 kg |
| Package Level 1 EAN | 8056221006262 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF003977) | 690 V |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
