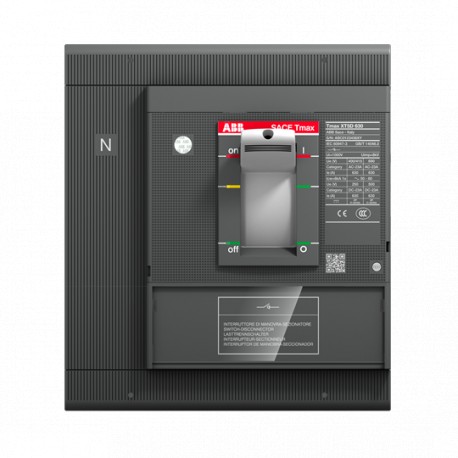

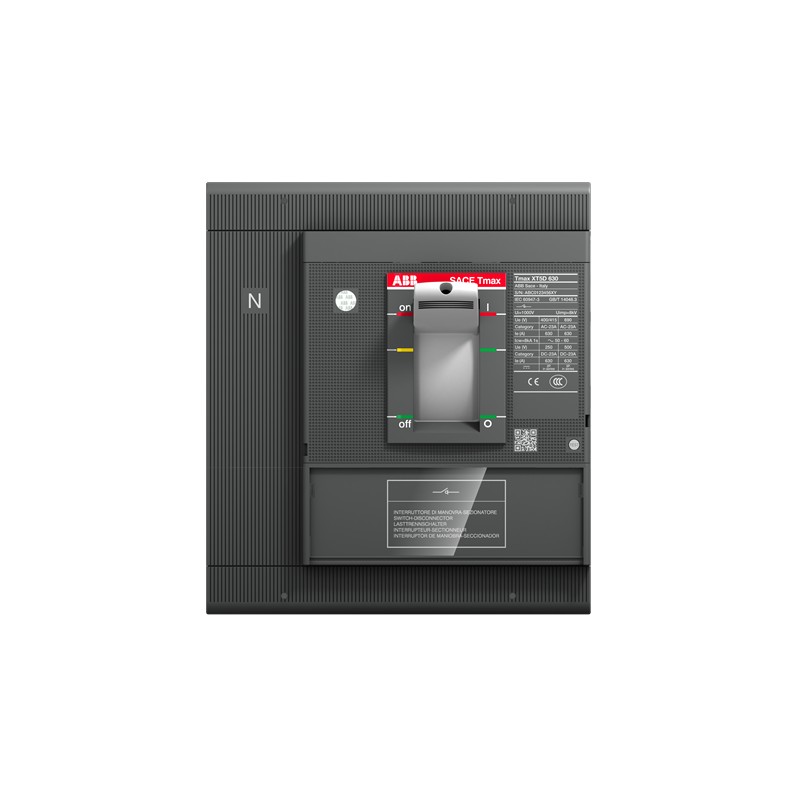

1SDA100549R1 ABB XT5D 630 4p F F

Reference: 1SDA100549R1

Manufacturer: ABB

Description:

XT5D 630 4p F F

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 1.235,59 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 7-8 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutions	Yes
ABB Site Meeting Group Waste To Landfill Target	UL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions	9AKK108468A2353
Environmental Product Declaration - EPD	9AKK108468A9746
	9AKK108468A1893
Recyclability Rate of the Product acc. to EN45555	Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration	9AKK108466A1425
RoHS Declaration	9AKK108466A1424
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
Toxic Substances Control Act - TSCA	9AKK108467A8326
SCIP	bf15f994-6831-4b5a-8a1d-08ff18684528 Italy
Simplified SCIP	b8ed9c1f-2415-4d42-9c32-b2becb3b5c0c Germany
	e13cdd0b-909b-4787-803c-fa77750dd19a Germany
	953d7c07-5c4d-4af7-b279-138196e17b5f Poland
	55687a76-c562-4e8d-bb42-49cdabe1199e Norway
	a18baa3c-7020-41d1-a72c-f13671d21b36 Finland
	7d64434c-7722-4d62-9b3e-908ac2a7539f Netherlands
	c2697ba4-1c25-471f-b7d7-ae8731ad3c52 Germany
	b6a89e0f-1cd9-47f2-a01e-25e07a4425a5 Denmark
	1fccba85-d044-47b0-b0b7-8b18bbc87015 Croatia
	d2dd09ce-cef0-4837-a976-65f4c6e6d872 Czech Republic
	f18c772a-f5e2-418d-83a2-7fa4d57b9911 Poland
	fd2f2615-c0a9-4111-a6ba-3136479a3873 Netherlands
	cee2832c-72ff-4eef-9bec-22a52d64d496 Netherlands
	decfd2a6-3cd8-4eed-adbf-c16e9c9d2a44 Estonia
	5f41e7ad-9a19-4e17-838e-cf2ec0222cd0 Portugal
	34e7d555-b375-43e5-985d-51401b776d23 Bulgaria
	ed1e52be-0e22-4118-bafb-6e0aff8b39f6 Sweden
	01c98c44-9950-4bb1-88c7-178a0e9a477d Poland
	d2748ad4-97e1-4430-88b1-6f3de75de0d1 France
	33f5a350-2a8c-4ec2-b6ed-ee19926c271b Sweden
	8e6ba879-e194-47fc-9cc0-45b3a7f732c4 Greece
	0e971679-8bea-4de6-8b34-5905ab243498 Germany
	ee9a92f2-885e-452d-89a7-89a449ae9259 Germany
	ee806ff4-9fb6-4d27-8587-b4fd115b4aa8 France
	daadbc90-2a33-4be2-bd50-7736d56e4a5a Netherlands
	ac09edab-8219-472c-a9e4-e646b309df69 Spain
	b333577e-9c43-4856-bdb2-0470740cadb6 Netherlands
Environmental
Environmental Information	9AKK108467A6707
Ordering
Order Code US and Canada	XT5DE4600DFF000XXX
E-Number (Norway)	4380447
EAN	8056221006255
Minimum Order Quantity	1 piece
Customs Tariff Number	85362090
Dimensions
Product Net Width	186 mm
Product Net Height	205 mm
Product Net Depth / Length	103.5 mm
Product Net Weight	5.6 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	248 mm
Package Level 1 Height	240 mm
Package Level 1 Depth / Length	285 mm
Package Level 1 Gross Weight	6.088 kg
Package Level 1 EAN	8056221006255
Additional Information
Product Main Type	SACE Tmax XT
Product Name	Moulded Case Circuit Breaker
Product Type	Switch Disconnector
Version	F
CAD Dimensional Drawing	1SDH002065A1183
	1SDH002065A1131
Technical
Electrical Durability	5000 cycle
	60 cycles per hour
Mechanical Durability	20000 cycle
	120 cycles per hour
Number of Poles	4P
Order Multiple	1 piece
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Current AC-23A (I_e)	(400 V) 630 A
	(690 V) 630 A
Rated Operational Voltage	690 V AC
	750 V DC
Rated Short-time Withstand Current Low Voltage (I_cw)	7.6 kA
Rated Uninterrupted Current (I_u)	630 A
Standards	IEC60947-2
Sub-type	XT5
Terminal Connection Type	Front
Certificates and Declarations
Data Sheet, Technical Information	1SDC210100D0206
	1SDC210099D0206
Declaration of Conformity - CE	9AKK107680A2824
Mechanical Drawings	1SDH002011A1101
Wiring Diagram	1SDM000005A1001
Instructions and Manuals	1SDH002011A1001
External Classifications and Standards
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
Object Classification Code	Q
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
eClass	V11.1 : 27371403

ETIM for 1SDA100549R1 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as maintenance-/service switch (EF006986)

Feature valueNo

Feature nameVersion as safety switch (EF006985)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameVersion as reversing switch (EF009408)

Feature valueNo

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value690 V

Feature nameRated operating voltage (EF001435)

Feature value0 V

Feature nameRated short-time withstand current lcw (EF007050)

Feature value7.6 kA

Feature nameNumber of poles (EF001391)

Feature value4

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameMotor drive optional (EF007386)

Feature valueYes

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVoltage release optional (EF007491)

Feature valueYes

Feature nameDevice construction (EF008240)

Feature valueBuilt-in device fixed built-in technique

Feature nameSuitable for front mounting 4-hole (EF007247)

Feature valueNo

Feature nameSuitable for front mounting centre (EF007248)

Feature valueNo

Feature nameSuitable for distribution board installation (EF007262)

Feature valueYes

Feature nameSuitable for intermediate mounting (EF007264)

Feature valueNo

Feature nameColour control element (EF007167)

Feature valueWhite

Feature nameType of control element (EF006976)

Feature valueToggle

Feature nameInterlockable (EF006281)

Feature valueYes

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameDegree of protection (IP), front side (EF003118)

Feature valueIP20

Feature nameDegree of protection (NEMA) (EF011959)

Feature value4

DATASHEET - PDF

Title

Size

Type

PDF CATALOG ABB TMAX XT EN

70 Mbytes
