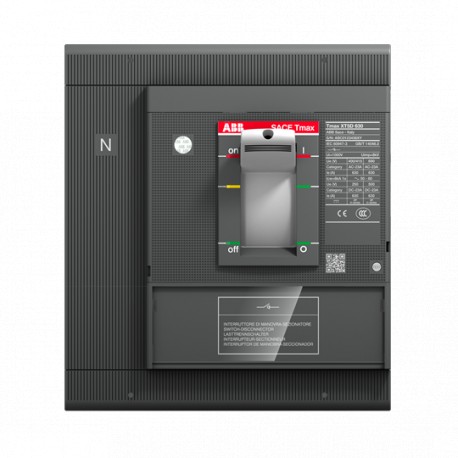

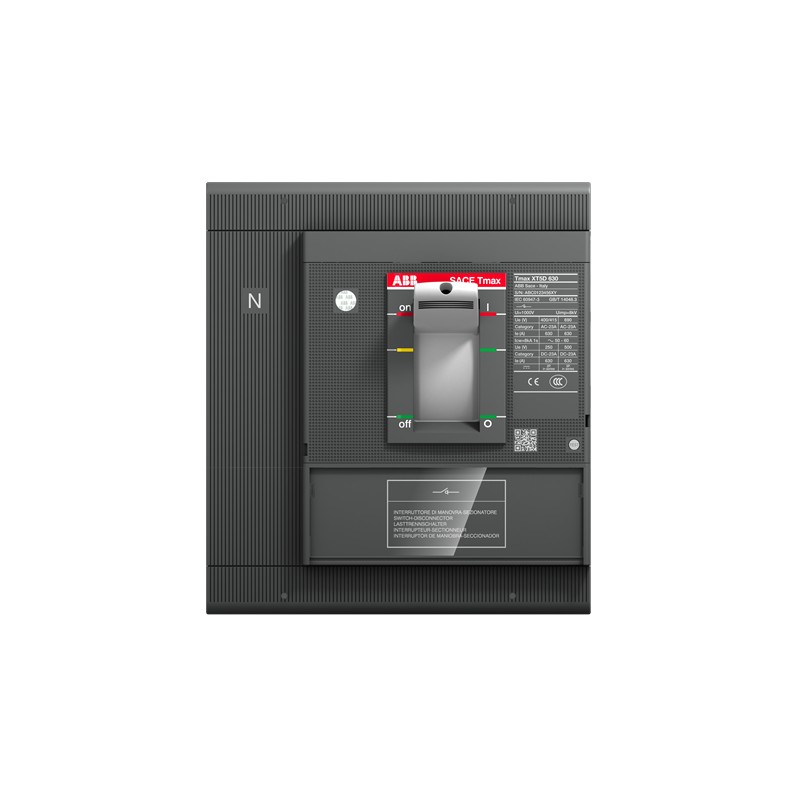

1SDA100548R1 ABB XT5D 400 4p F F
1SDA100548R1
ABB
XT5D 400 4p F F
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3d18b1f4-4d08-4643-b3a9-f7162aec4b52 Italy |
| Simplified SCIP | 515fae19-d5a1-4c9d-bfd5-7150013e78dc France |
| f9fcc9e8-e30d-4774-ba61-0f244abb42a7 Greece | |
| 38d310c0-63d4-4423-9a8d-799701e9ca16 Germany | |
| 60ce7c87-9c46-4138-a2c3-1753a7ef888e Finland | |
| b77336b9-c285-4ec0-8eae-329474e23b67 Hungary | |
| 63601c75-41ed-4206-80a2-7de275c81b81 Netherlands | |
| 0a555105-8471-4a70-af4c-8b07c080eba2 Sweden | |
| 71e0c04e-df95-48f8-801f-e507c7e0619a Germany | |
| 015b7f0b-579a-4f74-ad7a-f1dd6bee7108 Portugal | |
| f38f9f6c-2841-48ff-a64b-ccfc16d80025 Germany | |
| 91ee2f17-828a-4814-94a3-bc834f0ad9bc Poland | |
| 015b7f0b-579a-4f74-ad7a-f1dd6bee7108 Portugal | |
| f9fcc9e8-e30d-4774-ba61-0f244abb42a7 Greece | |
| a9445c33-1800-49bd-ad8f-ddbfac187b18 Germany | |
| 84f1e865-66ae-4e00-a5ed-44780ad5ea77 Poland | |
| f38f9f6c-2841-48ff-a64b-ccfc16d80025 Germany | |
| 71e0c04e-df95-48f8-801f-e507c7e0619a Germany | |
| e136e2ce-35f6-456f-afb9-2c2388c709ab Spain | |
| aae2e110-77ea-4db8-977b-3bc59204476d France | |
| f19452ee-00f8-448d-b689-7cc7915a2713 Hungary | |
| b77336b9-c285-4ec0-8eae-329474e23b67 Hungary | |
| 61217bed-bf27-4dce-91e9-e73db4756400 Estonia | |
| aae2e110-77ea-4db8-977b-3bc59204476d France | |
| 91ee2f17-828a-4814-94a3-bc834f0ad9bc Poland | |
| f19452ee-00f8-448d-b689-7cc7915a2713 Hungary | |
| c4b6826b-b6bf-4324-9e05-0f2a9ece7770 Croatia | |
| ec7e07d3-f738-4f6d-a734-bec5320ab392 Czech Republic | |
| 63601c75-41ed-4206-80a2-7de275c81b81 Netherlands | |
| c17f2616-f7a6-4bcb-99bc-80d9a985600e Bulgaria | |
| 515fae19-d5a1-4c9d-bfd5-7150013e78dc France | |
| 01bac6da-cdc9-40cb-a0e7-8a534c2bbe67 Sweden | |
| aa3e606e-eb21-4e5b-9b99-47c77fc221dd Poland | |
| 0a555105-8471-4a70-af4c-8b07c080eba2 Sweden | |
| e136e2ce-35f6-456f-afb9-2c2388c709ab Spain | |
| 34ca218e-e643-435f-8571-3b099d355aba Belgium | |
| 61217bed-bf27-4dce-91e9-e73db4756400 Estonia | |
| 0746af35-681d-4bc2-b5ec-4609e3a0eaa2 Belgium | |
| 60ce7c87-9c46-4138-a2c3-1753a7ef888e Finland | |
| 38d310c0-63d4-4423-9a8d-799701e9ca16 Germany | |
| f2d07ccb-a874-4b5f-ba1e-270431a75952 Germany | |
| 01bac6da-cdc9-40cb-a0e7-8a534c2bbe67 Sweden | |
| a9445c33-1800-49bd-ad8f-ddbfac187b18 Germany | |
| ec7e07d3-f738-4f6d-a734-bec5320ab392 Czech Republic | |
| aa3e606e-eb21-4e5b-9b99-47c77fc221dd Poland | |
| 34ca218e-e643-435f-8571-3b099d355aba Belgium | |
| 1f9ccb0e-bbd8-4434-98fe-32035a458f6d Norway | |
| 0746af35-681d-4bc2-b5ec-4609e3a0eaa2 Belgium | |
| f2d07ccb-a874-4b5f-ba1e-270431a75952 Germany | |
| b9837d3d-eb64-4f6d-97db-ee272ad708b0 Denmark | |
| c17f2616-f7a6-4bcb-99bc-80d9a985600e Bulgaria | |
| b9837d3d-eb64-4f6d-97db-ee272ad708b0 Denmark | |
| 84f1e865-66ae-4e00-a5ed-44780ad5ea77 Poland | |
| 1f9ccb0e-bbd8-4434-98fe-32035a458f6d Norway | |
| c4b6826b-b6bf-4324-9e05-0f2a9ece7770 Croatia | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5DE440ADFF000XXX |
| E-Number (Norway) | 4380446 |
| EAN | 8056221006248 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.088 kg |
| Package Level 1 EAN | 8056221006248 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1183 |
| 1SDH002065A1131 | |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-23A (Ie) | (400 V) 400 A |
| (690 V) 400 A | |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Uninterrupted Current (Iu) | 400 A |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated short-time withstand current lcw (EF007050) | 5 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
