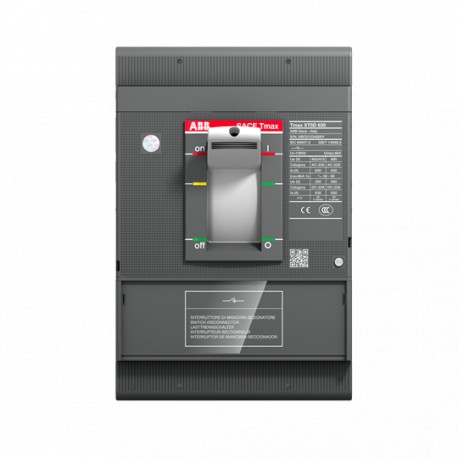

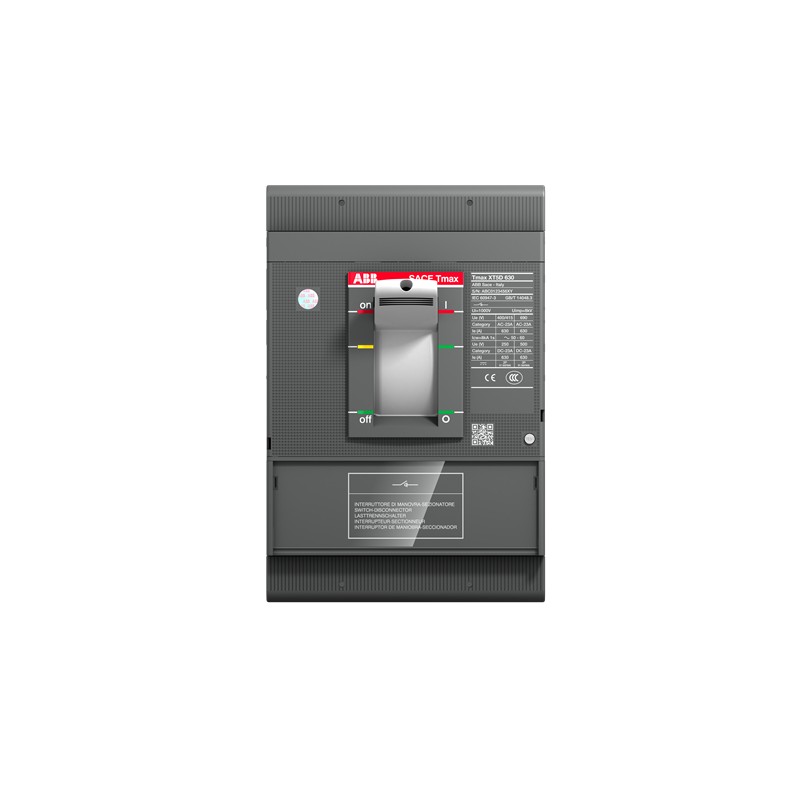

1SDA100547R1 ABB XT5D 630 3p F F
1SDA100547R1
ABB
XT5D 630 3p F F
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 0e69743b-711a-45a9-93c8-7185b7a4612c Italy |
| Simplified SCIP | b40772c6-8fcf-4be5-b6f1-881ee30c0968 Finland |
| 56534752-6c58-483b-bd57-5ba8cc14644e Sweden | |
| a7649ca6-00a0-4a31-a7db-1a83c72e37d8 Netherlands | |
| d88254a4-e2e1-4787-be52-7878e54a6eba Estonia | |
| cdc638e9-081d-43a0-bbe8-29e2bd487a8c Belgium | |
| b3d37582-0f05-4519-bc2b-8578b64bf404 Spain | |
| fca9bacb-174f-4e06-9980-5b79f356a670 Sweden | |
| 03c0335c-f2ec-4e48-96c6-f1ba7d97ec22 Poland | |
| e8fa2138-31ca-4be2-82d4-41b5a7331dd2 France | |
| 3ccb7bdc-d700-458e-8f1c-ce6634162c1e Germany | |
| 56534752-6c58-483b-bd57-5ba8cc14644e Sweden | |
| 45d7c2ad-8367-461e-b2c6-709d61cc0724 Bulgaria | |
| a7649ca6-00a0-4a31-a7db-1a83c72e37d8 Netherlands | |
| 9d5f2d4b-bc3b-4b02-823b-b42967f28fee Czech Republic | |
| d88254a4-e2e1-4787-be52-7878e54a6eba Estonia | |
| 05df06ac-5a09-4255-8186-5b005bb09b84 Hungary | |
| 0da94c7c-ac6c-466f-a698-bb62ffcc0044 Poland | |
| 6b38367c-519e-49ab-aaa5-c9b5317487f2 France | |
| 13cf62a1-fe9e-4380-9ab4-c80e61140867 Hungary | |
| f5c031e8-b9c5-4c77-b72f-ace7bf57a0c6 Portugal | |
| b965f448-3306-4158-b355-797a3909cbb4 Greece | |
| 053d16ba-28c8-4dbf-96aa-02a68d4a2617 Germany | |
| 0da94c7c-ac6c-466f-a698-bb62ffcc0044 Poland | |
| 7c47e165-e7e8-4fca-a4df-86b6651a28b1 Poland | |
| 4d025deb-e04a-4239-a8bd-fd376799cd79 Belgium | |
| 053d16ba-28c8-4dbf-96aa-02a68d4a2617 Germany | |
| 11a26f20-49f6-427d-a4e2-ade82aa6a1de Germany | |
| fca9bacb-174f-4e06-9980-5b79f356a670 Sweden | |
| 0f3a0965-30b2-4139-b569-b4378d4c7c50 Germany | |
| b40772c6-8fcf-4be5-b6f1-881ee30c0968 Finland | |
| 03c0335c-f2ec-4e48-96c6-f1ba7d97ec22 Poland | |
| 9d5f2d4b-bc3b-4b02-823b-b42967f28fee Czech Republic | |
| 7c47e165-e7e8-4fca-a4df-86b6651a28b1 Poland | |
| 35999a4a-7ed8-4bcb-b6d2-40acb568b52b Denmark | |
| 35999a4a-7ed8-4bcb-b6d2-40acb568b52b Denmark | |
| 45d7c2ad-8367-461e-b2c6-709d61cc0724 Bulgaria | |
| cdc638e9-081d-43a0-bbe8-29e2bd487a8c Belgium | |
| 4d025deb-e04a-4239-a8bd-fd376799cd79 Belgium | |
| 30464ef4-5929-4a47-bc73-364a944c5963 Norway | |
| 11a26f20-49f6-427d-a4e2-ade82aa6a1de Germany | |
| b3d37582-0f05-4519-bc2b-8578b64bf404 Spain | |
| 14721188-6270-4f26-a809-4351d3678967 Germany | |
| 13cf62a1-fe9e-4380-9ab4-c80e61140867 Hungary | |
| 6b38367c-519e-49ab-aaa5-c9b5317487f2 France | |
| d59b8845-f9ea-42a4-89a0-301e1eef4f17 Croatia | |
| 14721188-6270-4f26-a809-4351d3678967 Germany | |
| f5c031e8-b9c5-4c77-b72f-ace7bf57a0c6 Portugal | |
| 3ccb7bdc-d700-458e-8f1c-ce6634162c1e Germany | |
| 05df06ac-5a09-4255-8186-5b005bb09b84 Hungary | |
| b965f448-3306-4158-b355-797a3909cbb4 Greece | |
| 30464ef4-5929-4a47-bc73-364a944c5963 Norway | |
| d59b8845-f9ea-42a4-89a0-301e1eef4f17 Croatia | |
| e8fa2138-31ca-4be2-82d4-41b5a7331dd2 France | |
| 0f3a0965-30b2-4139-b569-b4378d4c7c50 Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5DE3600DFF000XXX |
| E-Number (Norway) | 4380322 |
| EAN | 8056221006231 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221006231 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-23A (Ie) | (400 V) 630 A |
| (690 V) 630 A | |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 7.6 kA |
| Rated Uninterrupted Current (Iu) | 630 A |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 0 V |
| Rated short-time withstand current lcw (EF007050) | 7.6 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | White |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 4 |
