ABBMolded case "Isomax-Tmax"1SDA100546R1 ABB XT5D 400 3p F F

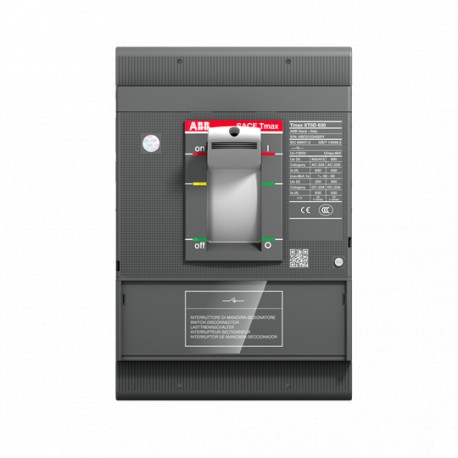

ABB 1SDA100546R1 1SDA100546R1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA100546R1 ABB XT5D 400 3p F F

Reference: 1SDA100546R1

Manufacturer: ABB

Description:

XT5D 400 3p F F

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 751,76 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2353
Environmental Product Declaration - EPD9AKK108468A9746
9AKK108468A1893
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 59.6 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP045f2cf1-be91-4bcd-b731-887c182e83ea Italy
Simplified SCIP01556332-ded2-46e1-9b05-5bac73208121 Germany
eca2a49d-5ad5-4433-9d0b-ae19f16d4e1e Netherlands
dffb741f-f5c2-479b-9106-31c31ef4ba06 Spain
6db88e9e-6479-44af-b0b8-e0992f955076 Netherlands
258fdcfb-4302-4ea1-a8a1-7f689f5848a9 Germany
b76a69cc-0ba2-4ce6-a88f-d186d6966edb Poland
33c28849-7754-420d-b8c6-f0ccd6b8478a Norway
22dbb777-bf42-4d24-b54c-a33d1ef48256 Finland
cc90bdc9-48d5-47fe-8df3-adfc2441d412 Netherlands
bf889582-80b0-49a5-9d4a-da0ae1270d58 Germany
920585fb-c0f9-4371-9465-4fdf58eb943c Denmark
2da870f5-97d8-4cab-8f69-149222185209 Croatia
bc285540-b9a2-4b97-b115-6f6facc2c63a Czech Republic
2bc3ddfb-c0b7-4ba1-832a-334db1e85f80 Poland
ae596363-cc3a-4281-ab4b-bdd592d898ba Netherlands
105bada4-2430-485d-b15c-1103f09a8efc Netherlands
5b1492c2-10b7-4d22-a2ba-8fdff2fc7c60 Estonia
87d124d6-f585-4b1b-b84c-9bf107adccde Portugal
2faf0f7f-1867-4b9d-a79d-316ffcf75e19 Bulgaria
1b48d7d0-a21e-4f4a-90df-4ac8e1dd4efd Sweden
29174ac2-3ba6-4cb6-85b4-21b8b9223727 Poland
f7397b96-d7c2-48ef-b3ad-8111935e8936 France
fc258431-4cd3-4234-a135-b43d565660b3 Sweden
0a5b42b9-53bb-44c0-9816-693d5c0c3532 Greece
6fb9b86c-8590-43e0-916b-4810ed98fa78 Germany
0d8844a6-9003-453b-8076-a44f2f970364 Germany
8fb7fda3-253d-427e-9d0b-e7bf2da3f504 France
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT5DE340ADFF000XXX
E-Number (Norway)4380321
EAN8056221006224
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.775 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.263 kg
Package Level 1 EAN8056221006224
Additional Information
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeSwitch Disconnector
VersionF
CAD Dimensional Drawing1SDH002065A1115
1SDH002065A1131
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Order Multiple1 piece
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-23A (Ie)(400 V) 400 A
(690 V) 400 A
Rated Operational Voltage690 V AC
750 V DC
Rated Short-time Withstand Current Low Voltage (Icw)5 kA
Rated Uninterrupted Current (Iu)400 A
StandardsIEC60947-2
Sub-typeXT5
Terminal Connection TypeFront
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK107680A2824
Mechanical Drawings1SDH002011A1101
Wiring Diagram1SDM000005A1001
Instructions and Manuals1SDH002011A1001
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371403

ETIM for 1SDA100546R1 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueNo
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value690 V
Feature nameRated operating voltage (EF001435)
Feature value0 V
Feature nameRated short-time withstand current lcw (EF007050)
Feature value5 kA
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueYes
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueYes
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueWhite
Feature nameType of control element (EF006976)
Feature valueToggle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameDegree of protection (NEMA) (EF011959)
Feature value4

DATASHEET - PDF
