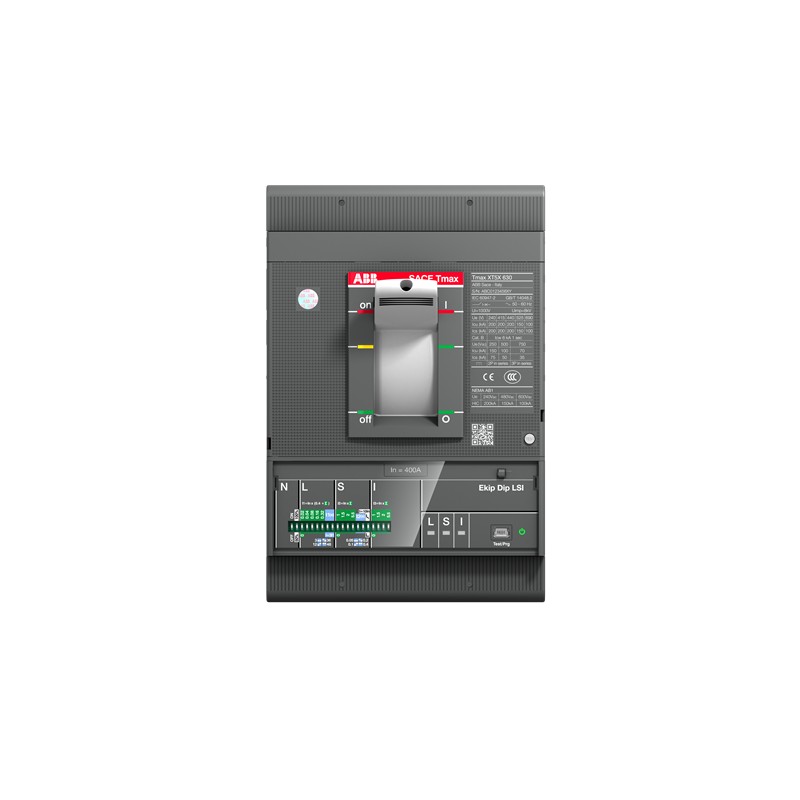

1SDA100507R1 ABB XT5H 400 Ekip M Dip LIU In 320A 3p F F
1SDA100507R1
ABB
XT5H 400 Ekip M Dip LIU In=320A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2354 |
| Environmental Product Declaration - EPD | 9AKK108468A1899 |
| 9AKK108468A9748 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 114b50fa-34d8-4d8a-876b-66e39e290944 China |
| Simplified SCIP | d0e3a6a2-6979-42b3-8ec4-1802081f8922 Estonia |
| 4777ee98-824d-43f8-84e6-7d39bc8a1a12 Greece | |
| 2db13e2b-4451-48a3-81ba-52af7d5a02f4 France | |
| 0f9eb450-1878-412c-b9d0-7d0ce0bd976d Germany | |
| 977ed4bf-2856-4d01-bcb7-012f1ef902d1 Bulgaria | |
| a059741d-7e87-4a52-a4e1-84aee8f08682 Poland | |
| fbd5a3e8-bc0b-4fbe-baf7-b9ac48dd1311 France | |
| a868a7a3-33e6-45f4-be82-7336dee86d92 Sweden | |
| 192e14a4-6fbe-4576-a190-c110ae1dabe3 Belgium | |
| 655e4bf3-2d85-4035-8413-d9d4b6c28bbc Germany | |
| a7b6b12a-3054-40bc-a434-1231dc05547e Hungary | |
| b69e8db4-669e-43a6-8c83-f5df7571f759 Netherlands | |
| 0741dec0-7c72-415d-ae6a-393327be2e12 Poland | |
| 0126a300-9c81-46da-9d1c-4544081e7a0e Sweden | |
| 329cf1e4-6210-4b63-bb6c-0ce96b2dcea2 Germany | |
| 35195ae3-fd3f-4984-bbc1-ead74404ca32 Norway | |
| 7e81b9bd-7859-47ed-b24f-80ab4bde4fe3 Czech Republic | |
| f0dd6e6f-ea9f-45e8-979f-62b8a18b2aac Croatia | |
| e267858c-e299-4b19-a0c4-1c8206b421ce Finland | |
| 73df3fbd-a7d5-4924-9952-61f093ad96fe Poland | |
| f7ec23eb-07b4-434b-80f6-6aa4a4935996 Denmark | |
| 1cef7cab-bdf3-4447-ab20-d6540bc35923 Spain | |
| 14a0e970-a580-42ac-a83a-89c097efca2d Germany | |
| 36ae165f-34d6-46d3-a6bc-6c6effc41ca2 Hungary | |
| bff0281c-494f-4be7-b38b-85ca7ed1d29c Germany | |
| 792f27bd-df2f-4346-a2cf-722ac9e72ce0 Portugal | |
| 366a39a0-b16b-4fd3-bf30-67bfa9741258 Belgium | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5HE332ALFF000XXX |
| E-Number (Norway) | 4380314 |
| EAN | 8056221005845 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.82 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.308 kg |
| Package Level 1 EAN | 8056221005845 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 11.6 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | Ekip M Dip LIU |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 320 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 128.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1920 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA100507R1 1SDA100507R1 EN_1SDA100507R1.pdf | 408 Kbytes |
|
