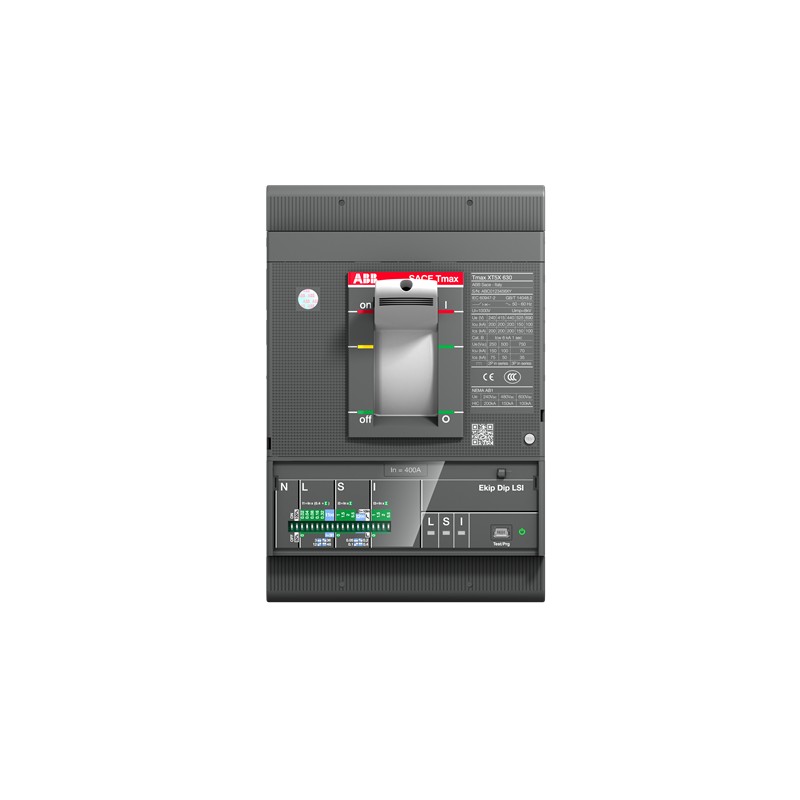

1SDA100505R1 ABB XT5H 630 Ekip M Dip I In 630A 3p F F
1SDA100505R1
ABB
XT5H 630 Ekip M Dip I In=630A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2354 |
| Environmental Product Declaration - EPD | 9AKK108468A1899 |
| 9AKK108468A9748 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | d73eb91b-7335-45c1-a49a-48d035485e16 Italy |
| Simplified SCIP | 42d53850-9b3d-43e4-8ec5-abdc1823894a Germany |
| 56551508-56e0-471d-bac9-9b5af1cf87b7 Netherlands | |
| aafd1c1c-f287-497d-8811-83830b611810 Norway | |
| 4e5e6d30-1cf4-4540-8a27-ee36582b698b Finland | |
| 09b69543-83a6-4adf-b6a1-bdd994fe9eb2 Netherlands | |
| 63bb8b69-7101-4b6c-bfa3-fe8d0939880a Germany | |
| 4aa55ea3-81da-4709-8502-35b3f94d0e9e Denmark | |
| 3ea81719-e2d5-4abd-8f9c-609348f1d0df Germany | |
| 48d210ea-1960-4ca6-9672-cfd9f9fa9445 Croatia | |
| 3c71650f-85fa-4d52-b3d9-b1c3401c9213 Czech Republic | |
| b16729a5-1fc1-4558-9e72-78438289b5f0 Poland | |
| 9896a90b-5046-4e8e-8c53-bdc9377a86fa Netherlands | |
| 8ee5272b-700c-46e3-bf94-02d4261478ad Netherlands | |
| 9c1a0447-d8b8-4237-8c40-46c58c64a5ef Estonia | |
| 3c45aed8-e15f-44dd-810f-ffc875ab3976 Portugal | |
| 1e1ebfc8-cc31-4032-a61a-3308b0d4a538 Bulgaria | |
| ca518072-b4eb-422a-9003-9b2e49303943 Sweden | |
| a380f237-8094-4538-8f2a-744bebc6dab9 Poland | |
| ca8ef332-cdda-42dc-afd0-9200f4901f3f France | |
| dd31c244-20ca-4aab-99a2-5fe86a0fc9f8 Sweden | |
| 89ea540b-1bc1-430b-8c16-d26dcc3db19c Greece | |
| 6062d324-caee-40f5-ad14-90df6bf86d63 Germany | |
| 115bc527-1e54-4277-a8fd-71dcd666ca7a Germany | |
| 2337b68e-45ed-45cd-988b-5f0ca7fab1c2 France | |
| e88c7d9a-dc71-4fe8-b5a6-1c6fabec3c9b Netherlands | |
| 73a8a9a1-8fbd-42b6-833c-c255d3b3de55 Spain | |
| 5a144823-ae7f-4e99-940a-1203eef0c3e4 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5HE363BKFF000XXX |
| E-Number (Norway) | 4380312 |
| EAN | 8056221005821 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.82 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.308 kg |
| Package Level 1 EAN | 8056221005821 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 45 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | Ekip M Dip I |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 630 A |
| Rated voltage (EF003977) | 690 V |
| Adjustment range short-term delayed short-circuit release (EF007129) | 378.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 630 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
