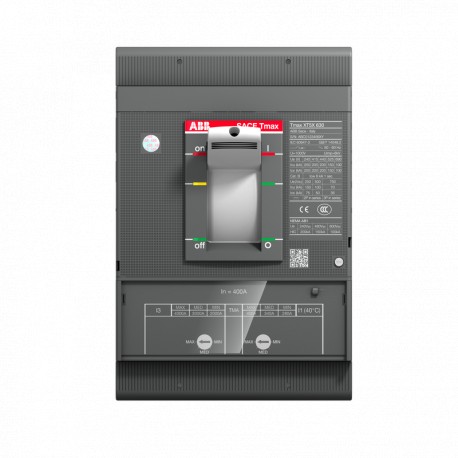

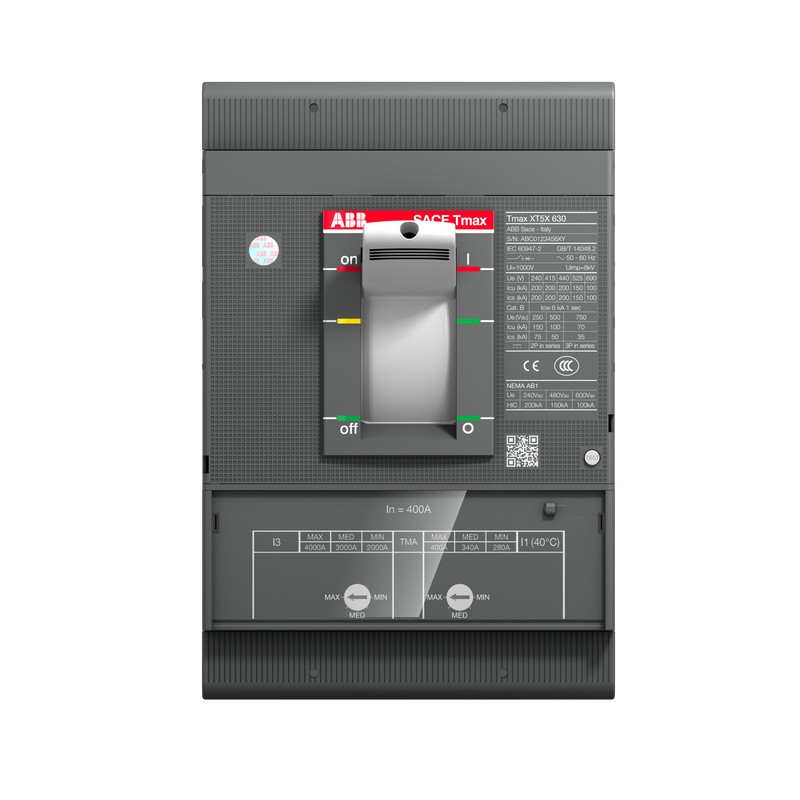

1SDA100485R1 ABB XT5H 400 TMA 400-4000 3p F F
1SDA100485R1
ABB
XT5H 400 TMA 400-4000 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | eb07f965-ea45-4611-b2dc-2aca90afab2a Italy |
| Simplified SCIP | 5279322e-442d-4c06-8eb1-515b13fb1a53 Denmark |
| b744bf9b-9589-49ce-9754-7227faec45e1 Bulgaria | |
| 18aaedfa-32d2-447f-a96c-380cc89bd7c8 Germany | |
| 72f9933a-19d6-478c-9490-6dba63467d32 Poland | |
| 33f269e6-5bbf-4030-add5-a992ffe6ce28 France | |
| 27c5567b-aee6-4608-9e6a-d634c0513b20 Hungary | |
| c277cb49-0974-41e6-af91-ec1e3f37ba5a Spain | |
| bb825e3e-2fdb-46d3-96d4-fa029541d8db Germany | |
| 7096bd41-5a21-4259-b4ea-d2c5f8a363d9 Germany | |
| 27c5567b-aee6-4608-9e6a-d634c0513b20 Hungary | |
| c17ed599-cceb-4742-b73e-d9642513b3f3 Hungary | |
| 8a558769-5f1a-4b60-8301-4b07766da9d1 Estonia | |
| 59ec9e82-3a70-4630-a378-90a55afaec17 Poland | |
| 33f269e6-5bbf-4030-add5-a992ffe6ce28 France | |
| b744bf9b-9589-49ce-9754-7227faec45e1 Bulgaria | |
| 45b43059-6d00-4b20-b10c-5986eb9b6a76 Czech Republic | |
| b0935164-1a53-4f7c-9800-678e8e6b6e53 Netherlands | |
| 9b705169-306b-4a98-9a03-2ceb1e2c8b52 Croatia | |
| 7096bd41-5a21-4259-b4ea-d2c5f8a363d9 Germany | |
| 5330c927-5c8a-43e5-8466-464db38d64af Sweden | |
| 092475b6-601d-4c55-8ce9-73d20b16ee87 Poland | |
| b2e33a6c-3d00-4900-8042-0422920dacaf France | |
| 463d0754-2c2d-425d-88eb-5b0dd60e4309 Sweden | |
| c277cb49-0974-41e6-af91-ec1e3f37ba5a Spain | |
| 0f1bf45a-473e-4799-8904-0f22bf26f954 Belgium | |
| 8a558769-5f1a-4b60-8301-4b07766da9d1 Estonia | |
| e2dca9c8-3f7b-490c-9477-148e1805e6ed Belgium | |
| c2d0ac00-b879-4233-9f39-4ba106a7d958 Finland | |
| 0daa9163-4bdc-47e1-aa1c-9426f7a25831 Germany | |
| 18aaedfa-32d2-447f-a96c-380cc89bd7c8 Germany | |
| 463d0754-2c2d-425d-88eb-5b0dd60e4309 Sweden | |
| fb9fc6ff-7ea5-46e9-9ce1-0bbea573b245 Germany | |
| 092475b6-601d-4c55-8ce9-73d20b16ee87 Poland | |
| 45b43059-6d00-4b20-b10c-5986eb9b6a76 Czech Republic | |
| 0f1bf45a-473e-4799-8904-0f22bf26f954 Belgium | |
| b359e681-3116-4416-9d6d-4b0883fe42de Norway | |
| e2dca9c8-3f7b-490c-9477-148e1805e6ed Belgium | |
| fb9fc6ff-7ea5-46e9-9ce1-0bbea573b245 Germany | |
| c2d0ac00-b879-4233-9f39-4ba106a7d958 Finland | |
| 68146c44-e183-41ad-b2c4-e7b8f7adbaa6 Greece | |
| b2e33a6c-3d00-4900-8042-0422920dacaf France | |
| 0daa9163-4bdc-47e1-aa1c-9426f7a25831 Germany | |
| 9b705169-306b-4a98-9a03-2ceb1e2c8b52 Croatia | |
| b359e681-3116-4416-9d6d-4b0883fe42de Norway | |
| 72f9933a-19d6-478c-9490-6dba63467d32 Poland | |
| 5279322e-442d-4c06-8eb1-515b13fb1a53 Denmark | |
| bb825e3e-2fdb-46d3-96d4-fa029541d8db Germany | |
| 5330c927-5c8a-43e5-8466-464db38d64af Sweden | |
| b0935164-1a53-4f7c-9800-678e8e6b6e53 Netherlands | |
| b741a83e-f902-4280-ab31-6a10009ed5cd Portugal | |
| c17ed599-cceb-4742-b73e-d9642513b3f3 Hungary | |
| 59ec9e82-3a70-4630-a378-90a55afaec17 Poland | |
| b741a83e-f902-4280-ab31-6a10009ed5cd Portugal | |
| 68146c44-e183-41ad-b2c4-e7b8f7adbaa6 Greece | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5HE340ABFF000XXX |
| E-Number (Norway) | 4380296 |
| EAN | 8056221005623 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221005623 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 24.1 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 2000…4000 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (240 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (525 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 2 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 280…400 A |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 400 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 160.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 2000 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
