1SDA100478R1
ABB
1

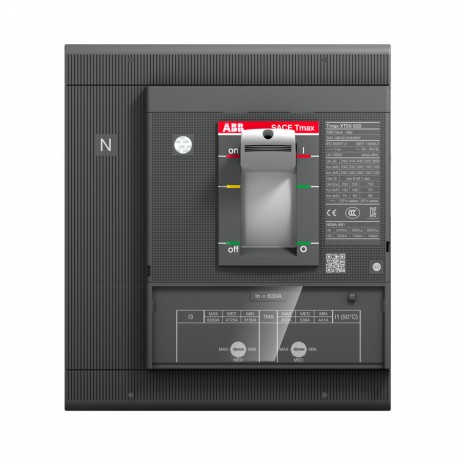

C.BREAKER TMAX XT5S 630 FIXED WITH FRONT TERMINALS AND SOLID-STATE THERMOMAGNETIC RELEASE TMG R 500 I3=1250...2500 A FULLY RATED NEUTRAL
Molded case "Isomax-Tmax"
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
b'
XT5S 630 TMG 500-2500 4p F F In=100%In
1SDA100478R1
8056221005555
XT5S 630 TMG 500-2500 4p F F In=100%In
C.BREAKER TMAX XT5S 630 FIXED WITH FRONT TERMINALS AND SOLID-STATE THERMOMAGNETIC RELEASE TMG R 500 I3=1250...2500 A FULLY RATED NEUTRAL
8056221005555
1 piece
85362090
186 mm
205 mm
103.5 mm
5.6 kg
1 piece
250 mm
245 mm
285 mm
6.088 kg
8056221005555
Generator Protection
AC/DC
120 cycles per hour
5000 cycle
240 cycles per hour
20000 cycle
4
1 piece
33.5 W
SACE Tmax XT
Moulded Case Circuit Breaker
CB
500 A
8 kV
1250…2500 A
1000 V
690 V AC
750 V DC
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 7.5 kA
(500 V DC) 2 Poles in Series 7.5 kA
6 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 30 kA
(500 V DC) 2 Poles in Series 30 kA
630 A
TMG
TM
350…500 A
S
IEC 60947
XT5
Fixed Circuit-Breakers
F
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Q
5. Small Equipment (No External Dimension More Than 50 cm)
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MOLDED CASE ISOMAX-TMAX EN.pdf | 25 Mbytes |
