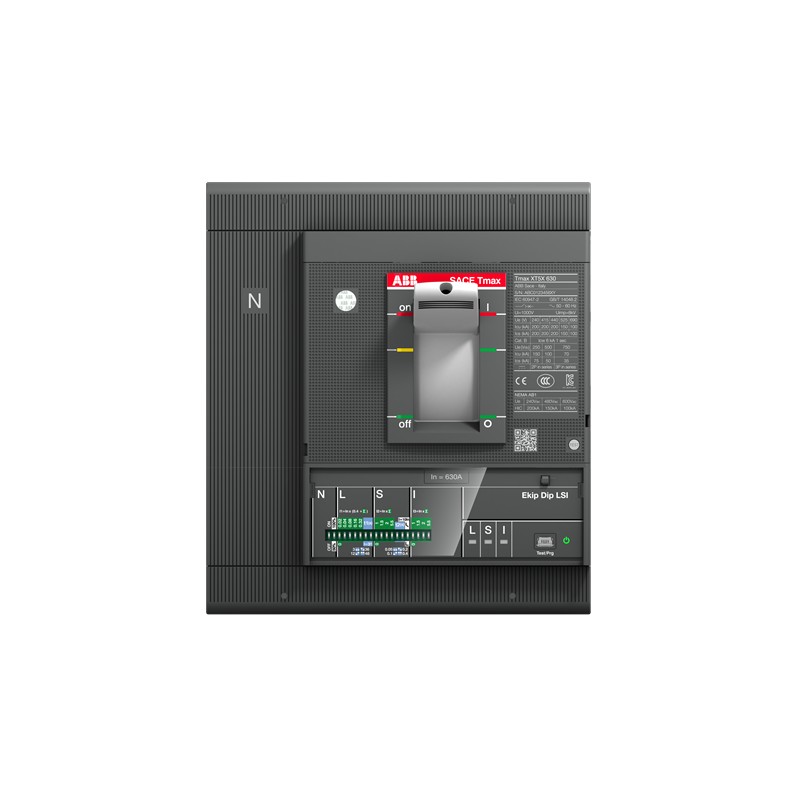

1SDA100467R1 ABB XT5S 630 Ekip Dip LS/I In 630 4p F F
1SDA100467R1
ABB
XT5S 630 Ekip Dip LS/I In=630 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2354 |
| Environmental Product Declaration - EPD | 9AKK108468A1899 |
| 9AKK108468A9748 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 836529eb-74c9-4dd0-b3f3-9944f75b70ff Italy |
| Simplified SCIP | 9941355a-c94a-4804-8a0a-b270027b0cf6 Belgium |
| 137044b9-d3ba-4c3b-9878-661ba0df02d8 Finland | |
| 12bd3db4-5714-4300-af38-c6df4e2ee9c8 Germany | |
| be9425a7-4327-4a5a-aa97-c50c818da1c0 Germany | |
| 54fc74ab-af64-498d-a7a8-a0468b53b9d5 Poland | |
| fa8b5c78-842d-4a27-bd7c-82708447be33 Denmark | |
| 6bc01d12-05aa-4906-80b5-8028ee744a4f Germany | |
| 37934511-d407-4ef8-8dd0-9c22bcb10683 Czech Republic | |
| ac4a63ad-119d-43c2-8467-e730b1b91ac7 Poland | |
| 55f030cb-486b-40f9-8f36-43f9b2cedc2a Croatia | |
| 2c8398e9-b72c-4c08-acda-7d56445df17a Netherlands | |
| 67ed9b1f-1c0d-4b6b-88c5-6845ffb5f12e Germany | |
| c75a5d15-b546-42d5-8419-6239b374f856 France | |
| 3cbb813e-2aaf-4506-be49-ee464665e949 Sweden | |
| f255b1fa-f095-457a-bdf8-c7326fab7314 Sweden | |
| 94ee46b7-43b8-4221-87fc-7d832c926182 Poland | |
| 43e4fd24-2cfe-4dd9-a6e5-2294068f150f Belgium | |
| 68729711-0ff3-4cbb-b4b7-cc650e77c5c7 Spain | |
| 20dc6c11-373d-4e4e-b3d9-db59cfc70cd2 France | |
| 0052f38b-2d4b-40c8-bc9f-7330c439f7a4 Hungary | |
| b4a16ebc-fff4-401d-9ed9-7841bb2633b6 Germany | |
| 6d121e2d-6110-48e8-894c-8f813919086d Hungary | |
| 3160011b-3986-4ca8-8c63-b4f8c5e200a4 Norway | |
| 9625d679-f1a4-48f9-8b43-9a1799bf3ed6 Bulgaria | |
| 0d4fa30d-f0ea-4738-8a1d-1353b9e95f83 Portugal | |
| 49388295-8d2b-4e2b-bcd1-7e671d93f711 Estonia | |
| c98a053f-6c9a-4d7c-8535-77ab884a2e0b Greece | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5SE463BEFF000XXX |
| E-Number (Finland) | 3641347 |
| E-Number (Norway) | 4380421 |
| EAN | 8056221005449 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 6.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.888 kg |
| Package Level 1 EAN | 8056221005449 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1183 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | 45 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 630 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 252.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 630 A |
| Adjustment range undelayed short-circuit release (EF007131) | 630 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
