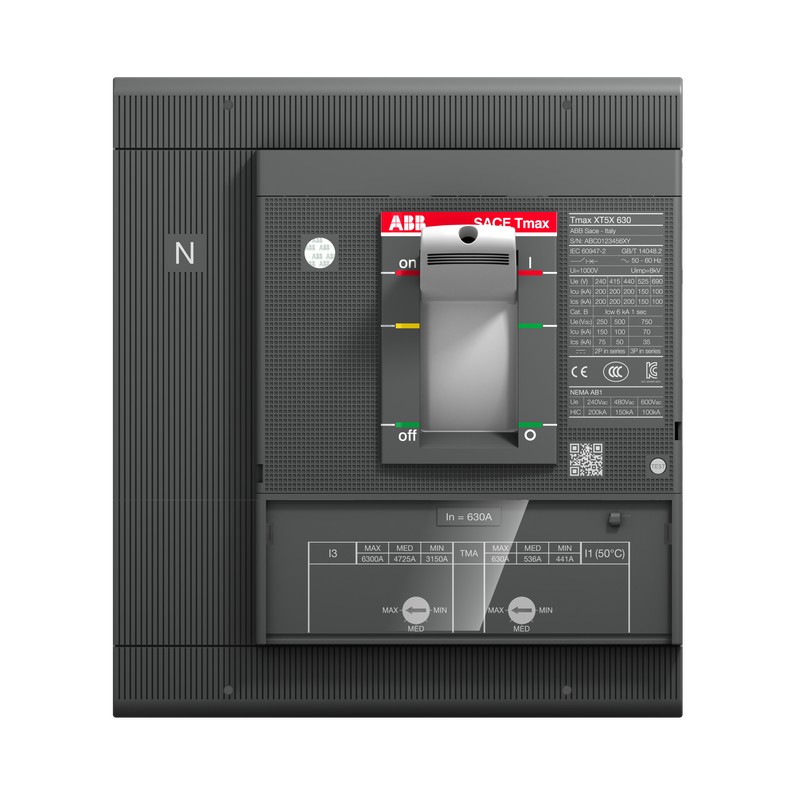

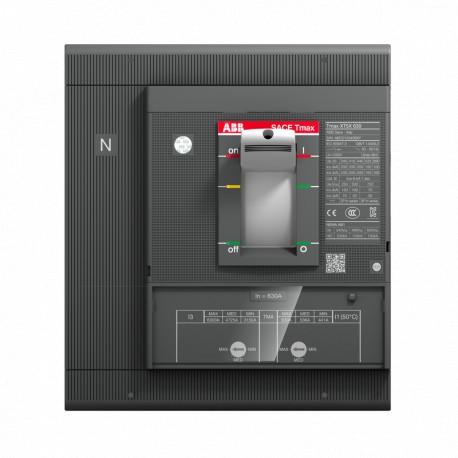

1SDA100455R1 ABB XT5S 400 TMA 400-4000 4p F F InN 100%In
1SDA100455R1
ABB
XT5S 400 TMA 400-4000 4p F F InN=100%In
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c960e597-0757-4e44-8594-dd3e097c0dff Italy |
| Simplified SCIP | 6773bac7-c707-4ea8-bd2c-88e5a4c5699f Belgium |
| 8a9eed6c-a665-4541-9971-1a906a127e67 Belgium | |
| bf9cc6d2-ce8f-4c3f-b2a9-af4c348579a3 Norway | |
| 918d2e35-03e5-4fc0-b7ff-cc203272fbd4 Germany | |
| 0e62e35a-0fa0-4a15-a5ca-c5932e846e3e Bulgaria | |
| 491c4d06-d0a2-40bb-bb0d-8a309b13dc3e Denmark | |
| 97766796-074f-486a-a4bc-2c6c32e89037 Poland | |
| 491c4d06-d0a2-40bb-bb0d-8a309b13dc3e Denmark | |
| e3dc7e2e-6221-40c8-9a4e-def4b09b8ae3 Germany | |
| 918d2e35-03e5-4fc0-b7ff-cc203272fbd4 Germany | |
| eafd6329-1067-4392-9a6f-c73387334cbf Sweden | |
| 9e535112-9657-4789-9870-1d48e1c169ee Poland | |
| e335ee91-eb53-4f48-8da4-17ea6469ae71 Czech Republic | |
| 488c0a6a-0160-4225-b191-55f5e5f13c30 Finland | |
| a70c32b7-a01a-4391-b660-80aa327cef6a Germany | |
| 8a9eed6c-a665-4541-9971-1a906a127e67 Belgium | |
| f3249f9a-9933-45f4-89c1-d22b39eb2845 Greece | |
| 1536f7c2-913b-470a-9026-bb685d9f19c0 Portugal | |
| fddc12cd-3fe4-4645-8eb3-0e719e59e30b Poland | |
| e3dc7e2e-6221-40c8-9a4e-def4b09b8ae3 Germany | |
| 97766796-074f-486a-a4bc-2c6c32e89037 Poland | |
| a70c32b7-a01a-4391-b660-80aa327cef6a Germany | |
| 488c0a6a-0160-4225-b191-55f5e5f13c30 Finland | |
| da637677-4032-4377-8721-dd0d01409172 Croatia | |
| f3249f9a-9933-45f4-89c1-d22b39eb2845 Greece | |
| b1968a66-969c-4921-bb66-f8f331d3019e France | |
| bf9cc6d2-ce8f-4c3f-b2a9-af4c348579a3 Norway | |
| b13e4555-d927-4697-bd57-e391c1768e40 Netherlands | |
| 37da3a0d-8a34-42ad-aa95-94bf755513de Sweden | |
| 51c3e60e-39cf-4634-858b-56f2e109421f Germany | |
| 75e20bb8-7a25-4065-8582-e77be9b8635d Hungary | |
| 1536f7c2-913b-470a-9026-bb685d9f19c0 Portugal | |
| 176a9bd3-fc65-4f7d-8eef-7f6a03e76489 Germany | |
| da637677-4032-4377-8721-dd0d01409172 Croatia | |
| 29683b58-06be-4345-ae88-560a694cb6d4 Spain | |
| 176a9bd3-fc65-4f7d-8eef-7f6a03e76489 Germany | |
| d0a98583-1fbe-4b44-b0f7-29bae05f9ffa France | |
| e11b1643-0384-49b6-8d15-833e83201cbd Hungary | |
| e11b1643-0384-49b6-8d15-833e83201cbd Hungary | |
| fddc12cd-3fe4-4645-8eb3-0e719e59e30b Poland | |
| d0a98583-1fbe-4b44-b0f7-29bae05f9ffa France | |
| e335ee91-eb53-4f48-8da4-17ea6469ae71 Czech Republic | |
| 0e62e35a-0fa0-4a15-a5ca-c5932e846e3e Bulgaria | |
| b13e4555-d927-4697-bd57-e391c1768e40 Netherlands | |
| 75e20bb8-7a25-4065-8582-e77be9b8635d Hungary | |
| ef1f48c5-2b65-4433-84cc-73458ecb144a Estonia | |
| 51c3e60e-39cf-4634-858b-56f2e109421f Germany | |
| 37da3a0d-8a34-42ad-aa95-94bf755513de Sweden | |
| b1968a66-969c-4921-bb66-f8f331d3019e France | |
| eafd6329-1067-4392-9a6f-c73387334cbf Sweden | |
| 9e535112-9657-4789-9870-1d48e1c169ee Poland | |
| 29683b58-06be-4345-ae88-560a694cb6d4 Spain | |
| 6773bac7-c707-4ea8-bd2c-88e5a4c5699f Belgium | |
| ef1f48c5-2b65-4433-84cc-73458ecb144a Estonia | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5SE440ABFF000XXX |
| E-Number (Norway) | 4380415 |
| EAN | 8056221005326 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.088 kg |
| Package Level 1 EAN | 8056221005326 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1183 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | 24.1 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 2000…4000 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 30 kA | |
| (500 V DC) 2 Poles in Series 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 35 kA | |
| (500 V DC) 2 Poles in Series 35 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 280…400 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 400 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 160.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 2000 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
