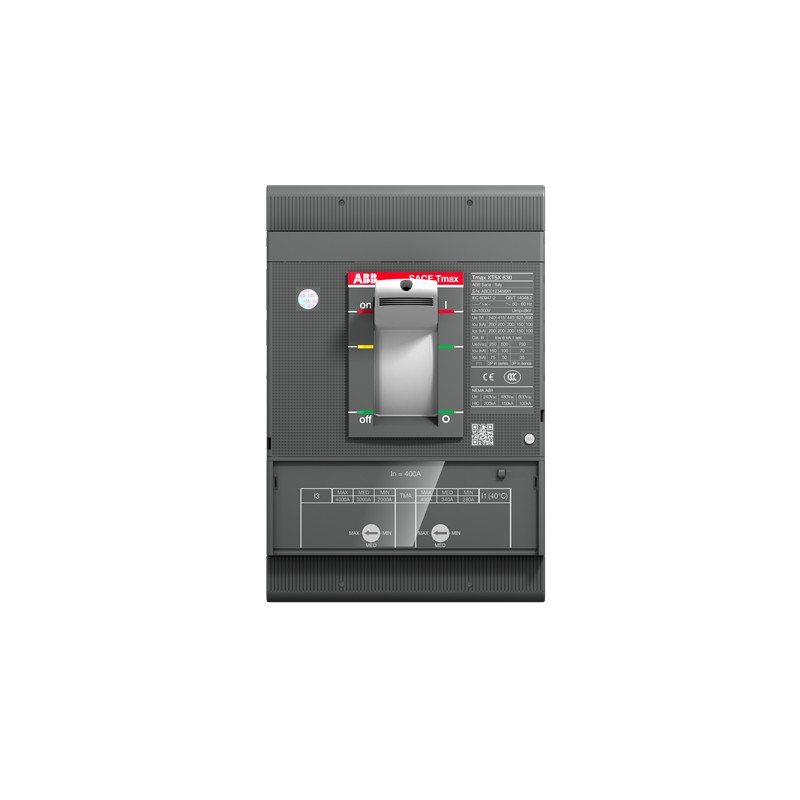

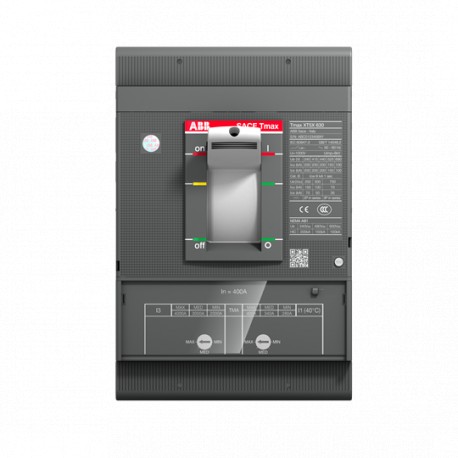

1SDA100436R1 ABB XT5S 630 MA 500-5000 3p F F
1SDA100436R1
ABB
XT5S 630 MA 500-5000 3p F F
C.BREAKER TMAX XT5S 630 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE MA R 500 I3=3500...6500
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
XT5S 630 MA 500-6500 3p F F
1SDA100436R1
8056221005135
XT5S 630 MA 500-6500 3p F F
C.BREAKER TMAX XT5S 630 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE MA R 500 I3=3500...6500
Ordering
8056221005135
1 piece
85362090
Dimensions
140 mm
205 mm
103.5 mm
4.775 kg
Container Information
1 piece
250 mm
245 mm
285 mm
5.263 kg
8056221005135
Additional Information
Motor Protection
AC/DC
120 cycles per hour
5000 cycle
240 cycles per hour
20000 cycle
3
1 piece
33.5 W
SACE Tmax XT
Moulded Case Circuit Breaker
CB
500 A
8 kV
3500…6500 A
1000 V
690 V AC
750 V DC
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 7.5 kA
(500 V DC) 2 Poles in Series 7.5 kA
6 kA
(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 30 kA
(525 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 30 kA
(500 V DC) 2 Poles in Series 30 kA
630 A
MA
M
S
IEC 60947
XT5
Fixed Circuit-Breakers
F
Certificates and Declarations (Document Number)
Classifications
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Q
5. Small Equipment (No External Dimension More Than 50 cm)
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 500 A |
| Rated voltage (EF003977) | 690 V |
| Adjustment range undelayed short-circuit release (EF007131) | 3500 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA100436R1 1SDA100436R1 EN_1SDA100436R1.pdf | 417 Kbytes |
|
