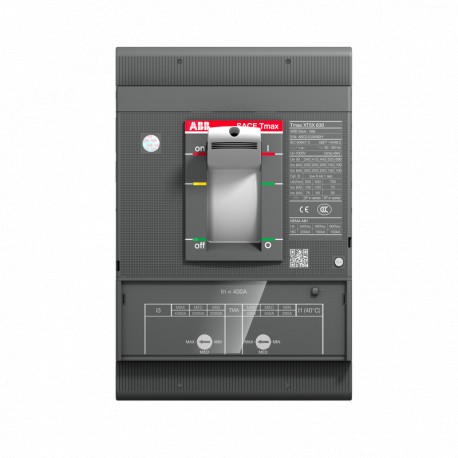

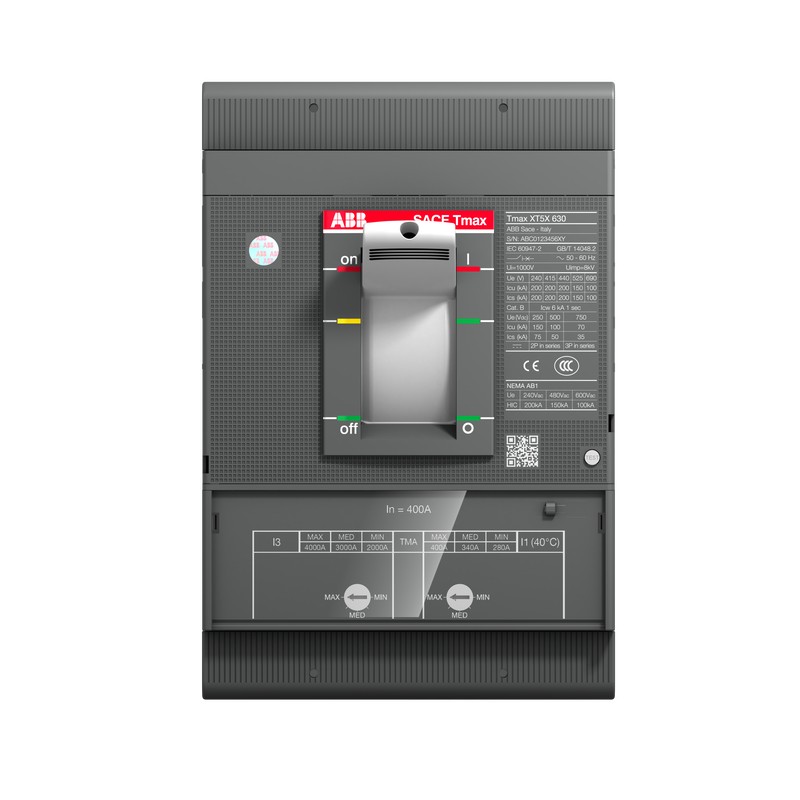

1SDA100435R1 ABB XT5S 400 MA 400-4000 3p F F
1SDA100435R1
ABB
XT5S 400 MA 400-4000 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 8f4df7a8-c3c2-4cc6-bddc-7166d85a6b3b Italy |
| Simplified SCIP | 37aa610c-2df3-4e80-bbba-9da66709b739 Poland |
| fd4cbf9a-4258-44b6-bc49-a80ca024d5e5 Hungary | |
| 0eabc9ab-62e4-4069-96b1-37fc456914f3 Estonia | |
| 730c8ab4-15aa-495b-9747-175c42179626 France | |
| c733858a-631b-4fa0-9c7d-b044cd93dd81 Czech Republic | |
| 084bf64b-b21e-40d1-8a2e-d5b19c5a9c88 Bulgaria | |
| 31471a20-6fdc-4d80-b264-d13cbab041ec Netherlands | |
| 20e5062e-a2e2-43e1-972d-a8976d959805 Hungary | |
| 66b8cdc3-b423-4bc8-a064-9c207b73ee1c Poland | |
| 5ec79032-71be-4b18-b075-971fcc5f499d France | |
| bd1ef654-472c-45f6-b95f-053c8ec68bd9 Sweden | |
| 74d01ec4-fa66-45fe-943a-29e9271403dd Belgium | |
| 0eabc9ab-62e4-4069-96b1-37fc456914f3 Estonia | |
| ddf53994-58a3-46e9-974a-88f2a098d45b Sweden | |
| d2ba3b0b-640a-4a2d-9c63-cbfc6620363b Spain | |
| 82c03ad3-1353-4dc8-b753-9fe303b23f89 Germany | |
| 3c5fc2d8-cf50-47c3-9159-e1ecf6ffda67 Germany | |
| fd4cbf9a-4258-44b6-bc49-a80ca024d5e5 Hungary | |
| 730c8ab4-15aa-495b-9747-175c42179626 France | |
| d2ba3b0b-640a-4a2d-9c63-cbfc6620363b Spain | |
| 084bf64b-b21e-40d1-8a2e-d5b19c5a9c88 Bulgaria | |
| 8e2d0ebc-f7f8-48dc-b565-bd856c9b9705 Denmark | |
| 74d01ec4-fa66-45fe-943a-29e9271403dd Belgium | |
| 0ab067e6-f4a5-430a-9301-481bbf8ca149 Germany | |
| 4deeab24-3335-4dc6-bd49-a4ba31dacdc9 Belgium | |
| 687605be-cd6f-4bb6-addf-f1d46917dd25 Norway | |
| 66b8cdc3-b423-4bc8-a064-9c207b73ee1c Poland | |
| c733858a-631b-4fa0-9c7d-b044cd93dd81 Czech Republic | |
| 27d2a2ec-4c6c-489e-b96e-8a66d89672ec Germany | |
| ddf53994-58a3-46e9-974a-88f2a098d45b Sweden | |
| 0ab067e6-f4a5-430a-9301-481bbf8ca149 Germany | |
| ea257c99-b263-485f-9677-6bffb19d47ce Finland | |
| 8c20862b-7371-434e-84d2-38f767248a41 Germany | |
| 4deeab24-3335-4dc6-bd49-a4ba31dacdc9 Belgium | |
| 5ec79032-71be-4b18-b075-971fcc5f499d France | |
| 6cd34aa2-133f-450e-b207-5a0b975fd760 Greece | |
| ea257c99-b263-485f-9677-6bffb19d47ce Finland | |
| 8c20862b-7371-434e-84d2-38f767248a41 Germany | |
| 384ff4c8-2e3f-4c1d-a5af-6c909074121e Croatia | |
| 687605be-cd6f-4bb6-addf-f1d46917dd25 Norway | |
| 8e2d0ebc-f7f8-48dc-b565-bd856c9b9705 Denmark | |
| 3468556b-87dc-452c-a9da-fc7da26a3827 Poland | |
| 82c03ad3-1353-4dc8-b753-9fe303b23f89 Germany | |
| 94a6cdde-18ec-41f3-97c8-1c989c637f52 Portugal | |
| 384ff4c8-2e3f-4c1d-a5af-6c909074121e Croatia | |
| 20e5062e-a2e2-43e1-972d-a8976d959805 Hungary | |
| 3c5fc2d8-cf50-47c3-9159-e1ecf6ffda67 Germany | |
| 31471a20-6fdc-4d80-b264-d13cbab041ec Netherlands | |
| bd1ef654-472c-45f6-b95f-053c8ec68bd9 Sweden | |
| 37aa610c-2df3-4e80-bbba-9da66709b739 Poland | |
| 27d2a2ec-4c6c-489e-b96e-8a66d89672ec Germany | |
| 3468556b-87dc-452c-a9da-fc7da26a3827 Poland | |
| 6cd34aa2-133f-450e-b207-5a0b975fd760 Greece | |
| 94a6cdde-18ec-41f3-97c8-1c989c637f52 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5SE340AMFF000XXX |
| E-Number (Norway) | 4380282 |
| EAN | 8056221005128 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221005128 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 24.1 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 2800…5200 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 30 kA | |
| (500 V DC) 2 Poles in Series 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 30 kA | |
| (500 V DC) 2 Poles in Series 30 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | MA |
| Release Type | M |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 400 A |
| Rated voltage (EF003977) | 690 V |
| Adjustment range undelayed short-circuit release (EF007131) | 2800 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
