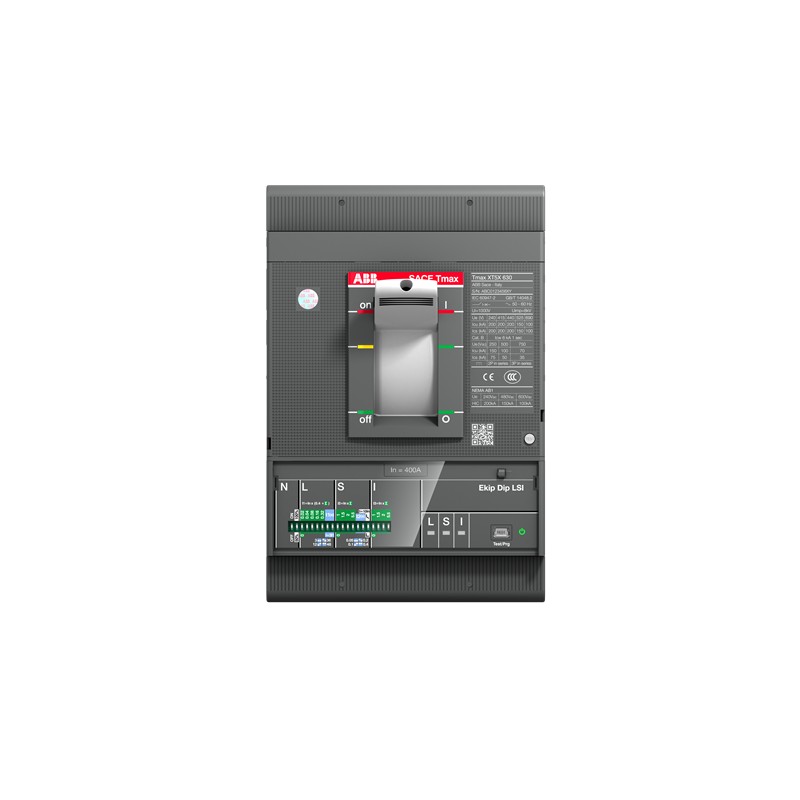

1SDA100422R1 ABB XT5S 400 Ekip Dip LS/I In 250 3p F F
1SDA100422R1
ABB
XT5S 400 Ekip Dip LS/I In=250 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2354 |
| Environmental Product Declaration - EPD | 9AKK108468A1899 |
| 9AKK108468A9748 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 498c3966-14c6-4200-a257-196d9e7d149b Italy |
| Simplified SCIP | a4600621-72c5-4295-ad1f-b4debb84e179 Norway |
| d908abf3-85ec-4a2d-a0be-b17cd54f0173 Poland | |
| 63398841-d245-4253-9d2a-bdcf965a9f1c Czech Republic | |
| 1ef75247-b653-44ea-9102-c654e05b0c69 Croatia | |
| 392fde51-0536-49a8-b2d3-ff2e1d74b94e Germany | |
| 2f96b65c-9d12-46f0-9d9d-a815b082f241 Denmark | |
| 6edd1227-9005-4d11-bf9b-0ecd3699d78a Germany | |
| cc374f68-7499-4f68-9d53-a122877998a4 Belgium | |
| 9af2a7c2-ab9e-45e3-9644-dad579a4758e Finland | |
| f1c8cb6a-78bd-495c-9058-5ca55d84d4e9 Germany | |
| 7aa0fc32-124f-45c5-991c-ad5b41a94122 Netherlands | |
| e536cafb-692a-41f5-9b01-960af35aa1be Germany | |
| 299ebac9-8d6c-4cee-af73-c34770c280b6 Poland | |
| 894e6732-8927-4b73-abfb-1d1f490d302a Sweden | |
| 80699833-1394-4d8c-8b6d-7c5696ff06b6 Bulgaria | |
| 3a443d36-2275-4367-8cbb-1d909e4d60c5 Portugal | |
| dd656831-b933-4a88-bee3-c354e5f09873 Sweden | |
| a4d3c569-a48d-4d4d-82af-26f7aac5dafa France | |
| 8633256b-4506-497d-a250-d5ffcf14870e Greece | |
| 19add9f0-a400-4519-beb9-8a0b6efd98a2 Germany | |
| c8865d4b-438e-4154-9bf6-85311b2b231b Hungary | |
| 6025ad2f-744c-4206-a81e-bf5fe152950c Belgium | |
| 0980498d-c04c-436a-8e58-00527b4877ad Spain | |
| f2984d6b-561b-40fa-bb02-094a64fadb9e France | |
| 6527e1cd-6afc-4141-b838-eb5eeaa37e01 Estonia | |
| 82f013e2-d8c8-4aa2-82d1-1806ca2fdd99 Hungary | |
| ebe3c639-87d3-4aae-b719-7f4c90ff2c23 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5SE325AEFF000XXX |
| E-Number (Finland) | 3641334 |
| E-Number (Norway) | 4380273 |
| EAN | 8056221004992 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.82 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.308 kg |
| Package Level 1 EAN | 8056221004992 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 8 W |
| Rated Current (In) | 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 250 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 100.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 250 A |
| Adjustment range undelayed short-circuit release (EF007131) | 250 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
