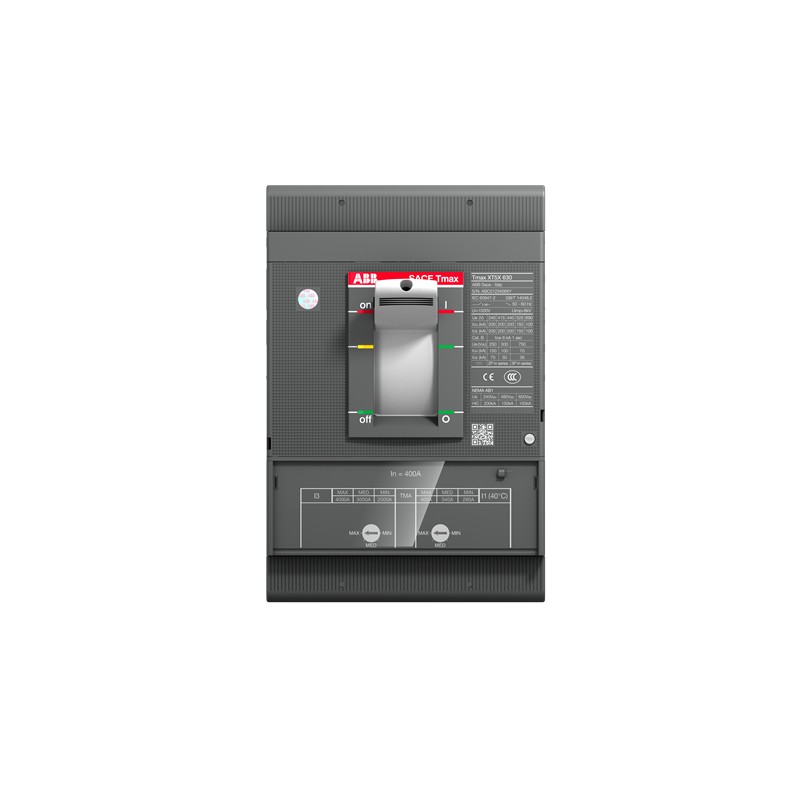

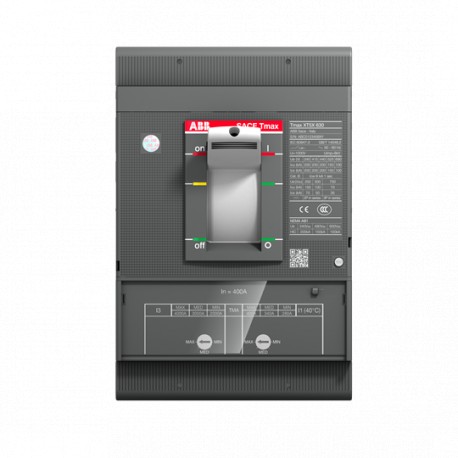

1SDA100417R1 ABB XT5S 630 TMA 630-6300 3p F F
1SDA100417R1
ABB
XT5S 630 TMA 630-6300 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 0a6c0582-267c-49aa-bfaa-b54f79038afc Italy |
| Simplified SCIP | 315c4a90-a914-4278-bc67-4779b22d51ad Germany |
| f9e324cb-910a-41e8-9408-4055335d0675 Netherlands | |
| 7d338b5a-b20b-4fa6-b800-5d10c5dcf474 Germany | |
| 6d84bc6f-8aa6-49f7-8645-eb3ea8c1d5d9 Denmark | |
| 4619c541-5096-463b-9f93-792f9c9d6c60 Germany | |
| 0b0f903d-b412-40d5-a086-46d62e223e2a Finland | |
| 5e576197-8f66-4e69-9ee4-2546e2f4384f Germany | |
| 9ad19310-4f5e-4b4f-8267-2daa1ebb453c Czech Republic | |
| 19704a55-23e7-4653-a6b4-66e632a98f62 Poland | |
| 8416ebec-a3e1-4f54-a51c-a97d902260f5 Netherlands | |
| db09d0c8-86c4-411b-99d7-cf9b2adb1467 Netherlands | |
| 7653a4be-6eaf-4632-8aeb-58488c001499 Estonia | |
| 2b7585c6-bcc9-47c0-ba65-a5d12a524b1e Greece | |
| bc5e21ed-b3b7-42e1-bd53-fd772462375d Portugal | |
| 47d64ec4-1fbf-44a8-b5af-b941824c0f60 Bulgaria | |
| e1d3d506-c15c-450b-b95b-89f22481c59b Sweden | |
| 8413a10c-a29e-46fc-9ca2-29981d49dbaf Poland | |
| dc6ad216-d53f-4e6b-90dc-92804be51ba1 France | |
| 4f087215-0d01-484f-8981-151ceddcd4fe Sweden | |
| f9aff294-c54a-46aa-9210-412bd06745f1 Germany | |
| 816b89bc-297e-4eca-a1c7-28474ff72e7f Netherlands | |
| a7374301-5e09-468a-9eab-1c54f0b2ea7a Spain | |
| abd24bb0-dac0-4cb1-87a2-311bd5850d07 Netherlands | |
| 832aae04-de90-4efb-91d6-2e1ae65f6c00 France | |
| 453e7a8d-d948-45cc-ae25-bd2ec3693805 Poland | |
| a60adcb8-577a-427d-a3f8-a48c8eabdd55 Croatia | |
| a0d04214-fc59-4632-9e2e-b2e05138bc32 Norway | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5SE363BBFF000XXX |
| E-Number (Norway) | 4380272 |
| EAN | 8056221004947 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221004947 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 47.8 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 3150…6300 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 7.5 kA | |
| (500 V DC) 2 Poles in Series 7.5 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 35 kA | |
| (500 V DC) 2 Poles in Series 35 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 441…630 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 630 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 252.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 3150 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
