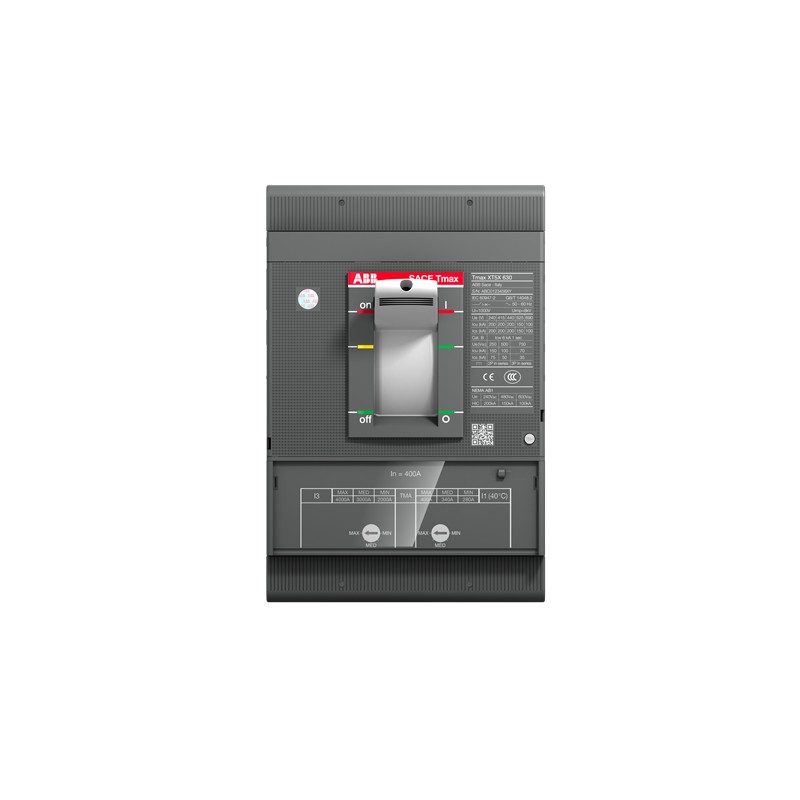

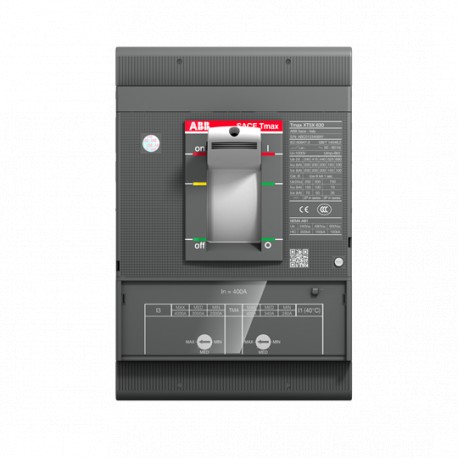

1SDA100415R1 ABB XT5S 400 TMA 400-4000 3p F F
1SDA100415R1
ABB
XT5S 400 TMA 400-4000 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | cc014527-db68-4617-8348-db896044b199 Italy |
| Simplified SCIP | a951c8ee-9c8d-41ef-a2f2-c2c8b8e23ce7 Hungary |
| cfa57215-9ead-490d-b558-f213cb516d8c Poland | |
| 74a8242b-83d1-4f3b-8326-48b78da1ac62 Estonia | |
| a7379c8f-89fb-4a8d-b48a-37c8e4cc3e07 France | |
| 1a665466-792f-435f-a4f5-c3bafb3624fc Bulgaria | |
| e7be3152-9bb8-4480-8d08-d0192cea016e Netherlands | |
| de4beb21-6a33-4ee2-8fb1-0483077514a6 Czech Republic | |
| 471c694a-27a3-434b-bab8-15cbd3d6106b Hungary | |
| 74a8242b-83d1-4f3b-8326-48b78da1ac62 Estonia | |
| f4f424e2-15ba-4395-b436-b879b8cabd8f Belgium | |
| ff62239b-c6dd-4d72-b9c3-34d381b9b442 Sweden | |
| 4b6414cb-df7e-4c60-8d48-dfafa3935989 Spain | |
| 3caded50-2443-4b3f-9248-35f9d609fc06 Sweden | |
| ee561393-d82d-4a85-90df-0094dcde30de Poland | |
| dbd38bd0-9d3c-4089-b402-ca38557da887 France | |
| a7379c8f-89fb-4a8d-b48a-37c8e4cc3e07 France | |
| a951c8ee-9c8d-41ef-a2f2-c2c8b8e23ce7 Hungary | |
| 4b6414cb-df7e-4c60-8d48-dfafa3935989 Spain | |
| 57316f24-dfc2-48bb-b89d-f9977379d26c Germany | |
| c202fc1e-79b5-4e59-9a5c-197688f231bb Germany | |
| d622d46f-d7b7-41c5-9236-e89fef49246e Denmark | |
| 1a665466-792f-435f-a4f5-c3bafb3624fc Bulgaria | |
| fa444d03-3429-40be-9c6e-88982211ba76 Norway | |
| fba0d894-c5b7-4d72-acf8-2cbfdbfd62a5 Belgium | |
| 1e0c3a27-3ece-4b37-863b-208eecc96c1b Germany | |
| f4f424e2-15ba-4395-b436-b879b8cabd8f Belgium | |
| 523f3bfb-0963-4190-a139-e540fd030f8a Germany | |
| 3543b803-d4c7-4b2b-a3a9-ea5a8de63cfc Finland | |
| fba0d894-c5b7-4d72-acf8-2cbfdbfd62a5 Belgium | |
| de4beb21-6a33-4ee2-8fb1-0483077514a6 Czech Republic | |
| ee561393-d82d-4a85-90df-0094dcde30de Poland | |
| 1e0c3a27-3ece-4b37-863b-208eecc96c1b Germany | |
| ff62239b-c6dd-4d72-b9c3-34d381b9b442 Sweden | |
| b73d2ba9-2880-4d7b-babd-5b8326437e74 Germany | |
| 3caded50-2443-4b3f-9248-35f9d609fc06 Sweden | |
| e7be3152-9bb8-4480-8d08-d0192cea016e Netherlands | |
| 471c694a-27a3-434b-bab8-15cbd3d6106b Hungary | |
| c202fc1e-79b5-4e59-9a5c-197688f231bb Germany | |
| 75aab4d8-fe90-4e73-865d-192765c66504 Croatia | |
| 57316f24-dfc2-48bb-b89d-f9977379d26c Germany | |
| c6efae00-718c-4cae-b514-601f6276483f Portugal | |
| f8249b51-20a9-4cca-a676-1958769f834a Poland | |
| d622d46f-d7b7-41c5-9236-e89fef49246e Denmark | |
| 75aab4d8-fe90-4e73-865d-192765c66504 Croatia | |
| fa444d03-3429-40be-9c6e-88982211ba76 Norway | |
| dbd38bd0-9d3c-4089-b402-ca38557da887 France | |
| 80387626-99f2-45c1-895a-6a67f64062be Greece | |
| 3543b803-d4c7-4b2b-a3a9-ea5a8de63cfc Finland | |
| 523f3bfb-0963-4190-a139-e540fd030f8a Germany | |
| c6efae00-718c-4cae-b514-601f6276483f Portugal | |
| 80387626-99f2-45c1-895a-6a67f64062be Greece | |
| f8249b51-20a9-4cca-a676-1958769f834a Poland | |
| b73d2ba9-2880-4d7b-babd-5b8326437e74 Germany | |
| cfa57215-9ead-490d-b558-f213cb516d8c Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5SE340ABFF000XXX |
| E-Number (Norway) | 4380270 |
| EAN | 8056221004923 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221004923 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 24.1 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 2000…4000 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 30 kA | |
| (500 V DC) 2 Poles in Series 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 35 kA | |
| (500 V DC) 2 Poles in Series 35 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 280…400 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 400 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 160.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 2000 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
