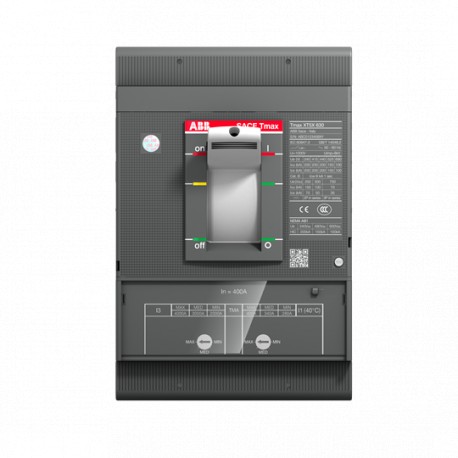

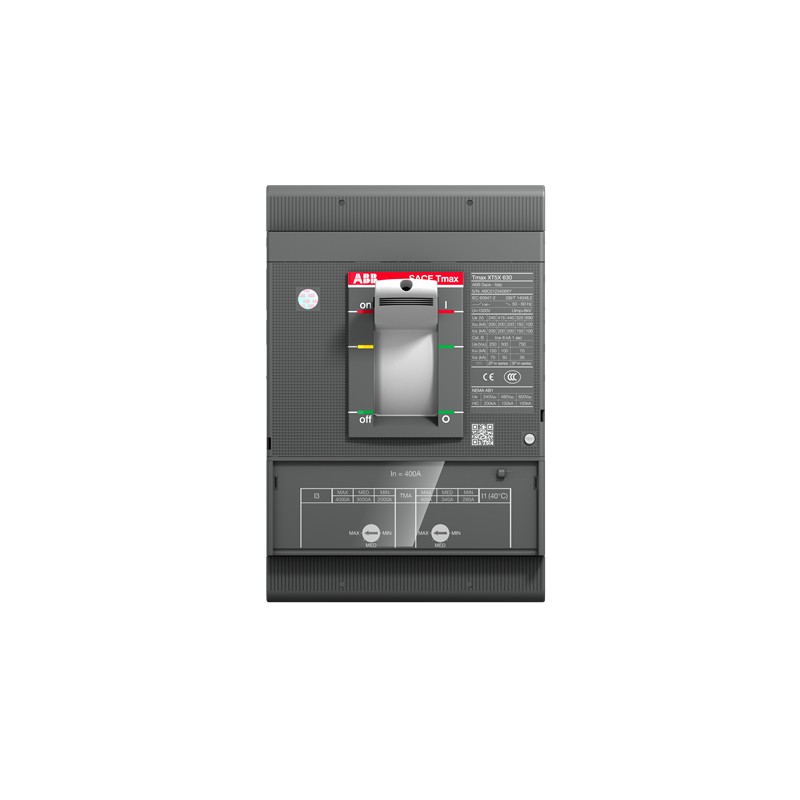

1SDA100414R1 ABB XT5S 400 TMA 320-3200 3p F F
1SDA100414R1
ABB
XT5S 400 TMA 320-3200 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 0b42750d-9eb1-489a-830a-97f0c8a7fd4f Italy |
| Simplified SCIP | 8e113c7e-dae1-4346-b347-39c9d014eacb Hungary |
| a423880c-7efa-4e86-bf00-bae2786b6019 Czech Republic | |
| a1b79dc4-cb03-4939-831d-d63b4df0ed9a Netherlands | |
| 02b01ee3-0f2a-48c8-b744-3cba344d6df4 Bulgaria | |
| f3e90ffc-863a-4889-85a0-3f2e596c5c96 Hungary | |
| 22c99369-8fb8-4827-9049-843e123e7b15 Poland | |
| 8bd53fb9-1357-4a10-8b8e-46d4847114e7 Estonia | |
| ac1d526a-1447-42f2-b2df-0a70e1459d51 France | |
| b7d4c928-8123-49eb-a169-8ce67cba10b8 Sweden | |
| c8412c91-54f8-4f06-bdeb-070a424decdb Spain | |
| 8bd53fb9-1357-4a10-8b8e-46d4847114e7 Estonia | |
| ca17fceb-9ae1-41e6-a78b-30beb4c313b4 Belgium | |
| eff05545-d082-4d30-82a1-4299f84b6cc2 Poland | |
| d42c7868-09a5-4dda-b53c-ac442654b486 France | |
| bbf51990-2977-4243-98c1-57edf86f4dd4 Sweden | |
| 837b9221-60a9-48a5-ad9c-6177e58b9216 Germany | |
| 0bc15dba-843c-41eb-88cc-7b42e9392182 Germany | |
| ac1d526a-1447-42f2-b2df-0a70e1459d51 France | |
| f3e90ffc-863a-4889-85a0-3f2e596c5c96 Hungary | |
| c8412c91-54f8-4f06-bdeb-070a424decdb Spain | |
| 02b01ee3-0f2a-48c8-b744-3cba344d6df4 Bulgaria | |
| e37ed47f-6ac9-4ab7-8f50-be91fcbb01fd Denmark | |
| ca17fceb-9ae1-41e6-a78b-30beb4c313b4 Belgium | |
| c682f9f7-2b32-4a42-a761-601a251e0510 Germany | |
| 5820f393-27fd-40c6-a1ae-1d7dcffbcdc4 Belgium | |
| 023c2e16-64b6-4eea-8c1f-fefece8e726d Norway | |
| f4d5dab3-89f1-4e92-982d-711f1b5735dd Germany | |
| b7d4c928-8123-49eb-a169-8ce67cba10b8 Sweden | |
| c682f9f7-2b32-4a42-a761-601a251e0510 Germany | |
| a423880c-7efa-4e86-bf00-bae2786b6019 Czech Republic | |
| eff05545-d082-4d30-82a1-4299f84b6cc2 Poland | |
| 5820f393-27fd-40c6-a1ae-1d7dcffbcdc4 Belgium | |
| 81035425-ffbb-43df-9004-66af29cf7e82 Germany | |
| e1ca1b66-379a-4054-9b96-c3531a2cd3cb Finland | |
| b60fab2f-7fdb-4395-a58a-446fff323dbc Greece | |
| d42c7868-09a5-4dda-b53c-ac442654b486 France | |
| e1ca1b66-379a-4054-9b96-c3531a2cd3cb Finland | |
| 81035425-ffbb-43df-9004-66af29cf7e82 Germany | |
| b2a0f79e-1a6d-4103-a7cb-705355db9892 Poland | |
| e37ed47f-6ac9-4ab7-8f50-be91fcbb01fd Denmark | |
| fbe73609-b4dc-4f9e-9004-43b852a1acee Croatia | |
| 023c2e16-64b6-4eea-8c1f-fefece8e726d Norway | |
| 25638da2-80ee-4b70-904c-a74d5d4928ab Portugal | |
| 837b9221-60a9-48a5-ad9c-6177e58b9216 Germany | |
| fbe73609-b4dc-4f9e-9004-43b852a1acee Croatia | |
| a1b79dc4-cb03-4939-831d-d63b4df0ed9a Netherlands | |
| bbf51990-2977-4243-98c1-57edf86f4dd4 Sweden | |
| 8e113c7e-dae1-4346-b347-39c9d014eacb Hungary | |
| 0bc15dba-843c-41eb-88cc-7b42e9392182 Germany | |
| b60fab2f-7fdb-4395-a58a-446fff323dbc Greece | |
| 25638da2-80ee-4b70-904c-a74d5d4928ab Portugal | |
| 22c99369-8fb8-4827-9049-843e123e7b15 Poland | |
| f4d5dab3-89f1-4e92-982d-711f1b5735dd Germany | |
| b2a0f79e-1a6d-4103-a7cb-705355db9892 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5SE332ABFF000XXX |
| E-Number (Norway) | 4380269 |
| EAN | 8056221004916 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221004916 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 16.9 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1600…3200 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 30 kA | |
| (500 V DC) 2 Poles in Series 30 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| (250 V DC) 2 Poles in Series 35 kA | |
| (500 V DC) 2 Poles in Series 35 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 224…320 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 320 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 128.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1600 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
