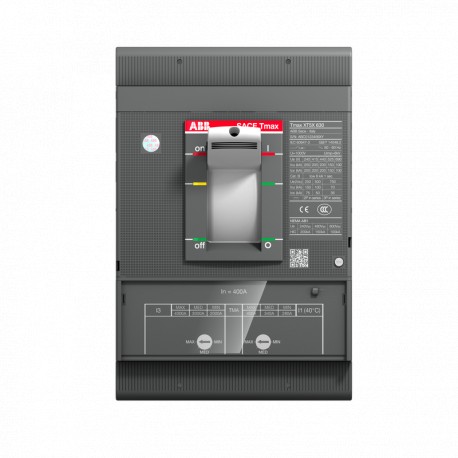

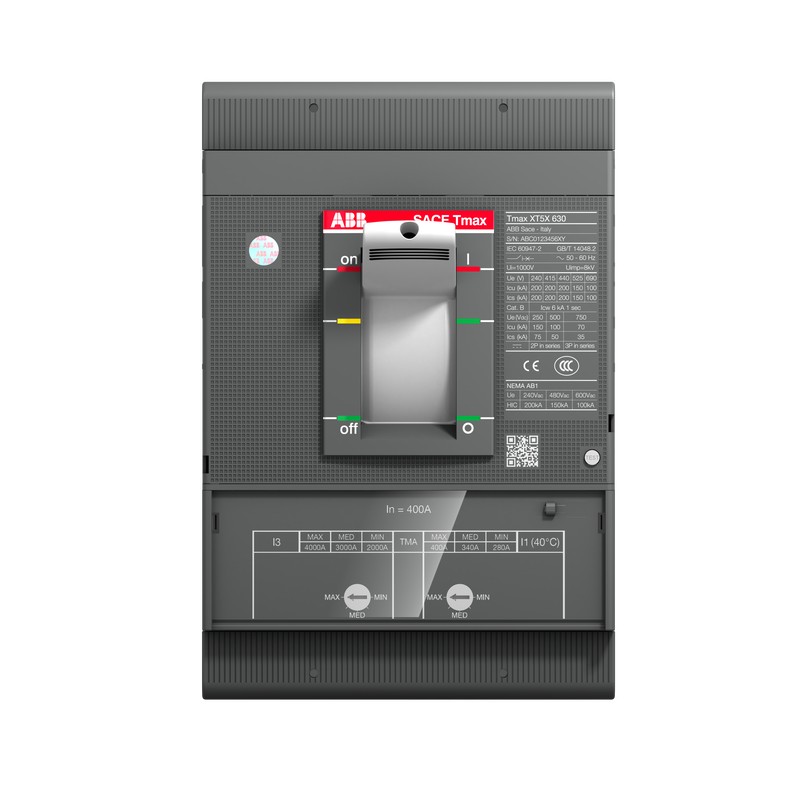

1SDA100374R1 ABB XT5N 400 TMG 320-1600 3p F F
1SDA100374R1
ABB
XT5N 400 TMG 320-1600 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 5d97c547-4c02-4d51-99fd-50277583141a Italy |
| Simplified SCIP | d0994a0b-2558-4b4f-a7d2-040f3c6b9ef4 Germany |
| 6fa43b34-c40d-4a25-b438-71bab3998e52 Poland | |
| eae67040-a264-4959-a217-0417c9b529e3 Sweden | |
| d586a2f4-2e3d-44a5-bb4a-8e24964aebc8 Norway | |
| 45524210-f770-439d-8871-fd011870fb43 Finland | |
| 048b8315-720e-410d-b269-bc51ea12859e Netherlands | |
| 867de2ae-5d57-42b4-a781-0570e69651fd Germany | |
| e33ce4c7-6441-4c46-a315-e74e3578f2d5 Denmark | |
| f3729fbe-4529-49ce-b85a-8a35861a045a Germany | |
| 2127ed35-ca67-458d-9e75-e6feb3a8fcbc Croatia | |
| 881adb63-6c84-4b62-8c3a-aca43709eb26 Czech Republic | |
| dc71d46e-8f6e-498d-b39e-5de902876525 Poland | |
| 53c10d56-929b-466c-9ead-c1cdb9fc44e2 Netherlands | |
| 31c309c7-0a4a-4ef3-a3c1-3bfb16c38aef Netherlands | |
| a0e6e7ee-9b8a-46e6-841e-d39913826358 Estonia | |
| 1e681361-d21a-401a-87c9-fdd7cff698e5 Greece | |
| 7bb2420e-fe7d-4fcd-91b4-2ce927dba99b Portugal | |
| b7cfeb8b-d525-442b-ad0f-e251a28e2ff1 Bulgaria | |
| b0917e20-10ef-4dba-b613-e2db29ef60ac Sweden | |
| 4fde9f60-5254-4153-8db7-e67b2e7916b8 Poland | |
| b4a08331-a062-4790-8eda-61953ff4a80b France | |
| 4cc65e61-32fa-4f52-a228-b17288cb5af8 Germany | |
| ecf34271-dc6e-42dc-9b12-181a79de70a7 Germany | |
| 5ab4538f-565b-442d-9775-67aefdd40454 France | |
| f5abda46-f2be-4990-a6b6-8a157f3d282e Netherlands | |
| 95bf0ae4-822a-4781-af9a-2cbb2c4b8e10 Spain | |
| 1991de95-acd1-4e14-a1ce-96b99123f810 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5NE332ANFF000XXX |
| E-Number (Norway) | 4380265 |
| EAN | 8056221004510 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221004510 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Generator Protection |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 16.9 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 800…1600 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMG |
| Release Type | TM |
| Setting Range | 224…320 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 320 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 128.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1600 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
