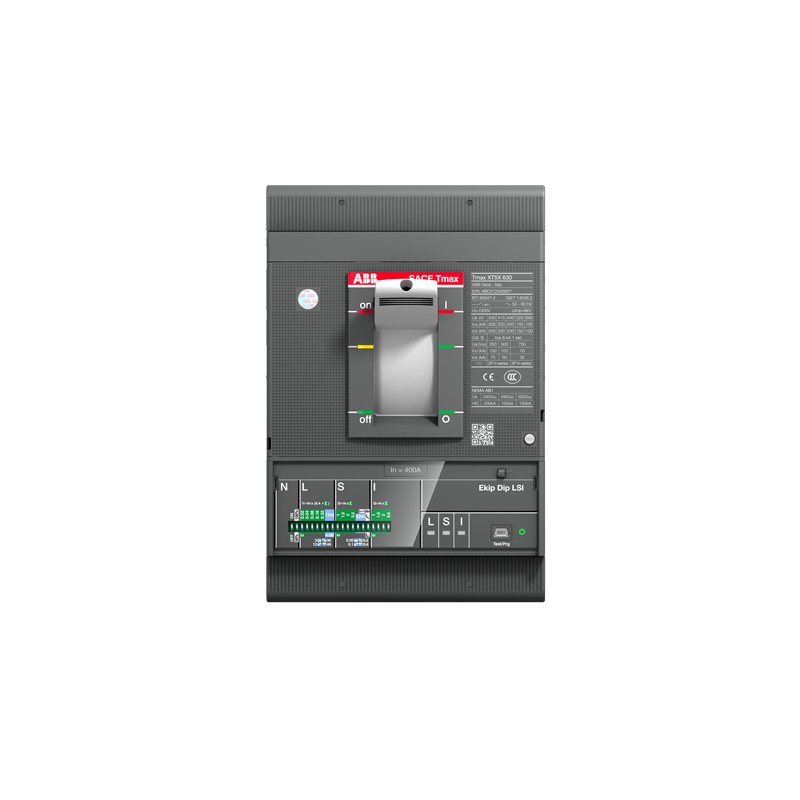

1SDA100368R1 ABB XT5N 400 Ekip M Dip I In 400A 3p F F
1SDA100368R1
ABB
XT5N 400 Ekip M Dip I In=400A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2354 |
| Environmental Product Declaration - EPD | 9AKK108468A1899 |
| 9AKK108468A9748 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | ecfcd65d-25e3-47da-bb12-a22fb60bf7cf China |
| Simplified SCIP | c1a2e73d-3d27-4e17-8457-4c2ddc712532 Germany |
| 2c147415-0877-4aa4-92d0-fb147d42f992 France | |
| c097ec8c-2d20-4d44-af76-fdc78e448c7a Portugal | |
| d923fce6-8973-4e59-bf0c-2a212a060a76 Sweden | |
| 65377f29-cbcb-4188-80d6-e3f493b562d2 Poland | |
| 782a181d-3bc6-48d9-b943-8694faa5552e Bulgaria | |
| 431ab4ca-fe10-4f53-a0bf-025c618b562c Finland | |
| 0651b992-27fb-4c44-bee3-8bb016e0a73a Poland | |
| 8d9c7593-e454-42fe-83d0-b9a8e7a31710 Sweden | |
| e47c6484-09c8-4d2f-8849-f3580fcd52aa Norway | |
| 4a59439e-60f7-42e1-991d-8f4c6c4d5076 Croatia | |
| 59b5efa5-4e57-43cc-9c0c-b26e8deba0fd Czech Republic | |
| 6e5cd093-ecb4-4d8c-bd18-e9054d408ef2 Germany | |
| 7523cb6d-4ae7-4570-a0f1-c37d48e25261 Denmark | |
| 9f27bf7d-ffb9-4f97-ad2d-13db274b8fbe France | |
| 9d068b38-b2fb-486d-8580-89c353f1802d Germany | |
| 25d58674-b03e-4cbd-b873-b1eba9a5ecf0 Netherlands | |
| 6e042a5e-1a5c-43e4-a91c-194e1c77977e Poland | |
| fed78690-c29f-499c-99cc-1fd0486d4fa1 Hungary | |
| 475e2b46-765b-4b63-b36c-896ba5f7a1aa Belgium | |
| 0967847f-4e07-408e-ab5e-7d5eda5b2fe5 Greece | |
| e949c02b-ec0b-493f-b99a-2cd0c44c234c Germany | |
| eb11e87f-1b8a-463f-b819-ebcbcf5e77e3 Estonia | |
| 9de9bc9b-bda1-4d32-ac6d-1caee7f2a962 Spain | |
| 33420c4a-6b84-4b03-8554-f6741be8f41e Hungary | |
| d77ca3c0-8077-4abe-9fda-cd353f65c493 Germany | |
| 13b7c241-3fa5-42ff-b619-01d18de5080b Belgium | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5NE340AKFF000XXX |
| E-Number (Norway) | 4380259 |
| EAN | 8056221004459 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.82 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.308 kg |
| Package Level 1 EAN | 8056221004459 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 19 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | Ekip M Dip I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 400 A |
| Rated voltage (EF003977) | 690 V |
| Adjustment range short-term delayed short-circuit release (EF007129) | 240.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 400 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
