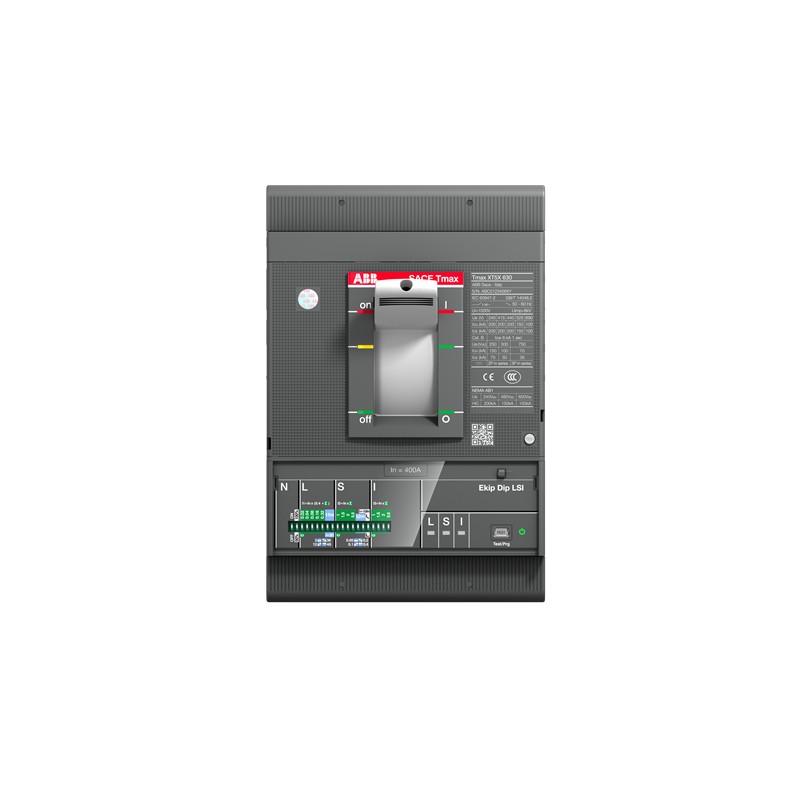

1SDA100367R1 ABB XT5N 400 Ekip M Dip I In 320A 3p F F
1SDA100367R1
ABB
XT5N 400 Ekip M Dip I In=320A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2354 |
| Environmental Product Declaration - EPD | 9AKK108468A1899 |
| 9AKK108468A9748 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | ee9ea6be-c732-434d-8924-29e04da72d77 China |
| Simplified SCIP | 19a3712a-51ff-456b-ac29-5039a060ae74 Poland |
| 6a31cdfa-230b-4c62-9d71-e86e0cc1b820 Bulgaria | |
| f7fa90f9-0d4b-4ddc-8edb-c5d684346684 Sweden | |
| 4ce3242a-9935-4ff3-93d2-c0aaa81b970a Portugal | |
| de5cd6fa-4e3b-4e03-94a9-1af57429786e France | |
| a11da0ef-40bd-4921-a450-475edac7cd6f Germany | |
| 69870de2-3dd4-4ffb-9f5c-2dc5080b0cda Denmark | |
| 0853f1a6-eaab-406a-99cf-fa502d57cf60 Germany | |
| bbf1eef4-1489-4bd4-9fac-5a2357e17b1d Hungary | |
| ee5be33c-56e2-4151-8d14-a6a55b004dc8 Greece | |
| 6a16449e-e56f-4dd5-81f5-ccdead55ef34 Belgium | |
| 121c3c15-35de-4e1d-a3e2-2f72af82daf2 Estonia | |
| c24d4679-d934-4ad4-b994-7470707d19ab Germany | |
| 0203ec75-0354-4b95-af1c-52eafd87818e Hungary | |
| dc611edf-0963-4cc8-b594-ebf010d73dba Spain | |
| 4d968d4a-5c86-4f09-b47d-717e7f54dbd0 Poland | |
| 1ca9c632-31ab-472d-a650-b36ac7cb0b37 Netherlands | |
| 36049e7d-71c3-46b5-bfa2-7a648d620b1b Germany | |
| 92a37f07-1a18-43db-812e-7bde68897cc7 France | |
| 009f03b7-b095-436b-b573-a3b9cad7360f Germany | |
| 9b65c621-0177-41ff-bbfa-6b919e526ca5 Belgium | |
| 6c8669ba-8444-48f1-8042-710a9875cf08 Poland | |
| 063762df-3dd8-4566-b921-3186af1cc5cb Finland | |
| 42978397-5174-41fd-904e-4ba3070ee274 Norway | |
| fefd02c7-8628-4ecf-bfdd-b4d4400e6245 Czech Republic | |
| f38202ba-f973-42e6-b66b-d89c85b8f578 Croatia | |
| b12ccf30-e9ed-409a-bdae-d259bc8e8ceb Sweden | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5NE332AKFF000XXX |
| E-Number (Norway) | 4380258 |
| EAN | 8056221004442 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.82 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.308 kg |
| Package Level 1 EAN | 8056221004442 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 11.6 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | Ekip M Dip I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 320 A |
| Rated voltage (EF003977) | 690 V |
| Adjustment range short-term delayed short-circuit release (EF007129) | 192.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 320 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA100367R1 1SDA100367R1 EN_1SDA100367R1.pdf | 408 Kbytes |
|
