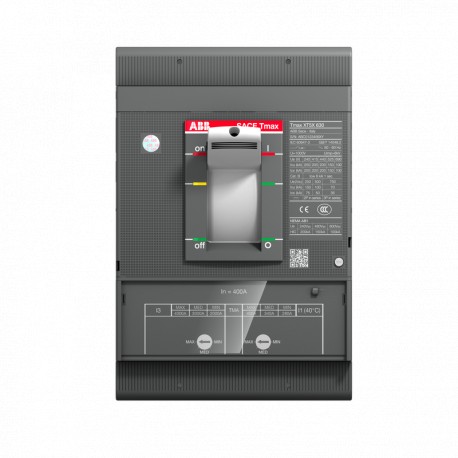

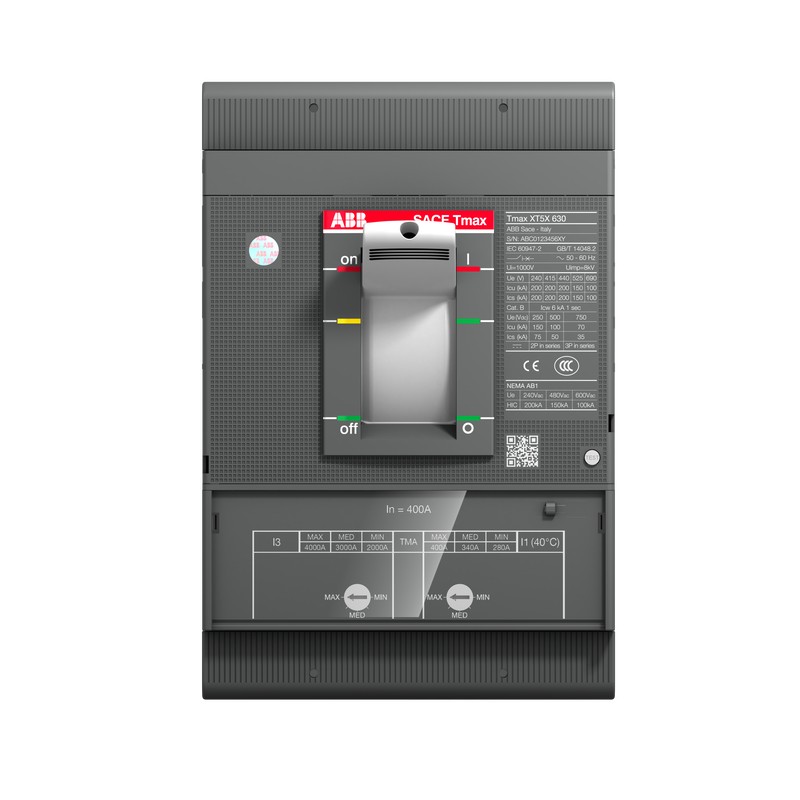

1SDA100347R1 ABB XT5N 630 TMA 630-6300 3p F F
1SDA100347R1
ABB
XT5N 630 TMA 630-6300 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 960d7d68-e5c3-43ed-a829-43e09c568bea Italy |
| Simplified SCIP | 01a6778a-8242-4cf5-b3cd-c747948646bd Belgium |
| a2093be5-5399-4c14-a5a4-fea82edda0bb Bulgaria | |
| b96c874f-a066-4cec-a1d3-e34d72b3b295 Denmark | |
| 1308315b-d19d-41df-8680-9ad0c025c40a Germany | |
| d440dd34-9bb6-4d47-b41a-5419570362df Norway | |
| 77fd31df-a542-416e-8aae-8f0252878a40 Germany | |
| 31601fff-05eb-4e85-bab3-f1a1230d16de Finland | |
| 01a6778a-8242-4cf5-b3cd-c747948646bd Belgium | |
| 1308315b-d19d-41df-8680-9ad0c025c40a Germany | |
| 3c0bb6b2-6300-4b85-997b-c9186010b08b Poland | |
| b96c874f-a066-4cec-a1d3-e34d72b3b295 Denmark | |
| 0799605e-d1d2-4955-9ff7-c3d7eba468a4 Germany | |
| 4c241cd4-b821-47ee-81e2-2050766e77bb Czech Republic | |
| 4fefb43f-2fbb-4835-8831-3e6cd367fb31 Poland | |
| 1d77fa17-eb06-457f-9660-009dcea56840 Sweden | |
| 3c729486-cb2e-47b8-9efb-0fd19b22b81c Poland | |
| 5520b154-676c-4e1f-b5b6-a416945c374a Portugal | |
| e13f46fd-a285-4878-8894-1184d6437373 Belgium | |
| 3c0bb6b2-6300-4b85-997b-c9186010b08b Poland | |
| 0799605e-d1d2-4955-9ff7-c3d7eba468a4 Germany | |
| bfb947e0-f8eb-44b3-ab63-b83810859d98 Greece | |
| aefb46ed-ea4a-44b5-8810-f3de8b160ffb Germany | |
| 5520b154-676c-4e1f-b5b6-a416945c374a Portugal | |
| ed36bfcf-c699-4974-8fbb-3e5af1b68e3a Croatia | |
| 4c241cd4-b821-47ee-81e2-2050766e77bb Czech Republic | |
| e25645f5-3d61-4213-86c0-64154b8f709a Hungary | |
| 89257528-5546-4401-8d98-ba5d11e2afc6 Germany | |
| 9e7ffc90-8fef-4b2d-9cb5-9d0e954aea1a Netherlands | |
| a2093be5-5399-4c14-a5a4-fea82edda0bb Bulgaria | |
| ed36bfcf-c699-4974-8fbb-3e5af1b68e3a Croatia | |
| cdcd3ec3-60f5-4eb0-8ec9-69606e86b548 France | |
| bfb947e0-f8eb-44b3-ab63-b83810859d98 Greece | |
| d440dd34-9bb6-4d47-b41a-5419570362df Norway | |
| 28db8e97-1ba8-4869-99a5-ac291bc11cb7 Sweden | |
| 9e7ffc90-8fef-4b2d-9cb5-9d0e954aea1a Netherlands | |
| 31601fff-05eb-4e85-bab3-f1a1230d16de Finland | |
| 77fd31df-a542-416e-8aae-8f0252878a40 Germany | |
| 6330a9d3-d2d0-4e4e-8290-0affb081498c Hungary | |
| 78217c5b-280a-494d-a44c-bc91c7e5c861 Spain | |
| e25645f5-3d61-4213-86c0-64154b8f709a Hungary | |
| dc4726b8-87fb-4ea9-b1d4-70938145874e Estonia | |
| 3c729486-cb2e-47b8-9efb-0fd19b22b81c Poland | |
| 03579bc1-3cf9-4f0d-a34e-60d8689c874d France | |
| 6330a9d3-d2d0-4e4e-8290-0affb081498c Hungary | |
| dc4726b8-87fb-4ea9-b1d4-70938145874e Estonia | |
| e13f46fd-a285-4878-8894-1184d6437373 Belgium | |
| 78217c5b-280a-494d-a44c-bc91c7e5c861 Spain | |
| aefb46ed-ea4a-44b5-8810-f3de8b160ffb Germany | |
| 03579bc1-3cf9-4f0d-a34e-60d8689c874d France | |
| 89257528-5546-4401-8d98-ba5d11e2afc6 Germany | |
| 28db8e97-1ba8-4869-99a5-ac291bc11cb7 Sweden | |
| cdcd3ec3-60f5-4eb0-8ec9-69606e86b548 France | |
| 1d77fa17-eb06-457f-9660-009dcea56840 Sweden | |
| 4fefb43f-2fbb-4835-8831-3e6cd367fb31 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5NE363BBFF000XXX |
| E-Number (Norway) | 4380246 |
| EAN | 8056221004244 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221004244 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 47.8 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 3150…6300 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 6.25 kA | |
| (500 V DC) 2 Poles in Series 6.25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 441…630 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 630 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 252.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 3150 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA100347R1 1SDA100347R1 EN_1SDA100347R1.pdf | 417 Kbytes |
|
