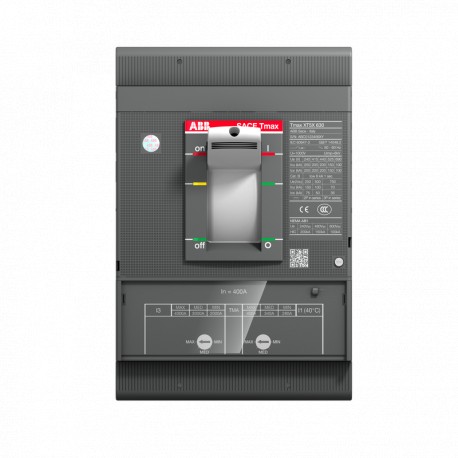

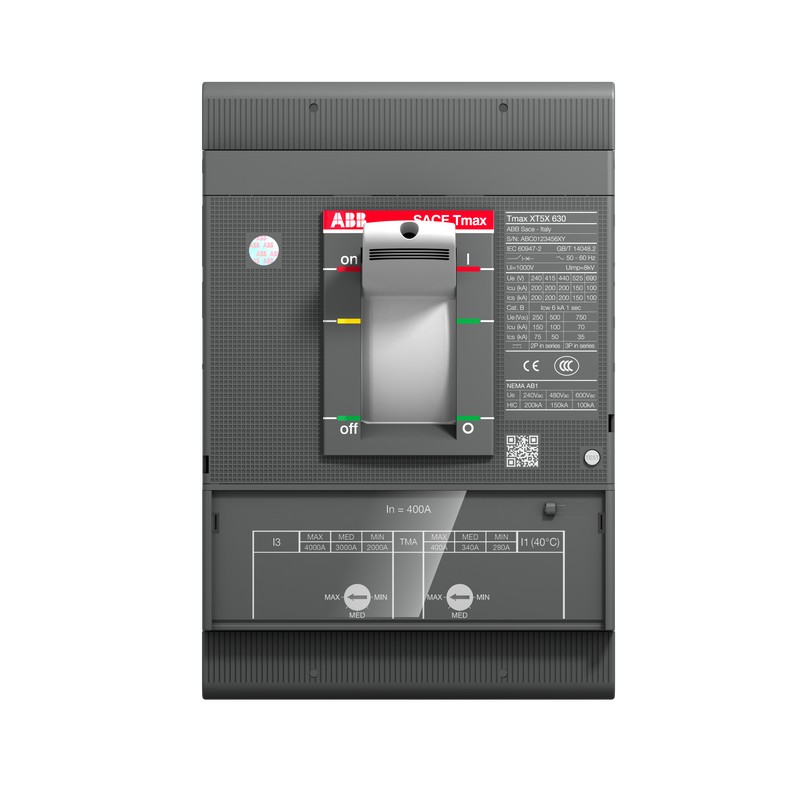

1SDA100346R1 ABB XT5N 630 TMA 500-5000 3p F F
1SDA100346R1
ABB
XT5N 630 TMA 500-5000 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 914eebce-a04a-4c26-ade4-63bb2f0f18b0 Italy |
| Simplified SCIP | e2811b34-edbc-4ab5-b3d7-d122bfbc8eb7 Germany |
| 5e85d089-0256-4701-a2f7-b1b6eeb1d10d Denmark | |
| c01f7019-1c12-497d-a3db-de38ab46bd53 Bulgaria | |
| e2b6cd6e-bcd8-44df-b3c7-b09139ed4fb1 Germany | |
| 8d943a49-ff7f-4815-b1ed-2d563dd2d5f6 Belgium | |
| 7b687abd-9641-407b-a7f2-7b6008641ada Norway | |
| 5a14e1fe-d67d-4ef8-9c80-ae9a3dd4616d Belgium | |
| 2b51cff0-6922-48fe-a8fa-7f7bf58c71b3 Poland | |
| 5e85d089-0256-4701-a2f7-b1b6eeb1d10d Denmark | |
| f0c6e020-0476-4f08-a7b4-987cfef42d62 Czech Republic | |
| c14fc30f-a5ac-433e-a1b9-9ef636f96ee9 Germany | |
| 97d14c9e-30a1-44f3-b3bf-152ea60f7ec6 Poland | |
| b00d6e9f-bcc3-4c34-bdcd-030d7632c7a6 Finland | |
| 8d943a49-ff7f-4815-b1ed-2d563dd2d5f6 Belgium | |
| 67a678af-b43d-431d-9f8c-03b34c398595 Sweden | |
| e2b6cd6e-bcd8-44df-b3c7-b09139ed4fb1 Germany | |
| d2966d57-02f2-4d34-8f12-48b4f04c266c Poland | |
| b33ba305-eb01-4fba-9fde-49d7ee8cacb2 Greece | |
| 91979fb1-1c3e-4ffc-ad45-f54609a159a5 Portugal | |
| 2b51cff0-6922-48fe-a8fa-7f7bf58c71b3 Poland | |
| c14fc30f-a5ac-433e-a1b9-9ef636f96ee9 Germany | |
| 51e7b131-3187-4cf3-9778-bf2e65138f18 Netherlands | |
| aa28553d-967f-4fc1-a872-9620a5efa91e Sweden | |
| b00d6e9f-bcc3-4c34-bdcd-030d7632c7a6 Finland | |
| 49f90be8-0bff-4539-bfe5-a282720d3165 France | |
| e2811b34-edbc-4ab5-b3d7-d122bfbc8eb7 Germany | |
| ef691b67-e9c4-4a1f-8a37-138bfdbfeeb4 Croatia | |
| 7b687abd-9641-407b-a7f2-7b6008641ada Norway | |
| b33ba305-eb01-4fba-9fde-49d7ee8cacb2 Greece | |
| ef691b67-e9c4-4a1f-8a37-138bfdbfeeb4 Croatia | |
| 91979fb1-1c3e-4ffc-ad45-f54609a159a5 Portugal | |
| 277677d4-0bcf-409b-9aae-94ae0e915eb3 Germany | |
| 6697e47c-f58d-4fe5-8bd0-1c21873a7878 Germany | |
| eb2556fc-9b64-4e7e-82bd-939aaee1782b Hungary | |
| f0c6e020-0476-4f08-a7b4-987cfef42d62 Czech Republic | |
| 51e7b131-3187-4cf3-9778-bf2e65138f18 Netherlands | |
| c01f7019-1c12-497d-a3db-de38ab46bd53 Bulgaria | |
| 2f1df85f-fb39-444d-a70e-c747237f6059 France | |
| be56c6ee-df04-4f4d-aacb-1c4ec9a87d6d Hungary | |
| 5eec3674-b19e-47ce-ae08-16761dd6e042 Spain | |
| be56c6ee-df04-4f4d-aacb-1c4ec9a87d6d Hungary | |
| cc8425bf-d569-4813-a7c8-3036307642fd Estonia | |
| 5a14e1fe-d67d-4ef8-9c80-ae9a3dd4616d Belgium | |
| eb2556fc-9b64-4e7e-82bd-939aaee1782b Hungary | |
| 2f1df85f-fb39-444d-a70e-c747237f6059 France | |
| d2966d57-02f2-4d34-8f12-48b4f04c266c Poland | |
| cc8425bf-d569-4813-a7c8-3036307642fd Estonia | |
| 6697e47c-f58d-4fe5-8bd0-1c21873a7878 Germany | |
| 277677d4-0bcf-409b-9aae-94ae0e915eb3 Germany | |
| aa28553d-967f-4fc1-a872-9620a5efa91e Sweden | |
| 49f90be8-0bff-4539-bfe5-a282720d3165 France | |
| 67a678af-b43d-431d-9f8c-03b34c398595 Sweden | |
| 97d14c9e-30a1-44f3-b3bf-152ea60f7ec6 Poland | |
| 5eec3674-b19e-47ce-ae08-16761dd6e042 Spain | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5NE350BBFF000XXX |
| E-Number (Norway) | 4380245 |
| EAN | 8056221004237 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221004237 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 33.5 W |
| Rated Current (In) | 500 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 2500…5000 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 6.25 kA | |
| (500 V DC) 2 Poles in Series 6.25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 350…500 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 500 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 200.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 2500 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
