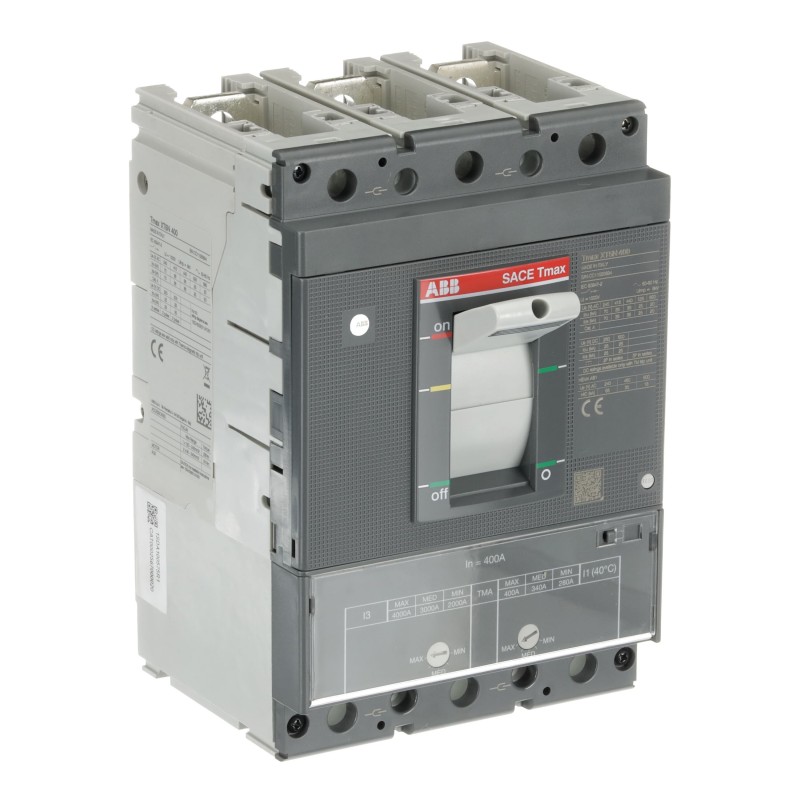

1SDA100345R1 ABB XT5N 400 TMA 400-4000 3p F F
1SDA100345R1
ABB
XT5N 400 TMA 400-4000 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2353 |
| Environmental Product Declaration - EPD | 9AKK108468A9746 |
| 9AKK108468A1893 | |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 59.6 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 7affa64c-adcd-476f-89ff-6e49b6bca197 Italy |
| Simplified SCIP | 1e0c266e-3e17-4075-b677-352a54b8e7b0 Denmark |
| 459d7944-828c-435f-8739-be4619b51bd5 Bulgaria | |
| 8f887146-9a43-4654-be1d-4aa9745270bd Germany | |
| 6d3443c5-f72f-492f-a5ee-749ca0036f0b Poland | |
| f3ac34f3-524f-43fb-b8a7-5b83c55071ae Belgium | |
| 5c27ca53-2a5c-4488-ae7a-c4a5adc58f45 Belgium | |
| d04887a7-d5e4-4608-99c6-edba1faca095 Germany | |
| 5948241c-ea53-4631-8000-27b71d77d252 Norway | |
| 5008162f-5739-4631-9cab-89e61e9e5cd0 Finland | |
| 5c27ca53-2a5c-4488-ae7a-c4a5adc58f45 Belgium | |
| 61350103-c802-4335-a4ca-1f61faa02492 Sweden | |
| d04887a7-d5e4-4608-99c6-edba1faca095 Germany | |
| 262b88de-c3c8-43e5-98ac-c383239d15e3 Czech Republic | |
| 6d3443c5-f72f-492f-a5ee-749ca0036f0b Poland | |
| 0a9498c7-0d05-469f-abac-3d669e38e78d Poland | |
| 4af56212-2fcb-4335-bacb-069d25dffee8 Germany | |
| 1e0c266e-3e17-4075-b677-352a54b8e7b0 Denmark | |
| 4af56212-2fcb-4335-bacb-069d25dffee8 Germany | |
| c4243989-3779-41ff-b138-9e4ee984d1bc Poland | |
| b3290f26-6e62-4d5a-a45e-b18271e9ed25 Portugal | |
| c2f23de2-c1f9-4731-ad8d-6292f046efcb Greece | |
| 3ffba179-c6e2-4e37-a756-6582ac233bca Hungary | |
| ccb46602-b602-491f-b888-51c86f1c28d3 Germany | |
| 77e37cfc-7912-4c5f-b389-76182840d593 Croatia | |
| b3290f26-6e62-4d5a-a45e-b18271e9ed25 Portugal | |
| b0f9d7e3-b90c-47e1-bced-631c5eca8b0a Germany | |
| 5948241c-ea53-4631-8000-27b71d77d252 Norway | |
| c2f23de2-c1f9-4731-ad8d-6292f046efcb Greece | |
| 77e37cfc-7912-4c5f-b389-76182840d593 Croatia | |
| be6b53eb-2e2b-4e54-8553-36748553deb8 France | |
| 8f887146-9a43-4654-be1d-4aa9745270bd Germany | |
| 41b18c5f-2334-497d-ad81-0c5a091b97af Sweden | |
| 9a96a8f9-592b-4ca8-8a1d-2313cbbcb6c5 Netherlands | |
| 5008162f-5739-4631-9cab-89e61e9e5cd0 Finland | |
| 5dd335e0-bb09-4aa5-b997-e85c1d7efde6 Hungary | |
| 6c221fc5-26f1-4ed9-808f-c24bbe4eed04 Spain | |
| bb2394bb-47a3-497d-acc1-c36b69dfe409 Estonia | |
| 9a96a8f9-592b-4ca8-8a1d-2313cbbcb6c5 Netherlands | |
| 3ffba179-c6e2-4e37-a756-6582ac233bca Hungary | |
| 459d7944-828c-435f-8739-be4619b51bd5 Bulgaria | |
| 262b88de-c3c8-43e5-98ac-c383239d15e3 Czech Republic | |
| c4243989-3779-41ff-b138-9e4ee984d1bc Poland | |
| 11a47997-b948-4d73-ab2a-8994d10e93f0 France | |
| f3ac34f3-524f-43fb-b8a7-5b83c55071ae Belgium | |
| bb2394bb-47a3-497d-acc1-c36b69dfe409 Estonia | |
| 6c221fc5-26f1-4ed9-808f-c24bbe4eed04 Spain | |
| 5dd335e0-bb09-4aa5-b997-e85c1d7efde6 Hungary | |
| be6b53eb-2e2b-4e54-8553-36748553deb8 France | |
| 41b18c5f-2334-497d-ad81-0c5a091b97af Sweden | |
| 11a47997-b948-4d73-ab2a-8994d10e93f0 France | |
| ccb46602-b602-491f-b888-51c86f1c28d3 Germany | |
| b0f9d7e3-b90c-47e1-bced-631c5eca8b0a Germany | |
| 0a9498c7-0d05-469f-abac-3d669e38e78d Poland | |
| 61350103-c802-4335-a4ca-1f61faa02492 Sweden | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT5NE340ABFF000XXX |
| E-Number (Finland) | 3641302 |
| E-Number (Norway) | 4380244 |
| EAN | 8056221004220 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.775 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 250 mm |
| Package Level 1 Height | 245 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.263 kg |
| Package Level 1 EAN | 8056221004220 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002065A1115 |
| 1SDH002065A1131 | |
| Technical | |
| Current Type | AC/DC |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Power Loss | 24.1 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 2000…4000 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (240 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 25 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMA |
| Release Type | TM |
| Setting Range | 280…400 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT5 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK107680A2824 |
| Mechanical Drawings | 1SDH002011A1101 |
| Wiring Diagram | 1SDM000005A1001 |
| Instructions and Manuals | 1SDH002011A1001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 400 A |
| Rated voltage (EF003977) | 690 V |
| Overload release current setting (EF002336) | 160.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 2000 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
