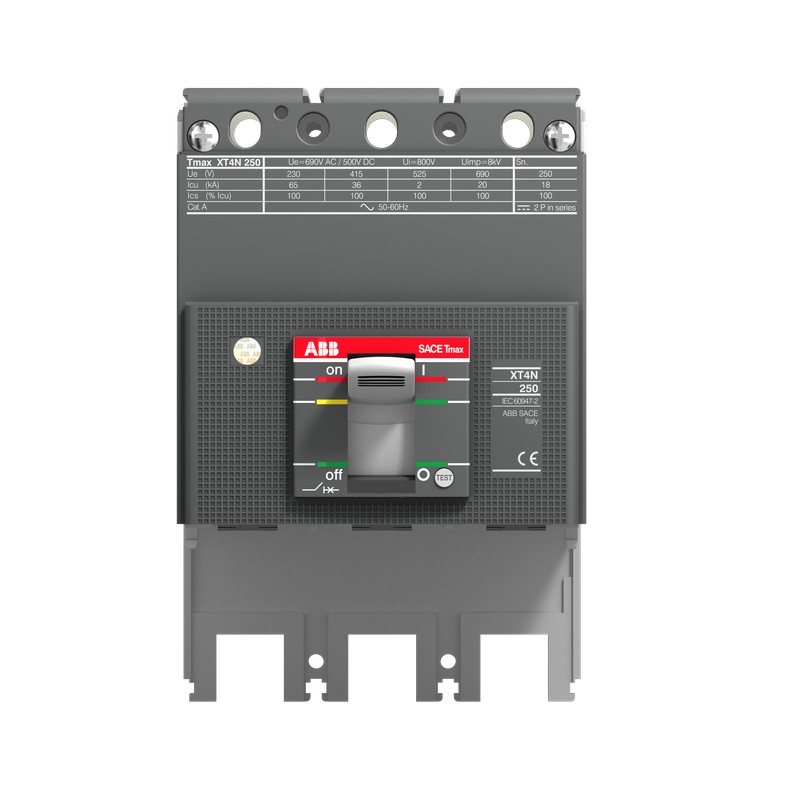

1SDA100266R1 ABB XT4X 250 INTERRUPT PART 3p F F
1SDA100266R1
ABB
XT4X 250 INTERRUPT PART 3p F F
XT4X 250 BREAKING PART 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2351 |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | bfe10f5e-247e-4d41-a721-49746f3a9e7c Italy |
| Simplified SCIP | b26cffe0-ac8f-4e01-b483-4049b2ca38c3 Germany |
| a3ea00af-acd5-4f16-9b46-9645b70d913e Netherlands | |
| 7b90c1d3-30c9-4a00-9ddd-84212a775796 Spain | |
| 5f875c74-515a-4ea3-aec3-0f283c7ab6c5 Norway | |
| 89a8c6a1-ceff-4054-9052-18d54202ad88 Finland | |
| 63e2e523-0a48-4a20-80ac-20eb4370dfa5 Netherlands | |
| f49b74e8-49f8-4bae-8775-815170305aaf Germany | |
| ec66acda-a1b0-4f12-842a-53397f9b93c2 Denmark | |
| bcb7ad45-0807-43d7-967f-b2552fdab7d5 Poland | |
| 9124979e-1a7c-45df-95b4-667252808f49 Germany | |
| 362860da-6049-46f4-a837-9d26c0790262 Croatia | |
| 144e2821-bb4f-4980-a027-2da21e2b67f3 Czech Republic | |
| 7b708578-944c-4c52-aafe-731d2cacb002 Poland | |
| 62fd702d-ae86-453f-b98c-0fd189085dcc Netherlands | |
| 65d56e88-f407-4be8-bad2-93e8fd2f2ff2 Netherlands | |
| 8728a2fa-6343-4c89-8fff-989a8280e96b Estonia | |
| fb4d789f-7c10-4dc8-b56a-fd05e2aa03cc Greece | |
| d4fcafa2-1278-4710-bcf8-4d5c07515cb7 Portugal | |
| 6563248e-88e3-4c20-8e33-b04e49c5cb83 Bulgaria | |
| f19c966a-5a32-4b7a-956b-ae57e32ab923 Sweden | |
| 41af66de-c21b-4b6b-8bdc-f0ea2fb4f495 Poland | |
| a35571a9-e23d-4dc3-84fa-077751d89f6c France | |
| 927a4462-d6fe-43b7-9c32-ed0c577cdfd0 Sweden | |
| 9194195b-0a4b-4547-9985-d00554414db6 Germany | |
| 5afccfcf-cbe1-49d2-a155-fffde5e8cfa3 Germany | |
| 52a58314-b48f-42a5-8491-2bafb7fa3e3f France | |
| ca604347-37d1-4784-a8d3-1e1b9942679e Netherlands | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641121 |
| E-Number (Norway) | 4380010 |
| EAN | 8056221003209 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 8.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 9.7 kg |
| Package Level 1 EAN | 8056221003209 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 120 cycles per hour |
| 10000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 200 kA | |
| (415 V AC) 200 kA | |
| (440 V AC) 200 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (240 V AC) 200 kA | |
| (380 V AC) 200 kA | |
| (415 V AC) 200 kA | |
| (440 V AC) 200 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| (250 V DC) 2 Poles in Series 100 kA | |
| (500 V DC) 2 Poles in Series 100 kA | |
| (500 V DC) 3 Poles in Series 100 kA | |
| (750 V DC) 3 Poles in Series 70 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Short-Circuit Performance Level | X |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 2CDC210017C0101 |
| 1SDC210100D0206 | |
| 1SXF210033C2001 | |
| 1SDC210099D0206 | |
| 1SXF210034C2001 | |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| Wiring Diagram | |
| Instructions and Manuals | 1SDH000722R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MOLDED CASE ISOMAX-TMAX 2024 EN.pdf | 71 Mbytes |
|
| 1SDA100266R1 1SDA100266R1 EN_1SDA100266R1.pdf | 332 Kbytes |
|
