> ABB>Molded Case Circuit Breakers ≤ 250 A Xtmax>1SDA100262R1 ABB XT4V 250 INTERRUPTING PART 3p F F
ANUNCIAR
Previous Product Next Product

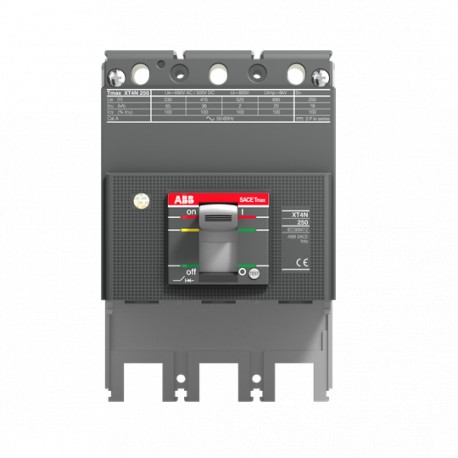

1SDA100262R1 ABB XT4V 250 INTERRUPTING PART 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA100262R1 ABB XT4V 250 INTERRUPTING PART 3p F F

1SDA100262R1

ABB

XT4V 250 INTERRUPTING PART 3p F F

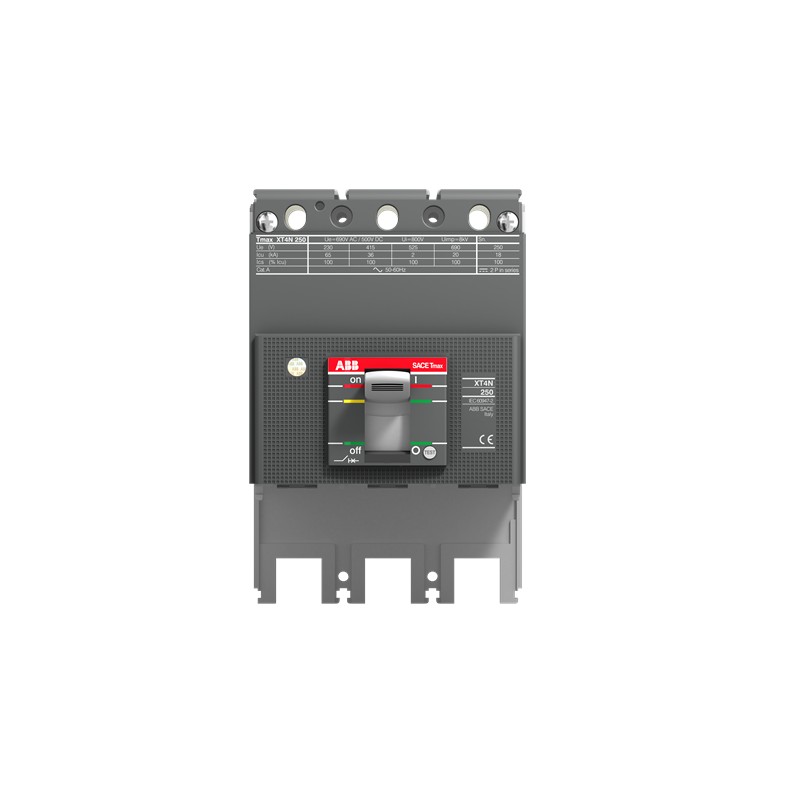

BREAKING PART TMAX XT4V 250 FIXED THREE-POLE WITH FRONT TERMINALS

More details


Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection

Molded Case Circuit Breakers ≤ 250 A Xtmax

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $1,113.57
Unit price: $1,113.57
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
XT4V 250 BREAKING PART 3p F F
Product ID:
1SDA100262R1
EAN:
8056221003162
Catalog Description:
XT4V 250 BREAKING PART 3p F F
Long Description:
BREAKING PART TMAX XT4V 250 FIXED THREE-POLE WITH FRONT TERMINALS
\n

Ordering

EAN:
8056221003162
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099

Dimensions

Product Net Width:
105 mm
Product Net Height:
160 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
8.2 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
305 mm
Package Level 1 Height:
285 mm
Package Level 1 Depth / Length:
370 mm
Package Level 1 Gross Weight:
9.7 kg
Package Level 1 EAN:
8056221003162

Additional Information

Electrical Durability:
120 cycles per hour

10000 cycle
Mechanical Durability:
240 cycles per hour

25000 cycle
Number of Poles:
3
Order Multiple:
1 piece
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
CBBU
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC

750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 200 kA

(230 V AC) 200 kA

(240 V AC) 200 kA

(380 V AC) 150 kA

(415 V AC) 150 kA

(440 V AC) 150 kA

(500 V AC) 70 kA

(525 V AC) 50 kA

(690 V AC) 25 kA

(250 V DC) 2 Poles in Series 100 kA

(500 V DC) 2 Poles in Series 100 kA

(500 V DC) 3 Poles in Series 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 200 kA

(230 V AC) 200 kA

(240 V AC) 200 kA

(380 V AC) 150 kA

(415 V AC) 150 kA

(440 V AC) 150 kA

(500 V AC) 70 kA

(525 V AC) 50 kA

(690 V AC) 25 kA

(250 V DC) 2 Poles in Series 100 kA

(500 V DC) 2 Poles in Series 100 kA

(500 V DC) 3 Poles in Series 100 kA
Rated Uninterrupted Current (Iu):
250 A
Short-Circuit Performance Level:
V
Standards:
IEC 60947
Sub-type:
XT4
Terminal Connection Type:
Fixed Circuit-Breakers
Version:
F

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC210100D0205
1SDC210099D0205
Declaration of Conformity - CE:\n9AKK106713A5529
Instructions and Manuals:\n1SDH000722R0001

Classifications

ETIM 6:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MOLDED CASE ISOMAX-TMAX 2024 EN.pdf 71 Mbytes
1SDA100262R1 1SDA100262R1 EN_1SDA100262R1.pdf 332 Kbytes 1SDA100262R1 1SDA100262R1 EN_1SDA100262R1.pdf
