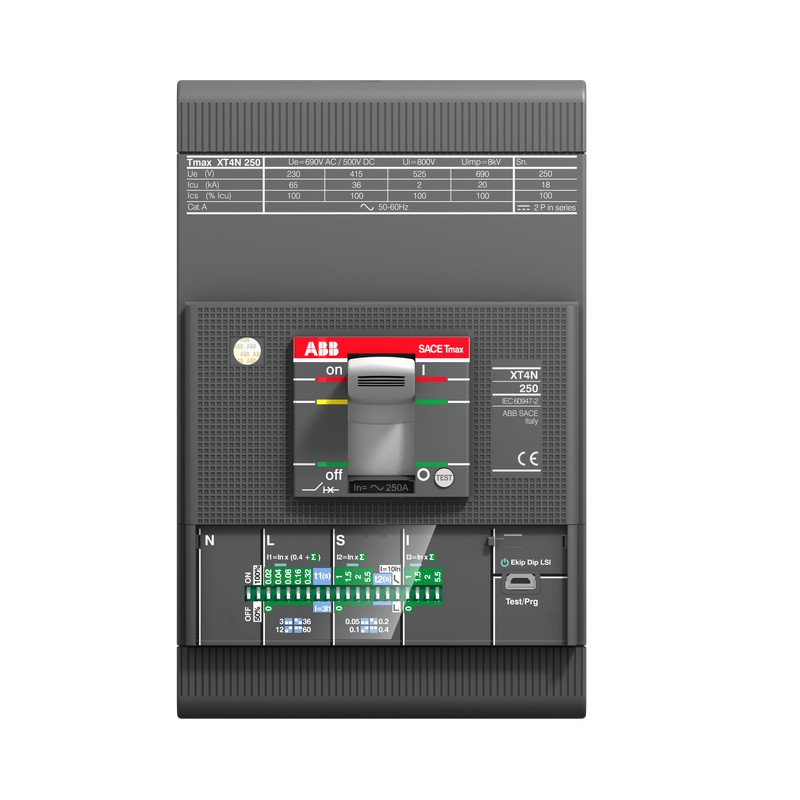

1SDA100215R1 ABB XT4S 250 Ekip Dip LIG In 250A 3p F F
1SDA100215R1
ABB
XT4S 250 Ekip Dip LIG In=250A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2352 |
| Environmental Product Declaration - EPD | 9AKK108469A1858 |
| 9AKK108468A1898 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3dd98711-50e9-4ea0-9b0d-2d1ce869144a China |
| Simplified SCIP | 6eca24ec-d4ba-4735-bf87-a7a4dd0cb6a8 Netherlands |
| e8a30ec2-1c3f-485c-9cde-461b52e5263c Croatia | |
| b4bea7cb-9482-4830-9673-258d23844d52 Finland | |
| 271b5a14-34df-4074-8105-c729ce0ce960 Belgium | |
| 949d6c89-b7ce-46ca-b345-6265235b1061 Germany | |
| d92cd7d3-45e0-49de-a7de-9b5db87e6f4a Germany | |
| 8d5d7ba9-b43d-4280-8154-fffa04fbb2cc Denmark | |
| 2d976661-1185-44bd-a6bc-fc99d385d952 Hungary | |
| 7fa36a94-e650-4252-8826-fabb8b11cbb9 Portugal | |
| e57d0d19-edbd-42f4-a213-61796e3038e3 France | |
| f4a6f4dc-b8bb-457e-8db3-2251c6379168 Germany | |
| 934b5359-371c-4a05-be10-068dd90151c7 Sweden | |
| 08282421-8e6c-4a3b-9e5e-7792686c1122 Sweden | |
| 7df9dd0d-d00f-4336-a413-f50d572691ad France | |
| c40a48cd-c77b-4799-ad7b-09f74cb60089 Bulgaria | |
| 389cdf00-06b2-4213-8539-8c10a9c3d910 Poland | |
| 0099ea5d-7bbd-4ce7-9c78-63a93cdb4b7e Poland | |
| 7263bc82-95ce-48bb-800b-000d8f1ced01 Norway | |
| 39635546-d68d-4ed5-b24a-f665b08939be Spain | |
| 9e8465a3-3993-439b-8d10-922da396cdd1 Germany | |
| 42fb53c0-0859-438a-b79c-a167cac42758 Germany | |
| b013011e-c71d-4047-bedb-0f91193014fc Hungary | |
| 82844890-e0dd-4373-9061-b5f3b8449d2d Belgium | |
| a17be87d-29b8-45ce-9afe-7e21933b45f8 Czech Republic | |
| 5972757f-ecb6-4545-9c7c-bfa9d1a17c3d Poland | |
| 190c92f6-c6dd-433d-9496-b82892cbbc09 Estonia | |
| b62074b9-1f26-4ccb-a939-ba06793ae5e9 Greece | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT4SE3250CFF000XXX |
| EAN | 8056221002691 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.05 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 145 mm |
| Package Level 1 Height | 210 mm |
| Package Level 1 Depth / Length | 168 mm |
| Package Level 1 Gross Weight | 2.5 kg |
| Package Level 1 EAN | 8056221002691 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002230A1003 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 16.4 W |
| Rated Current (In) | 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Release | Ekip Dip LIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| Mechanical Drawings | 1SDH000722R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000722R0001 |
| 1SDH000721R0505 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
