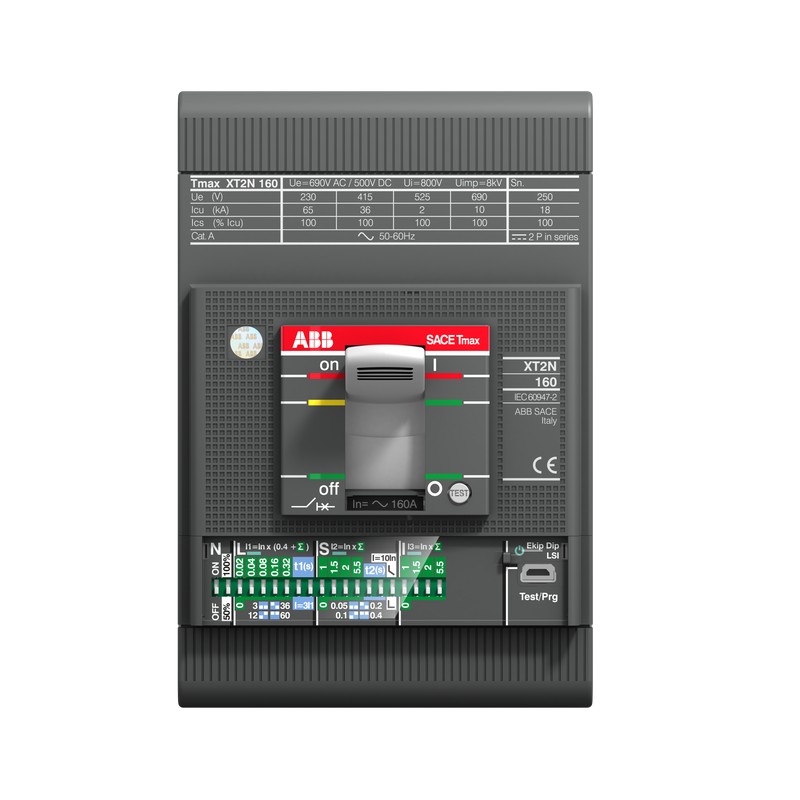

1SDA100044R1 ABB XT2S 160 Ekip Dip LIG In 160A 3p F F
1SDA100044R1
ABB
XT2S 160 Ekip Dip LIG In=160A 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2349 |
| Environmental Product Declaration - EPD | 9AKK108469A1855 |
| 9AKK108468A1897 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 860c1dba-3d1f-4f2e-a084-88084d37a36c China |
| Simplified SCIP | 59e597de-eb85-44b4-b51e-a5e733b01fae Greece |
| 7ad91208-162f-41d8-ba54-3c459dadf637 Germany | |
| c1199ae3-7fd7-4f39-ac30-6d0902036421 Norway | |
| a2615f4c-6237-42f9-8fbc-eedea123d42c Finland | |
| 7cc1adcd-f228-4588-986b-aba046f29c06 Belgium | |
| 24bea02f-20e3-45ed-80e4-24784a76eb4f Hungary | |
| 149493a3-18d6-48b1-94f0-d99bf6e3dba7 Netherlands | |
| 67c4590d-5889-4953-bd31-8efb5b394fa1 Germany | |
| 5739a33f-d610-4ede-829c-f518b8b4a069 France | |
| ea6a56a9-1f17-448e-a5ca-782e93542bc9 Sweden | |
| 5725243c-1dcd-400e-8ba2-5d0cd036aafd France | |
| bdacb285-55c2-4535-9747-bd4d4c720350 Sweden | |
| e773f14a-7264-47ca-a848-a45851a2d050 Spain | |
| f64a5eb6-1f72-444c-bd30-59908fe3b29d Estonia | |
| 01cdb2a8-83c9-4600-8935-3c785dd6c4aa Bulgaria | |
| 9d46994e-3739-450b-8ae0-f9c838dbac84 Poland | |
| 52f29c1f-d565-448d-a8c4-b483e6f25100 Portugal | |
| 1839d522-a044-4d86-b000-0067c8d6dd92 Croatia | |
| 62d9bcf7-12e9-492b-8d19-5675ac4dc786 Poland | |
| 14417ec7-e37a-4c88-8101-38ff3ebc26a1 Czech Republic | |
| 70ac12e0-a5cb-4fe7-8de3-4a8596cb970c Germany | |
| 30898f7b-e7b1-458b-94c5-9a63ef7babbc Germany | |
| 686a07b2-a1d8-4dfc-8d44-9c712f29f5cf Denmark | |
| 81a0d762-eb77-4cf0-9870-5e42814868e6 Belgium | |
| 3349dc6e-b195-4719-99ce-fbd9489d7495 Poland | |
| 8e3a02d3-67c9-4ca0-9705-22c1603e1526 Hungary | |
| ade72150-f63d-4e08-a472-8808ef452ce4 Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT2SE3160CFF000XXX |
| EAN | 8056221000987 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.642 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Height | 208 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Gross Weight | 1.728 kg |
| Package Level 1 EAN | 8056221000987 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002230A1001 |
| Technical | |
| Current Type | AC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 16.1 W |
| Rated Current (In) | 160 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Release | Ekip Dip LIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| Mechanical Drawings | 1SDH000721R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000721R0001 |
| 1SDH000721R0505 | |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
