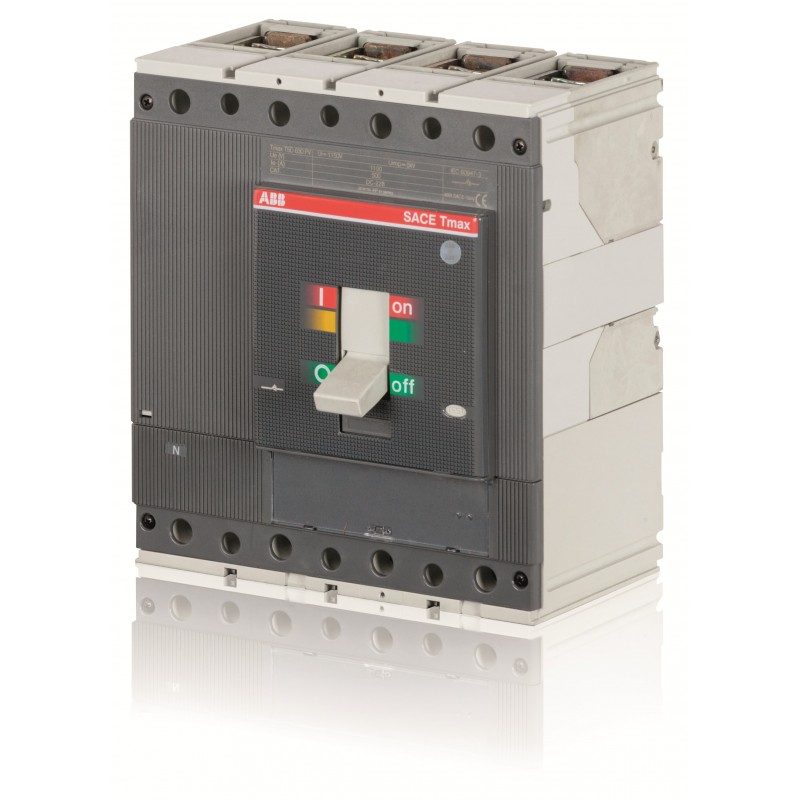

1SDA076898R1 ABB T5D/PV-E 500 4p F F 1500V DC
1SDA076898R1
ABB
T5D/PV-E 500 4p F F 1500V DC
Low-voltage industrial components > Switch disconnector
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 59cd007c-9872-45c8-adca-9d60eafa55c9 Italy |
| Simplified SCIP | 57dc1c49-0bec-40ea-aae1-3e4dac9c3052 Hungary |
| 8e79ab79-ed81-4330-a83b-84b5848c48a4 Spain | |
| 94415f3d-a32d-4748-96a3-bfe3a16b5bf8 Belgium | |
| d28d76f5-e7ae-401d-90bf-c5721c26896c Bulgaria | |
| e569dfc7-a26e-44b5-b6cb-349e3bab1bc7 France | |
| 12a1203a-519e-4255-904b-1b766045bb87 Germany | |
| 02c55e6f-7332-41e2-a41a-31169c67e7ec Germany | |
| 2f6bd880-e5e6-4feb-94a4-50d3d1904870 Sweden | |
| bc8c31df-a728-4254-99ed-43e373151301 France | |
| ccc8a468-7b99-42fe-800c-225a40edc4ac Poland | |
| df05c3c4-00c4-4c7c-9874-a196c527b667 Germany | |
| 935def01-4bd9-427c-88e0-3b94549c4ddd Finland | |
| bc2fca09-e2ed-4960-8549-761e464c8cef Norway | |
| 9980ab38-c687-481b-88c6-3de9d24fa1a8 Belgium | |
| 32572fc3-b35e-4183-ac55-8d0e273f056b Greece | |
| 8021366f-e3d4-408c-9b5a-c8e93339981e Portugal | |
| 687d6cd2-8fa0-4d42-aef3-38740eb5e15e Estonia | |
| 571f9fe8-eca0-4f90-b38a-5dd65d90adb8 Sweden | |
| 0270cfcb-0ff1-421d-9760-70b56c72117b Hungary | |
| b0093105-e407-4a62-aca3-93f723120309 Netherlands | |
| f0e5e16f-3903-40f9-af00-f784d43d7e72 Croatia | |
| d6ae7408-27bd-4dd2-8c63-b27c426b0906 Czech Republic | |
| 333d82e7-a35c-4152-848c-4d444eb50475 Poland | |
| 3038c266-c3c0-4a6e-ac16-be89577f264e Germany | |
| 934301b2-b7cc-4696-82da-0b813b108237 Denmark | |
| ecc1d797-20b6-4856-94b5-38c1180ded71 Germany | |
| 7ba75906-6295-4b7d-aacf-97aecd8e3bf7 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644833145 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85352100 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 104.5 mm |
| Product Net Weight | 4.15 kg |
| Gross Weight | 4.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 4.5 kg |
| Package Level 1 EAN | 8015644833145 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T5 |
| Version | F |
| Technical | |
| Current Type | DC |
| Electrical Durability | 1000 cycle |
| Mechanical Durability | 7500 cycle |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 30 W |
| Rated Current (In) | 500 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1500 V DC |
| Rated Operational Voltage | 1500 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 6 kA |
| Rated Uninterrupted Current (Iu) | 500 A |
| Rated Voltage (Ur) | 1500 V DC |
| Remarks | ATLAS |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A9776 |
| Instructions and Manuals | 1SDH000780R0004 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Rated permanent current Iu (EF001389) | 500 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 500 A |
| Rated short-time withstand current lcw (EF007050) | 6 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Toggle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
