1SDA068181R1 ABB XT4L250 PART OF 4P F INTERRUPTION
1SDA068181R1
ABB
XT4L250 PART OF 4P F INTERRUPTION

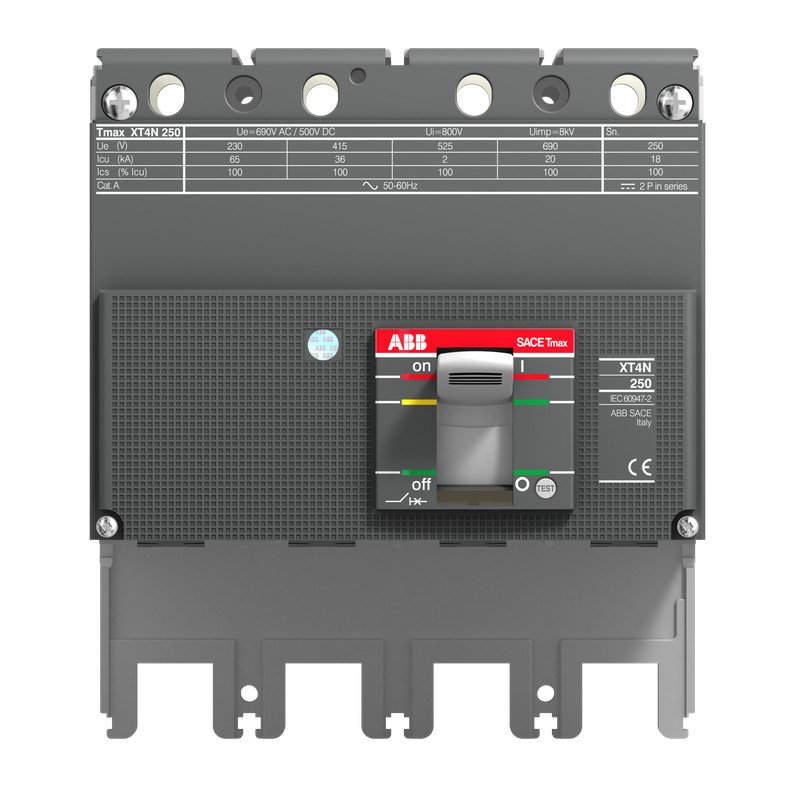

BREAKING PART TMAX XT4L 250 FIXED FOUR-POLE WITH FRONT TERMINALS
Molded Case Circuit Breakers ≤ 250 A Xtmax
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
Extended Product Type:
XT4L 250 BREAKING PART 4p F F
Product ID:
1SDA068181R1
EAN:
8015644020781
Catalog Description:
XT4L 250 BREAKING PART 4p F F
Long Description:
BREAKING PART TMAX XT4L 250 FIXED FOUR-POLE WITH FRONT TERMINALS
Ordering
EAN:
8015644020781
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090
Dimensions
Product Net Width:
140 mm
Product Net Height:
160 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
2.65 kg
Container Information
Package Level 1 Units:
1 piece
Package Level 1 Width:
171 mm
Package Level 1 Height:
215 mm
Package Level 1 Depth / Length:
151 mm
Package Level 1 Gross Weight:
3.1 kg
Package Level 1 EAN:
8015644020781
Environmental
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Additional Information
Electrical Durability:
120 cycles per hour
8000 cycle
Mechanical Durability:
Nr. Operations 240 cycles per hour
Nr. Operations 25000 cycle
Number of Poles:
4
Opening Time:
CB with SOR 15 ms
CB with UVR 15 ms
Order Multiple:
1 piece
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
CBBU
Rated Frequency (f):
50 / 60 Hz
Rated Voltage (Ur):
690 V
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 150 kA
(230 V AC) 150 kA
(240 V AC) 150 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 60 kA
(525 V AC) 50 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 85 kA
(500 V DC) 2 Poles in Series 85 kA
(500 V DC) 3 Poles in Series 85 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 150 kA
(230 V AC) 150 kA
(240 V AC) 150 kA
(380 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 60 kA
(525 V AC) 50 kA
(690 V AC) 20 kA
(250 V DC) 2 Poles in Series 85 kA
(500 V DC) 2 Poles in Series 85 kA
(500 V DC) 3 Poles in Series 85 kA
Rated Uninterrupted Current (Iu):
250 A
Short-Circuit Performance Level:
L
Standards:
IEC
Sub-type:
XT4
Terminal Connection Type:
Fixed Circuit-Breakers
Version:
F
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:\n9AKK106713A5529
GL Certificate:\n1SDL000163R0095
Instructions and Manuals:\n1SDH000722R0001
LR Certificate:\n1SDL000163R0100
Classifications
ETIM 6:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code:
Q
UNSPSC:
39120000
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MOLDED CASE ISOMAX-TMAX EN.pdf | 25 Mbytes |
|
