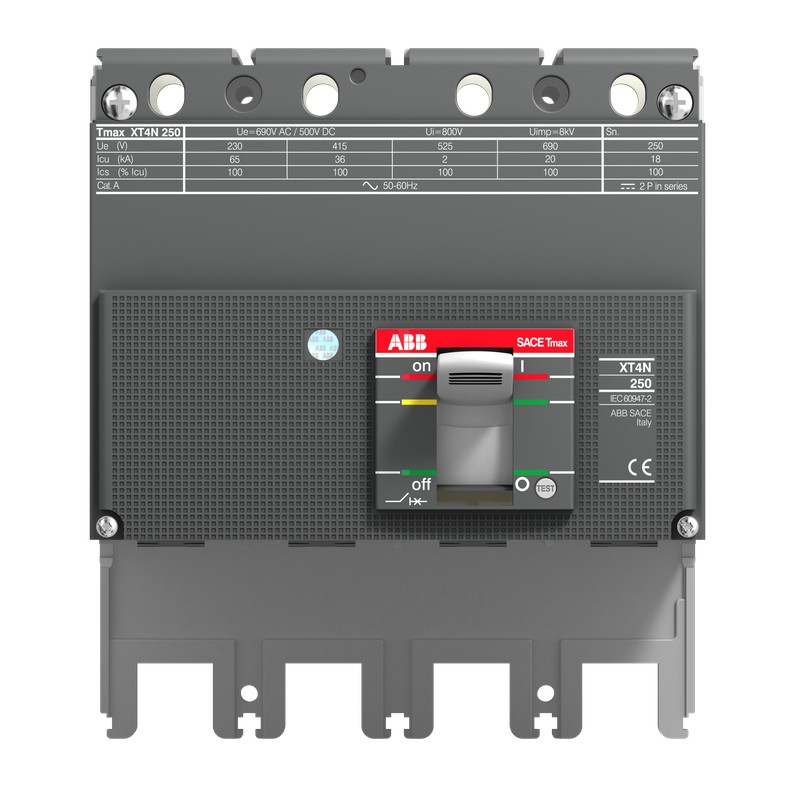

1SDA068178R1 ABB XT4N250 PART OF 4P FRUPTION
1SDA068178R1
ABB
XT4N250 PART OF 4P FRUPTION
XT4N 250 BREAKING PART 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2351 |
| Environmental Product Declaration - EPD | 9AKK108469A1857 |
| 9AKK108468A1892 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 56.30 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 03e9bd14-b6d0-4186-9ab3-b2fb278970e2 Italy |
| Simplified SCIP | fbb58a1d-39bf-4872-ad55-1de27f538e61 Germany |
| 8a9216c8-aa95-4981-9c57-c1df020e16dc France | |
| c34d76be-9923-40e0-b8f1-4464bfad69c7 Sweden | |
| 356495e3-67c8-4193-810f-f9428da025e5 Germany | |
| e3ff7380-6cc7-4d80-8929-221f36c19fa4 Germany | |
| f0ae7b2c-e011-4bc5-9aec-662c4685c026 France | |
| 63f093a3-ec35-47a7-892f-00b4a798e1f2 Netherlands | |
| f4d2b47f-28b7-4843-8fa5-05be4d645a55 Spain | |
| 645ea2d6-4db6-4d31-97e3-1e09856e1c16 Netherlands | |
| 08d702d7-4383-4d95-96a0-2a2afbbe14ed Poland | |
| 073603d7-1e38-4381-91a2-f52de966c0f1 Norway | |
| f8a81c18-c8da-4db5-8c41-cf071e7a42c5 Finland | |
| c2dfbdf2-0e11-4e77-9b02-0d9902468d53 Netherlands | |
| efed6ba7-7f9b-4673-9f5b-c7091a6ec656 Germany | |
| 8f75a2f1-e4f8-4997-99e5-690d6c6d477a Denmark | |
| 0ce26abb-cbe4-493d-9f4d-96d415a92a1f Germany | |
| d9d46828-4dc0-4c3d-be54-8b85444cb209 Croatia | |
| 6385a036-e5f6-4587-87e4-a8d2ffbdd15f Czech Republic | |
| a0ddc63b-e66e-4a39-b15f-d763343a94f2 Poland | |
| 1a20c1c7-f019-4624-93fe-d768d286c3d0 Netherlands | |
| 79f74b0d-b14b-4418-a3c7-4f0b1f64c995 Netherlands | |
| 3acac2fc-9b99-4a4a-9213-99c0872d821a Estonia | |
| cd6dd3b1-f2ba-442d-acca-06d88641549f Greece | |
| 10b970e2-ea75-4ac0-a94a-0961214075ad Portugal | |
| d07a8875-3198-473f-852b-db3e2ec7742c Bulgaria | |
| 3f844396-2752-4132-93ae-e51beba350a1 Sweden | |
| bfd7d743-3c9c-4943-ba72-cc5c34a7888b Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3641070 |
| E-Number (Norway) | 4380184 |
| EAN | 8015644020750 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 160 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.65 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 171 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Depth / Length | 151 mm |
| Package Level 1 Gross Weight | 3.1 kg |
| Package Level 1 EAN | 8015644020750 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT4 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5529 |
| GL Certificate | 1SDL000163R0095 |
| LR Certificate | 1SDL000163R0100 |
| Instructions and Manuals | 1SDH000722R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
