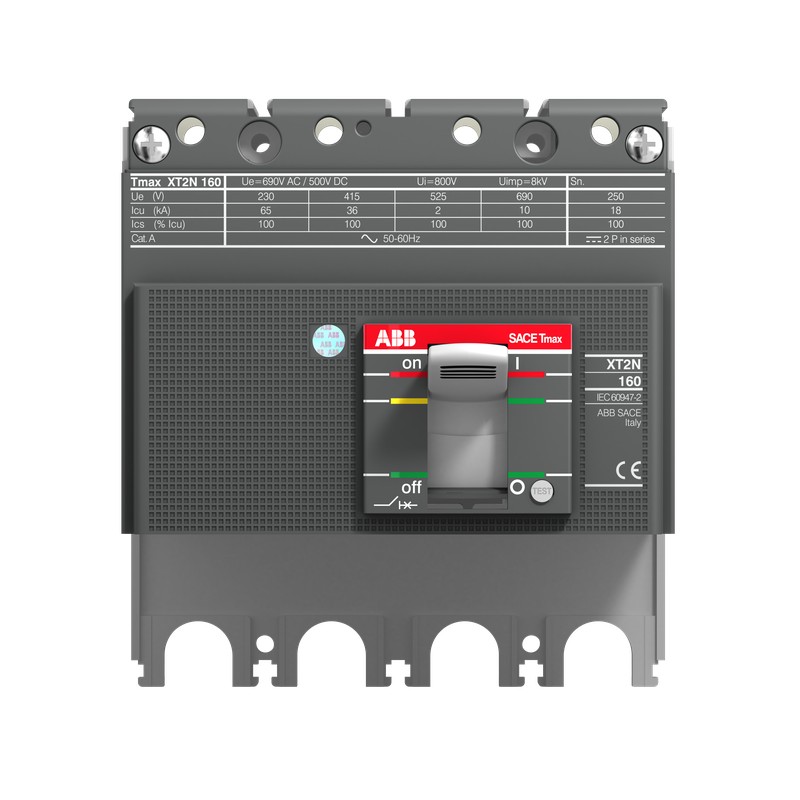

1SDA068169R1 ABB XT2S160 PART OF 4P FRUPTION
1SDA068169R1
ABB
XT2S160 PART OF 4P FRUPTION
XT2S 160 BREAKING PART 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2348 |
| Environmental Product Declaration - EPD | 9AKK108469A1856 |
| 9AKK108468A1891 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b0db87c8-b702-4b4c-ad2b-13e13fda7fa6 Italy |
| Simplified SCIP | e80ae7f8-9c46-4f2b-ad2c-35bd2fcbc20d Germany |
| c24ea644-f98c-4065-867d-49188f619fad Germany | |
| 56139cad-3b20-44e3-822b-17c71bf47a6d Germany | |
| cf075ee5-52a8-4402-a51f-42119b67c525 France | |
| eeb55abd-149f-4fa8-971f-2f0b8bb7a3cc Sweden | |
| 2a38d8ce-6f6d-4910-8f69-898805c76de7 Poland | |
| 91657a13-6af4-46ee-b701-999712af0344 Netherlands | |
| acc76a67-d01c-4a8f-9701-8dd1c0f854ad Spain | |
| 59aa20c6-5ff3-41bf-8772-42429a601853 Netherlands | |
| be19b62d-b7a8-4f94-aaa8-0e673a3f5548 Poland | |
| e94731f0-0d84-4310-a70d-7dcc62fcb221 Norway | |
| d286803e-6888-4412-8a83-87e814a3ecca Finland | |
| 0378bdcd-5834-4902-bf0f-b3f545c52371 Netherlands | |
| 0f68ee26-9c96-41ec-ac07-9605635785f3 Germany | |
| abbf313b-77f5-4b4b-8487-6d3d91693087 Denmark | |
| cce34289-9885-4a59-9559-38090121c429 Germany | |
| 7df56226-ee32-4fd1-be82-2c57fed5c121 Croatia | |
| 48ca0d7a-e067-4e3b-b31c-d35aca7cc785 Czech Republic | |
| be11f1d2-aad4-4f35-9a56-3e56e1b7bef0 Poland | |
| be34899d-2f3f-4154-ac6b-45d8b8f975cd Netherlands | |
| 2c5284b3-6994-4c28-bb3b-491037d46d73 Netherlands | |
| 6db1b227-6217-469a-ab74-69676fd0144c Estonia | |
| 0ace0fbd-a631-4639-9f31-1551a5734a54 Greece | |
| 3f318fb6-978d-4a7b-8751-8af25cf9899f Portugal | |
| 9674dc28-18af-422b-9a69-605e0a25aa0f Bulgaria | |
| 1f73f27f-d7f7-4c67-a0cc-aa928e3f10f8 France | |
| 5585bf5a-aeac-4ee3-90b5-c865d6d5de37 Sweden | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3640589 |
| E-Number (Norway) | 4379739 |
| EAN | 8015644696160 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 120 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Depth / Length | 135 mm |
| Package Level 1 Gross Weight | 1.3 kg |
| Package Level 1 EAN | 8015644696160 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| Instructions and Manuals | 1SDH000721R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
