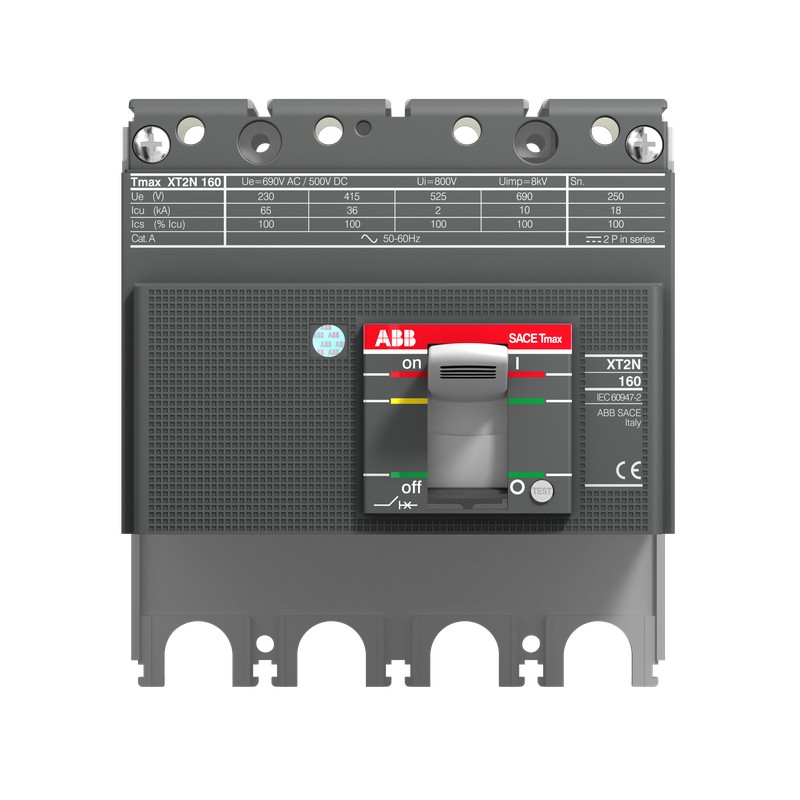

1SDA068168R1 ABB XT2N160 PART OF 4P F INTERRUPTION
1SDA068168R1
ABB
XT2N160 PART OF 4P F INTERRUPTION
XT2N 160 BREAKING PART 4p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2348 |
| Environmental Product Declaration - EPD | 9AKK108469A1856 |
| 9AKK108468A1891 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | abb54cbb-c3f9-4225-935d-2db788a80d85 Italy |
| Simplified SCIP | 6a664763-889c-46a4-8ed5-a1a857d4dc8c Germany |
| 5c9fb46b-0a45-45cd-bc25-d03745cb1dcb Bulgaria | |
| cb8cbf6f-2636-4092-946a-956c1f5165ca Sweden | |
| bad24356-02f5-42bf-99b9-795c72583037 Poland | |
| 16ccc3f2-4afe-4685-8b94-15ecb7180d67 France | |
| 21a83cd5-249c-4d24-bd48-c0ed64a5eed1 Sweden | |
| 896065a9-4f85-4f77-b3d8-a432b4aa7ff5 Germany | |
| e35360be-fdee-4b45-9036-9957280b2ad1 Germany | |
| ae4b2d48-9c47-4742-ad08-9f07a8777aae France | |
| c8d3d494-2209-412d-97e4-7f356078edc7 Netherlands | |
| 2c397cb4-5c71-4db2-b7d6-ba353735724f Spain | |
| 256a913b-1409-4d56-b27b-6d6dfff73414 Netherlands | |
| cbc93482-e28c-4067-8877-5629394b5e62 Poland | |
| 4767c3ab-0e06-4841-83fd-dbf98929a47c Norway | |
| 683e10b8-b43f-47b7-94b0-c5cc2c22ec13 Finland | |
| 2b72199a-b47b-40d3-ad45-45903d8b595f Netherlands | |
| cf89cc07-da61-416f-99e2-c68d5a32e936 Germany | |
| 4361471b-fe91-4291-93ea-c4a6f5810bc6 Denmark | |
| 1d6f0819-7f79-419f-80ae-dc3f7509c88a Germany | |
| a8efddda-0b98-477b-9b2b-e8fd21968bd2 Croatia | |
| 11c3743f-784b-4680-9bbe-92ec01cf8202 Czech Republic | |
| bfeeff8d-f810-4796-a404-73a76b28cec5 Poland | |
| 9e189d7e-fba5-42e2-ba30-37dbec851199 Netherlands | |
| ef4e8654-9e88-4adc-af6e-a04444ffcb6b Netherlands | |
| 28a59e6e-55d5-4903-ab35-80fa1ee0261f Estonia | |
| 12e7647c-edd4-456b-a6b3-ffcd15b039f1 Greece | |
| 4db1be6e-d88d-4dda-b1e0-de4786320ff1 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3640564 |
| E-Number (Norway) | 4379738 |
| EAN | 8015644020651 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 120 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Depth / Length | 135 mm |
| Package Level 1 Gross Weight | 1.3 kg |
| Package Level 1 EAN | 8015644020651 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| Instructions and Manuals | 1SDH000721R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MOLDED CASE ISOMAX-TMAX 2024 EN.pdf | 71 Mbytes |
|
