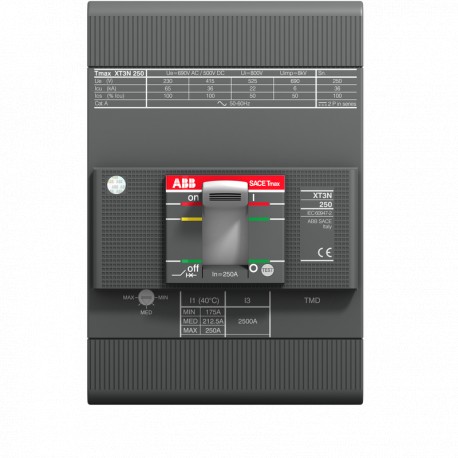

1SDA068057R1 ABB C.BREAKER TMAX XT3N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TM..
1SDA068057R1
ABB
C.BREAKER TMAX XT3N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 160-1600 A
XT3N 250 TMD 160-1600 3p F F
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 56.6 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2350 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108468A2294 |
| 9AKK108468A7794 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 9bbfba75-9598-428d-b05c-f0866bf2751d Italy (IT) |
| Simplified SCIP | 186dcd54-25fa-4101-9c9d-b698b1d9acbd Germany (DE) |
| 0f0b6c02-b429-4c5b-926f-cb98f2d67a2a Netherlands (NL) | |
| 98303b6e-e09e-4d19-b13c-ca9a183fa838 Germany (DE) | |
| 9c07c0e2-1148-4ec8-86fe-83805de4787c Sweden (SE) | |
| d6110866-5eb1-4998-846a-f3abb00c6ac8 Germany (DE) | |
| b6b5a8ba-d149-47be-86db-2706e8b5d07a Croatia (HR) | |
| 9c8684f1-75a6-411d-b40c-b2c1eb903a29 Poland (PL) | |
| 66e732e6-a80f-46ea-9100-dc9681f76b58 Norway (NO) | |
| a2af9d3f-d2ac-40c2-ac89-95e627804dab Finland (FI) | |
| 82e8de99-3818-41fd-9db5-91ebce08b7f2 Netherlands (NL) | |
| 3a54d027-860b-411a-ab7e-7794a03b2661 Germany (DE) | |
| c29148ed-c752-4943-957b-48e521c158ee Bulgaria (BG) | |
| 6c0ae89b-503b-40c5-b10c-ff76a49d3008 Sweden (SE) | |
| d6c64ba9-85dc-481a-85b8-f90725c33c5d Denmark (DK) | |
| e57dfc82-4dc2-4877-8dff-06df839ec912 Poland (PL) | |
| 837fc8cc-9c01-4d53-9da3-a45547db61cc France (FR) | |
| 6c291123-4d2c-4a87-b5eb-6628e649ce91 Netherlands (NL) | |
| dcf6a8aa-4991-4f94-a572-0ced9306f46f Czech Republic (CZ) | |
| cbc03a45-e6a8-48ca-8bc6-79ff97ca0363 Poland (PL) | |
| b22f5b77-4e46-4d88-84e2-f6591e411317 Netherlands (NL) | |
| 78537439-cebf-4238-a8f9-c2074c24574d Estonia (EE) | |
| c4b3c616-343d-4c0c-b00b-dfd8fdc44373 Greece (GR) | |
| f05da2e3-db7d-41e9-880a-f2c26a984e4d Portugal (PT) | |
| c5a1d7c1-1ab9-446e-adf0-e252be4f7576 Germany (DE) | |
| 083ae48c-ec3e-45db-b57c-63d74c83cfbe France (FR) | |
| 9933c2d8-203d-4642-9ef1-e02ec99f9ecd Netherlands (NL) | |
| 7fe72321-80b3-4336-9e2f-4e3501fd7699 Spain (ES) | |
| Ordering | |
| Order Code US and Canada | XT3NE3160AFF000XXX |
| E-Number (Sweden) | 3182433 |
| EAN | 8015644019280 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 155 mm |
| Package Level 1 Height | 190 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Gross Weight | 1.702 kg |
| Package Level 1 EAN | 8015644019280 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 85..192 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 7.9 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 160 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1600 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (240 V AC) 50 kA | |
| (380 V AC) 27 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 19 kA | |
| (500 V AC) 15 kA | |
| (525 V AC) 9.75 kA | |
| (690 V AC) 3.75 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (240 V AC) 50 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 20 kA | |
| (525 V AC) 13 kA | |
| (690 V AC) 5 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Recommended Screw Driver | Main Circuit M8 |
| Release | TMD |
| Release Type | TM |
| RoHS Date | NA |
| Setting Range | 112...160 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT3 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 8 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0409 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5530 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000720R0100 |
| Mechanical Drawings | 1SDH000720R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000720R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
