> ABB>Molded case "Isomax-Tmax">1SDA064764R1 ABB T7S1000 PR231/P LS/I 3P F F UL
Previous Product Next Product

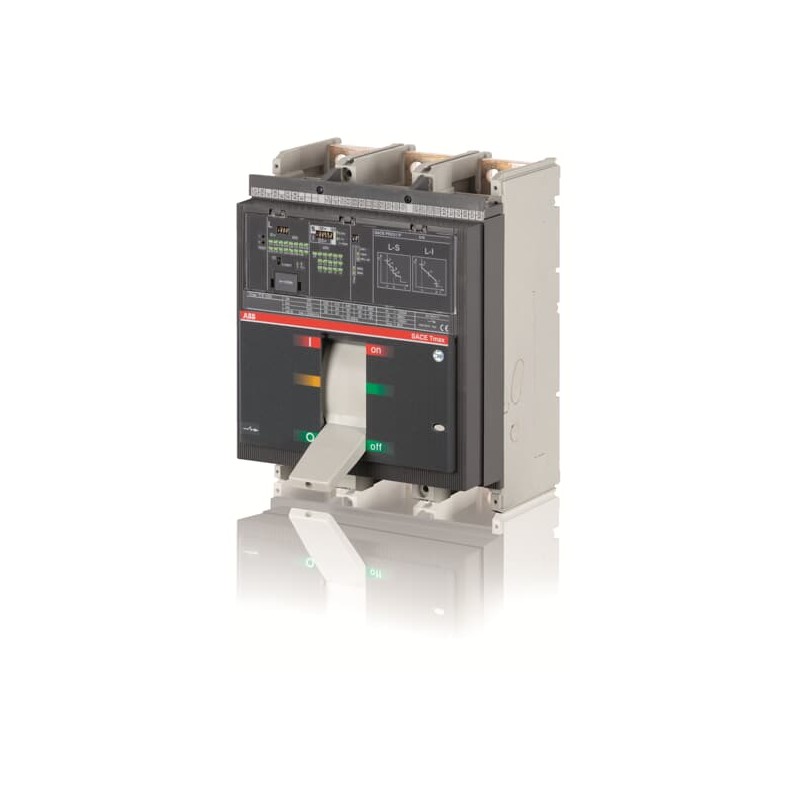

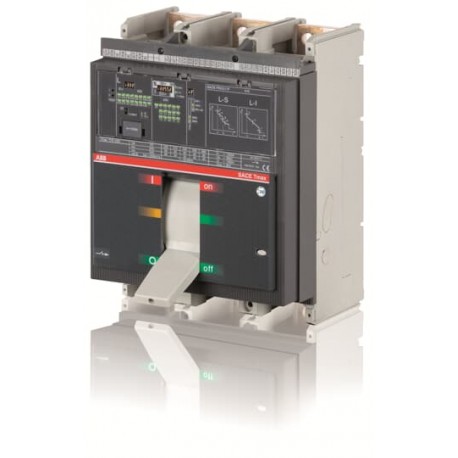

1SDA064764R1 ABB T7S1000 PR231/P LS/I 3P F F UL View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA064764R1 ABB T7S1000 PR231/P LS/I 3P F F UL

1SDA064764R1

ABB

T7S1000 PR231/P LS/I 3P F F UL

C.BREAKER TMAX T7S 1000 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1000

More details


Molded case "Isomax-Tmax"

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
T7S 1000 UL PR231/P LS/I In1000A 3p FF
Product ID:
1SDA064764R1
EAN:
8015644676490
Catalog Description:
T7S 1000 UL PR231/P LS/I In1000A 3p FF
Long Description:
C.BREAKER TMAX T7S 1000 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1000
\n

Ordering

EAN:
8015644676490
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
210 mm
Product Net Height:
268 mm
Product Net Depth / Length:
154 mm
Product Net Weight:
9.7 kg

Container Information

Package Level 1 EAN:
8015644676490

Technical UL/CSA

Interrupting Rating acc. to UL489:
(240 V AC) 65 kA

(480 V AC) 50 kA

(600 V AC) 25 kA

Additional Information

Mechanical Durability:
10000 cycle

60 cycles per hour
Number of Poles:
3
Power Loss:
at Rated Operating Conditions per Pole 30 W
Product Main Type:
SACE Tmax T
Product Name:
Moulded Case Circuit Breaker
Product Type:
CB
Rated Current (In):
Main Circuit 1000 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
600 V AC
Rated Uninterrupted Current (Iu):
1000 A
Release:
PR231/P-LS/I
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
UL
Sub-type:
T7
Suitable For:
T7
Suitable for Product Class:
Moulded Case Circuit Breakers
Terminal Connection Type:
Fixed Circuit-Breakers

Front
Test Voltage Max (Utest):
3500 V
Version:
F

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n9AKK105713A5947
Declaration of Conformity - CE:\n1SDL000165R0007
GL Certificate:\n1SDL000163R0055
Instructions and Manuals:\n1SDC210023D0201

Classifications

ETIM 6:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG ABB TMAX XT EN.pdf 70 Mbytes
1SDA064764R1 EN_1SDA064764R1.pdf 87 Kbytes 1SDA064764R1 EN_1SDA064764R1.pdf
