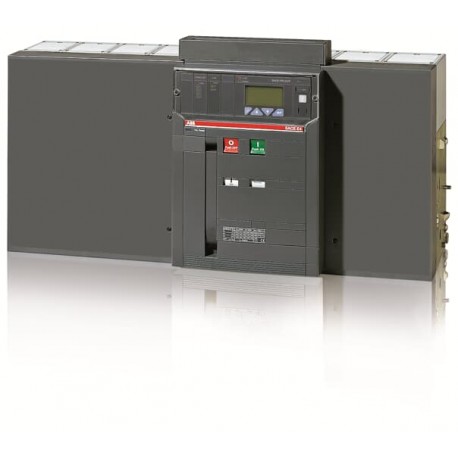

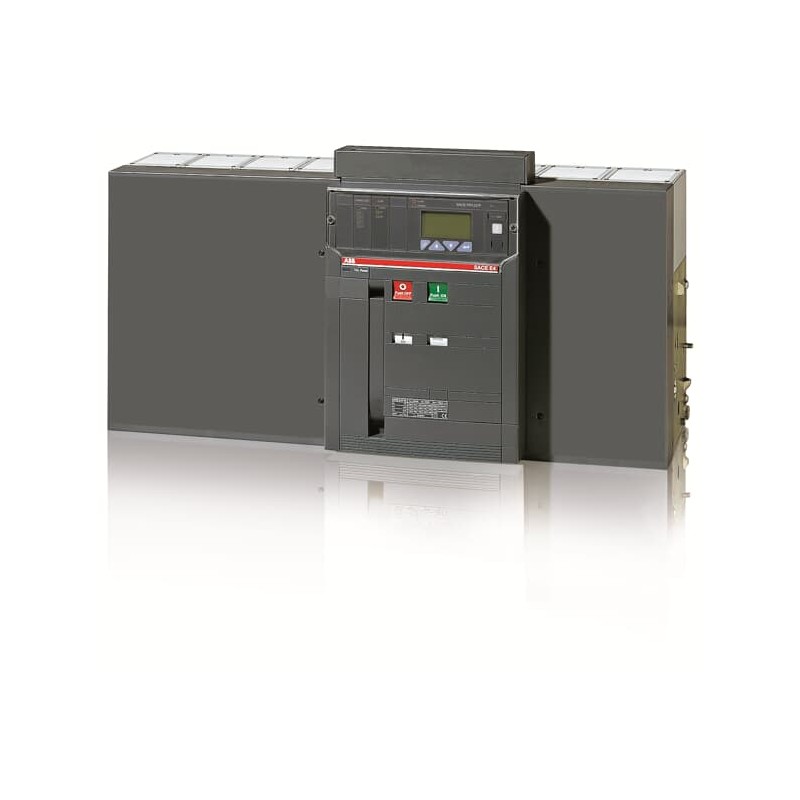

1SDA064740R1 ABB E4S/f 2000 PR123/DC 4P W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA064740R1 ABB E4S/f 2000 PR123/DC 4P W MP

1SDA064740R1

ABB

E4S/f 2000 PR123/DC 4P W MP

SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E4S/f 2000A FOUR-POLE OVERCURRENT RELEASE PR123/DC R2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

More details


Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection

Service Breakers

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $34,652.30
Unit price: $34,652.30
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
E4S/f2000PR123/DCIn=2000A4pWMP
Product ID:
1SDA064740R1
EAN:
8015644676339
Catalog Description:
E4S/f 2000 PR123/DC In=2000A 4p W MP
Long Description:
SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E4S/f 2000A FOUR-POLE OVERCURRENT RELEASE PR123/DC R2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
\n

Ordering

EAN:
8015644676339
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
774 mm
Product Net Height:
461 mm
Product Net Depth / Length:
396.5 mm
Product Net Weight:
96 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
1000 mm
Package Level 1 EAN:
8015644609139

Additional Information

Current Type:
DC
Electrical Durability:
Ue = 1000 V 7000 cycle
Mechanical Durability:
15000 cycle

60 cycles per hour
Number of Poles:
4 / f
Power Loss:
280 W
Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Rated Current (In):
2000 A
Rated Voltage (Ur):
1000 V
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
2000 A
Rated Operational Voltage:
1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(750 V DC) 65 kA

(1000 V DC) 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(750 V DC) 65 kA

(1000 V DC) 50 kA
Rated Uninterrupted Current (Iu):
2000 A
Release:
PR123/DC
Release Type:
EL
Short-Circuit Performance Level:
S
Standards:
IEC
Sub-type:
E4
Terminal Connection Type:
Withdrawable Circuit-Breakers
Version:
W

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC200012D0202
Declaration of Conformity - CE:\n1SDL000165R0016
Instructions and Manuals:\n1SDH000635R0002

Classifications

ETIM 4:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

Datasheet - PDF

▲
Title: Size: Type:
PDF CIRCUIT BREAKERS TMAX XT.pdf 26 Mbytes
1SDA064740R1 1SDA064740R1 EN_1SDA064740R1.pdf 87 Kbytes 1SDA064740R1 1SDA064740R1 EN_1SDA064740R1.pdf
