1SDA064702R1 ABB E3N2500 PR123/DC 4P F VR View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

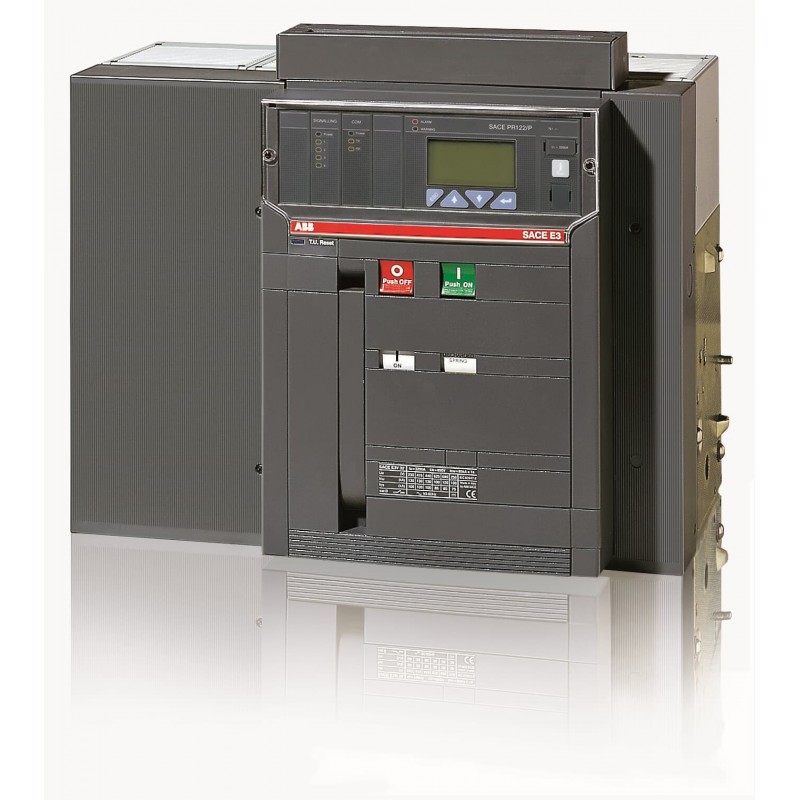

1SDA064702R1 ABB E3N2500 PR123/DC 4P F VR

1SDA064702R1

ABB

E3N2500 PR123/DC 4P F VR

SACE EMAX CIRCUIT-BREAKER E3N 2500A FOUR-POLE FIXED WITH TERMINALS REAR VERTICAL OVERCURRENT RELEASE PR123/DC R2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

More details


Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection

Service Breakers

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $26,884.31
Unit price: $26,884.31
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
E3N2500PR123/DCIn=2500A4pFVR<HR
Product ID:
1SDA064702R1
EAN:
8015644675950
Catalog Description:
E3N 2500 PR123/DC In=2500A 4p F VR<HR
Long Description:
SACE EMAX CIRCUIT-BREAKER E3N 2500A FOUR-POLE FIXED WITH TERMINALS REAR VERTICAL OVERCURRENT RELEASE PR123/DC R2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
\n

Ordering

EAN:
8015644675950
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
530 mm
Product Net Height:
418 mm
Product Net Depth / Length:
302 mm
Product Net Weight:
76 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
785 mm
Package Level 1 EAN:
8015644609139

Additional Information

Current Type:
DC
Electrical Durability:
Ue = 1000 V 7000 cycle
Mechanical Durability:
20000 cycle

60 cycles per hour
Number of Poles:
4
Power Loss:
450 W
Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Rated Current (In):
2500 A
Rated Voltage (Ur):
1000 V
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
2500 A
Rated Operational Voltage:
1000 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(750 V DC) 50 kA

(1000 V DC) 35 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(750 V DC) 50 kA

(1000 V DC) 35 kA
Rated Uninterrupted Current (Iu):
2500 A
Release:
PR123/DC
Release Type:
EL
Short-Circuit Performance Level:
N
Standards:
IEC
Sub-type:
E3
Terminal Connection Type:
Fixed Circuit-Breakers

Rear flat Orientated
Version:
F

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC200012D0202
Declaration of Conformity - CE:\n1SDL000165R0015
Instructions and Manuals:\n1SDH000635R0002

Classifications

ETIM 4:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

ETIM for 1SDA064702R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 2500 A
Rated voltage (EF003977) 1000 V
Overload release current setting (EF002336) 1000.0 A
Adjustment range undelayed short-circuit release (EF007131) 3750.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Back
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30
