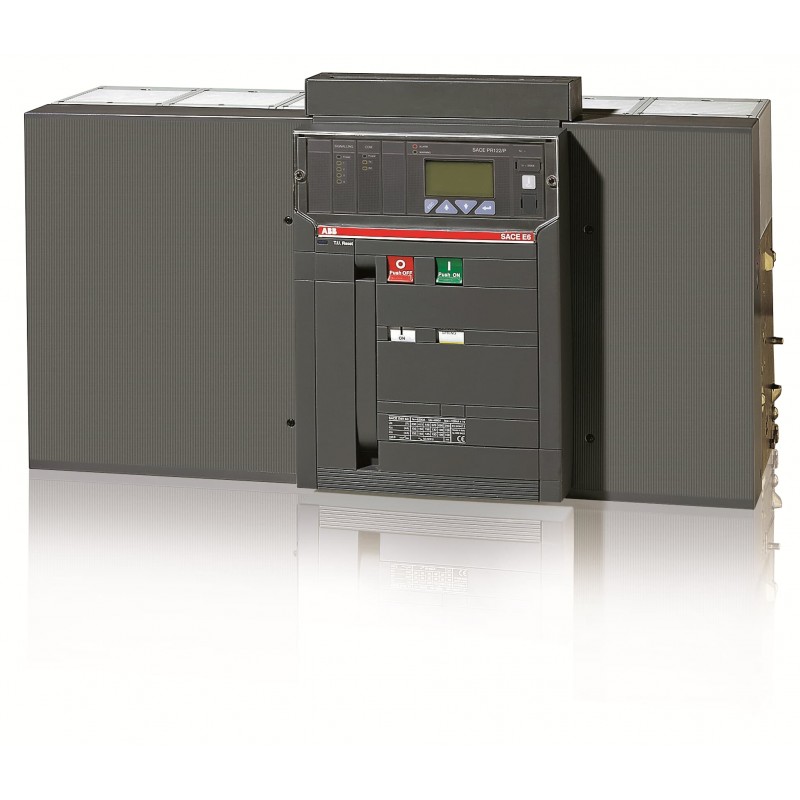

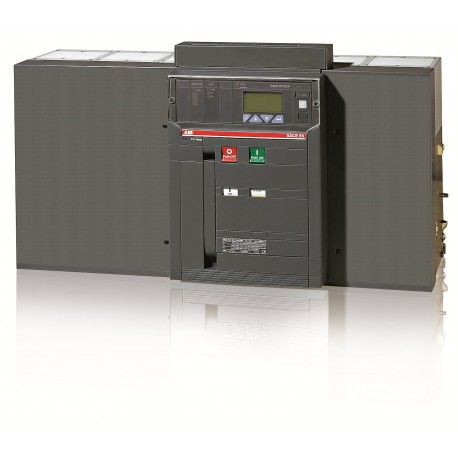

1SDA064657R1 ABB SACE EMAX CIRCUIT-BREAKER E6H 4000A THRE-POLE FIXED WITH TERMINALS REAR VERTICAL OVERCURREN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

1SDA064657R1 ABB SACE EMAX CIRCUIT-BREAKER E6H 4000A THRE-POLE FIXED WITH TERMINALS REAR VERTICAL OVERCURREN..

1SDA064657R1

ABB

SACE EMAX CIRCUIT-BREAKER E6H 4000A THRE-POLE FIXED WITH TERMINALS REAR VERTICAL OVERCURRENT RELEASE PR122/DC R4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED

More details


Service Breakers

* Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total price: $33,167.55
Unit price: $33,167.55

Quantity Price
1+$33,167.55
2+$33,167.56
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
E6H4000PR122/DCIn=4000A3pFVR<HR
Product ID:
1SDA064657R1
EAN:
8015644675509
Catalog Description:
E6H 4000 PR122/DC In=4000A 3p F VR<HR
Long Description:
SACE EMAX CIRCUIT-BREAKER E6H 4000A THRE-POLE FIXED WITH TERMINALS REAR VERTICAL OVERCURRENT RELEASE PR122/DC R4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
\n

Ordering

EAN:
8015644675509
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions

Product Net Width:
782 mm
Product Net Height:
418 mm
Product Net Depth / Length:
302 mm
Product Net Weight:
112 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
515 mm
Package Level 1 Height:
600 mm
Package Level 1 Depth / Length:
1000 mm
Package Level 1 EAN:
8015644609139

Additional Information

Current Type:
DC
Electrical Durability:
Ue = 1000 V 4000 cycle
Mechanical Durability:
12000 cycle

60 cycles per hour
Number of Poles:
3
Power Loss:
304 W
Product Main Type:
SACE Emax
Product Name:
Air Circuit Breaker
Product Type:
Air Circuit Breaker
Rated Current (In):
4000 A
Rated Voltage (Ur):
750 V
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Current (Ie):
4000 A
Rated Operational Voltage:
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(500 V DC) 100 kA

(750 V DC) 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(500 V DC) 100 kA

(750 V DC) 65 kA
Rated Uninterrupted Current (Iu):
4000 A
Release:
PR122/DC
Release Type:
EL
Short-Circuit Performance Level:
H
Standards:
IEC
Sub-type:
E6
Terminal Connection Type:
Fixed Circuit-Breakers

Rear flat Orientated
Version:
F

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n1SDC200012D0202
Declaration of Conformity - CE:\n1SDL000165R0017
Instructions and Manuals:\n1SDH000635R0002

Classifications

ETIM 4:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 5:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 6:
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
ETIM 7:
EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

Datasheet - PDF

▲
Title: Size: Type:
1SDA064657R1 1SDA064657R1 EN_1SDA064657R1.pdf 88 Kbytes 1SDA064657R1 1SDA064657R1 EN_1SDA064657R1.pdf
