1SDA064617R1 ABB E3H2500 PR122/DC 4P F VR
1SDA064617R1
ABB
E3H2500 PR122/DC 4P F VR

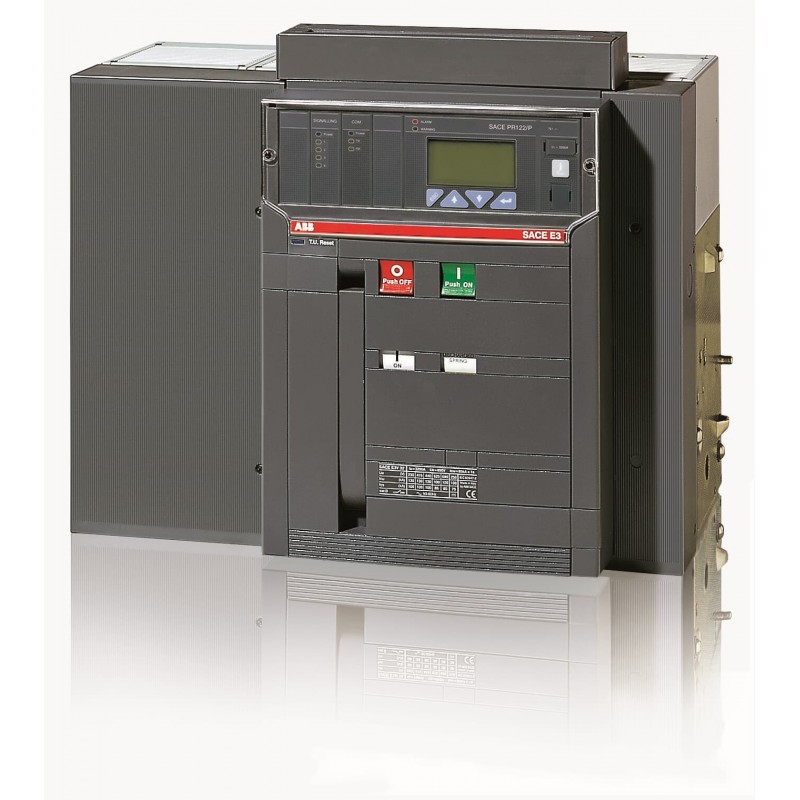

SACE EMAX CIRCUIT-BREAKER E3H 2500A FOUR-POLE FIXED WITH TERMINALS REAR VERTICAL OVERCURRENT RELEASE PR122/DC R2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲b'
General Information
E3H2500PR122/DCIn=2500A4pFVR<HR
1SDA064617R1
8015644675103
E3H 2500 PR122/DC In=2500A 4p F VR<HR
SACE EMAX CIRCUIT-BREAKER E3H 2500A FOUR-POLE FIXED WITH TERMINALS REAR VERTICAL OVERCURRENT RELEASE PR122/DC R2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Ordering
8015644675103
1 piece
85362090
Dimensions
530 mm
418 mm
302 mm
76 kg
Container Information
1 piece
515 mm
600 mm
785 mm
8015644609139
Additional Information
DC
Ue = 1000 V 7000 cycle
20000 cycle
60 cycles per hour
4
450 W
SACE Emax
Air Circuit Breaker
Air Circuit Breaker
2500 A
1000 V
12 kV
1000 V
2500 A
1000 V DC
(750 V DC) 50 kA
(1000 V DC) 40 kA
(750 V DC) 50 kA
(1000 V DC) 40 kA
2500 A
PR122/DC
EL
H
IEC
E3
Fixed Circuit-Breakers
Rear flat Orientated
F
Certificates and Declarations (Document Number)
Classifications
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
EC000228 - Power circuit-breaker for trafo/generator/installation prot.
EC000228 - Power circuit-breaker for trafo/generator/installation protection
4. Large Equipment (Any External Dimension More Than 50 cm)
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 2500 A |
| Rated voltage (EF003977) | 1000 V |
| Overload release current setting (EF002336) | 1000.0 A |
| Adjustment range undelayed short-circuit release (EF007131) | 3750.0 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| With switched-off indicator (EF007006) | Yes |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 4 |
| Position of connection for main current circuit (EF006671) | Back |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP30 |
