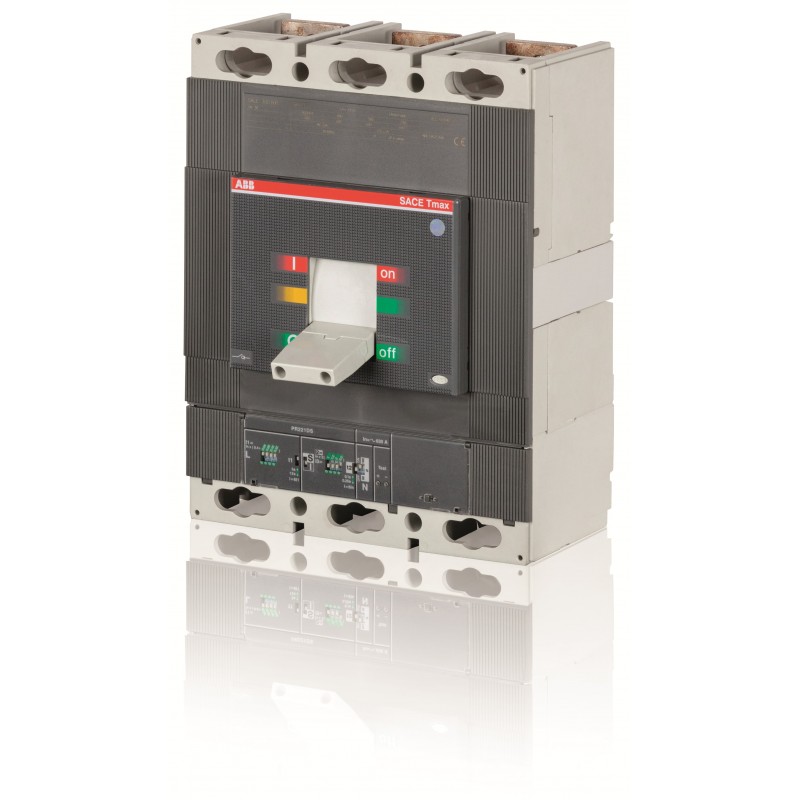

1SDA060547R1 ABB C.BREAKER TMAX T6S 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC..
1SDA060547R1
ABB
C.BREAKER TMAX T6S 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 1000
T6S 1000 PR221DS-LS/I In=1000 3p F F
Molded case "Isomax-Tmax"
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | de81fb41-cbf7-48c4-bde8-280d7d82e908 Italy |
| Simplified SCIP | beefd7b5-d2b5-4a85-acae-5ba301b3b308 Denmark |
| 2d8a9632-0cc3-48dd-99f4-46bf1c5c7b47 Sweden | |
| 8071c073-1bf8-4136-b33c-3b25fb1a20d5 Germany | |
| dedcb6d2-9a1b-46d1-8dde-493c0f3c1137 Estonia | |
| 518fb81e-f351-4c8c-9cc1-20ee97c62a93 Netherlands | |
| b295239b-6114-4d19-8117-40bd314d8009 Bulgaria | |
| ca00cd19-bfec-4e51-a256-5fc12abaad5b Norway | |
| 2d0b63c9-ec13-46f3-bdb2-9c42a4f352ac Sweden | |
| 8264510f-4cb2-45c0-9316-2dfd7e18ecd1 Poland | |
| c81370ba-10e5-4d4b-b7ef-78796e2b8ee6 France | |
| 84ae3a65-7159-4a5a-9ceb-427e99f8e224 Belgium | |
| 0f919de4-ae71-4ee3-8fce-5b1297a27a89 Poland | |
| 0a4d0daa-0a9c-4b9d-8893-efe06006178f Hungary | |
| 47c04f88-ed9e-4e7b-bbbe-93b303380428 Belgium | |
| 66caa833-6c85-474e-99f6-31af26f00da9 Germany | |
| 4fe4fc02-2622-48f9-bd3a-be87ce0efea6 Croatia | |
| 2696e57e-6cd0-4f81-b673-1e7fec125354 Finland | |
| 93796246-4e41-4885-bfe6-4877ae0e56f4 Czech Republic | |
| fb3ccf68-0dbf-471c-89da-3b3f204cd32a Greece | |
| a383fd6d-3e01-4de3-b3f1-52fcc37dc008 Poland | |
| 431aeb24-2f9b-4ab0-972f-e1813fd325b7 Germany | |
| d0a7a531-e8df-48da-b768-3bb285a6c38e Germany | |
| ad6316de-d96b-465d-8375-7f6770b84f3e Portugal | |
| e5917d5d-955e-4ed4-9b7d-01ea2cd6fbdf Spain | |
| 7b51f918-b725-48d4-b6e7-8db1b164db39 Germany | |
| c5640074-6381-40c5-8c9b-2e300148d22f Hungary | |
| c2944b69-0a9b-4e8b-9292-b8c122757ccf France | |
| Environmental | |
| Environmental Information | 9AKK10103A1058 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655416 |
| EAN | 8015644630485 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8015644630485 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 4000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 50 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 45 kA | |
| (500 V AC) 35 kA | |
| (690 V AC) 16.5 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 45 kA | |
| (500 V AC) 35 kA | |
| (690 V AC) 22 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5538 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH000511R0003 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB TMAX XT EN.pdf | 70 Mbytes |
|
| 1SDA060547R1 1SDA060547R1 EN_1SDA060547R1.pdf | 103 Kbytes |
|
