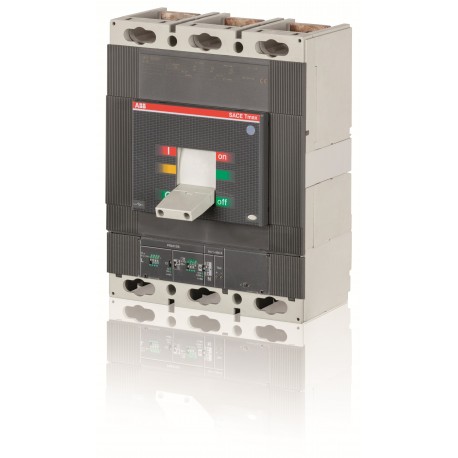

1SDA060537R1 ABB CIRCUIT BREAKER TMAX T6N 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE..

Reference: 1SDA060537R1

Manufacturer: ABB

Description:

CIRCUIT BREAKER TMAX T6N 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 1000

T6N 1000 PR221DS-LS/I In=1000 3p F F

Categories:

ABB > Molded case "Isomax-Tmax" > T6

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
PDF
Reviews

Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

ABB EcoSolutions
Material Compliance
REACH Declaration	9AKK108466A1425
RoHS Declaration	9AKK108466A1424
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
Toxic Substances Control Act - TSCA	9AKK108467A8326
SCIP	d17d77b3-4807-4473-9a49-35ae6385b1bd Italy
Simplified SCIP	57148273-0e6a-4259-8075-4d2dedc7b546 Denmark
	f9d354ce-12fb-45bb-be8e-8315bd870c45 Sweden
	88c6f9bb-89fd-401c-a01a-32e32ba0e4e1 Germany
	25f44c37-9d58-4e93-bbc6-61c99a1dd6bf Estonia
	65d158bf-f7a8-41fd-8e0a-e2b07dc1c391 Netherlands
	84002648-921b-425f-8f0f-34dd0ece63fb Bulgaria
	90b7fc18-4d1c-4002-b23c-c89486d58dcd Norway
	9c93427b-a27f-44d2-9fe1-cdaffb44ed91 Sweden
	86b3cc32-34f3-44dc-b59a-bfabbd65d938 Poland
	635c76da-49c2-4c12-adcb-1c188579a26f France
	8d4e7e14-cee1-47f3-9cf8-b390b6569fcc Belgium
	b55abb65-6119-403b-9a5f-f0f5e8cde6e8 Poland
	b45c53ff-adb2-4add-b377-f6877af56611 Hungary
	ddb0efac-2f7f-44f5-9513-5ea5bbce8f59 Belgium
	f6927a7f-1927-473e-9646-7d4094b9c274 Germany
	05bad9c2-2762-4633-a17a-9d5514db36aa Croatia
	bf24b039-ff4b-4614-90cf-390e57dfbb64 Finland
	7d829607-f195-4ddc-9524-3d4efe2645d5 Czech Republic
	27fbb443-1877-478b-ba0e-c30da50f23a7 Greece
	d75e05fd-bc45-4d5a-97f6-3ffa8f607eda Poland
	b10b9814-ed9c-49e9-8f05-68a6bdc47760 Germany
	e17a9b86-2a87-46db-8d8b-f2a355c77198 Germany
	5c1fad74-0f3b-4248-a49e-5589533b0f21 Portugal
	158f2c63-71bb-47b3-9b72-76258a71d505 Spain
	19d31cc4-ea6f-4b46-99d7-f526378b4954 Germany
	75a98549-d32c-42bc-9652-2949ebe1bb59 Hungary
	60cdc24b-d76d-4bf3-842a-c8dfc90de4dd France
Environmental
Environmental Information	9AKK10103A1058
	9AKK108467A6707
Ordering
E-Number (Finland)	3655413
E-Number (Norway)	4383532
EAN	8015644630522
Minimum Order Quantity	1 piece
Customs Tariff Number	85362090
Dimensions
Product Net Width	210 mm
Product Net Height	268 mm
Product Net Depth / Length	103.5 mm
Product Net Weight	12.863 kg
Container Information
Package Level 1 Units	1 piece
Package Level 1 Width	305 mm
Package Level 1 Height	285 mm
Package Level 1 Depth / Length	370 mm
Package Level 1 Gross Weight	13.54 kg
Package Level 1 EAN	8015644630522
Additional Information
Product Main Type	SACE Tmax T
Product Name	Moulded Case Circuit Breaker
Product Type	Automatic Circuit Breaker
Suitable For	T6
Suitable for Product Class	Moulded Case Circuit Breakers
Version	F
Technical
Electrical Durability	4000 cycle
	60 cycles per hour
Mechanical Durability	20000 cycle
	120 cycles per hour
Number of Poles	3P
Power Loss	at Rated Operating Conditions per Pole 50 W
Rated Current (I_n)	1000 A
Rated Impulse Withstand Voltage (U_imp)	8 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Voltage	690 V AC
Rated Service Short-Circuit Breaking Capacity (I_cs)	(220 V AC) 70 kA
	(230 V AC) 70 kA
	(380 V AC) 36 kA
	(400 V AC) 36 kA
	(415 V AC) 36 kA
	(440 V AC) 30 kA
	(500 V AC) 25 kA
	(690 V AC) 15 kA
Rated Ultimate Short-Circuit Breaking Capacity (I_cu)	(220 V AC) 70 kA
	(230 V AC) 70 kA
	(380 V AC) 36 kA
	(400 V AC) 36 kA
	(415 V AC) 36 kA
	(440 V AC) 30 kA
	(500 V AC) 25 kA
	(690 V AC) 20 kA
Rated Uninterrupted Current (I_u)	1000 A
Release	PR221DS-LS/I
Release Type	EL
Short-Circuit Performance Level	N
Standards	IEC
Sub-type	T6
Terminal Connection Type	Fixed Circuit-Breakers
	Front
Test Voltage Max (U_test)	3500 V
Certificates and Declarations
Data Sheet, Technical Information	1SDC210015D0201
Declaration of Conformity - CE	9AKK106713A5538
EU Data Act Compliance Declaration	1SDH002560A1001
GL Certificate	1SDL000163R0057
Instructions and Manuals	1SDH000511R0003
External Classifications and Standards
ETIM 9	EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10	EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code	Q
UNSPSC	39121100
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
eClass	V11.1 : 27370409

DATASHEET - PDF

Title

Size

Type

1SDA060537R1 1SDA060537R1 1SDA060537R1_T6N_1000_PR221DS-LS_I_In_1000_3p_F_F.pdf

208 Kbytes

PDF CATALOG ABB TMAX XT EN

70 Mbytes
