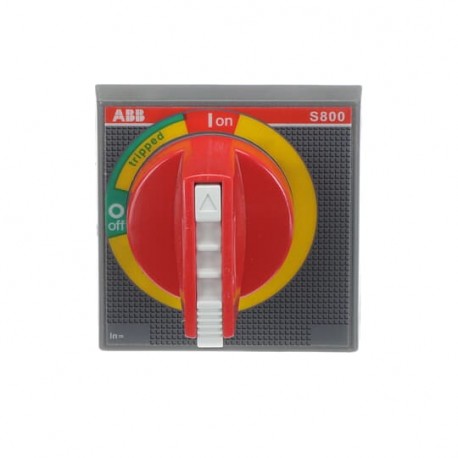

1SDA060151R0001 ABB S800-RHE-EM Rotary Exterior Control
1SDA060151R0001
ABB
S800-RHE-EM Rotary Exterior Control
S800-RHE-EM Red rotary handle
Low-voltage industrial components > Handle for power circuit breaker
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Technical | |
|---|---|
| Suitable For | S800P |
| S800S | |
| S800N | |
| S800C | |
| S800B | |
| S800HV | |
| S800U | |
| S800PV-SP | |
| S800PV-SD | |
| S800PV-M-H | |
| Remarks | Can be used together with S800-RHE-S (axial extension) with 500mm length and S800-RD (rotary drive adapter for 2-4-pole S800) |
| Design | |
| Color | Red |
| Material Compliance | |
| RoHS Declaration | 9AKK107680A3903 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20190320 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Resistance to Vibrations | 1 mm 2 - 13.2 Hz |
| 0.7g with Load 100% x Ie 13.2 - 100 Hz | |
| Resistance to Shock acc. to IEC 60068-2-27 | 5 g |
| 30 ms | |
| Environmental Information | 2CCY413207D0203 |
| Dimensions | |
| Product Net Width | 76 mm |
| Product Net Height | 76 mm |
| Product Net Depth / Length | 67 mm |
| Product Net Weight | 0.02 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.023 kg |
| E-Number (Finland) | 3212418 |
| Certificates and Declarations | |
| Installation | |
| Instructions and Manuals | 9AKK106930A3418 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC413003C0208 |
| External Classifications and Standards | |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| UNSPSC | 31162801 |
| eClass | V11.0 : 27370414 |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| Object Classification Code | F |
| Feature Name | Feature Value |
|---|---|
| With restart blockage (EF004054) | No |
| With key lock (EF026057) | Yes |
| Padlock locking (EF001163) | Yes |
| Suitable for emergency stop (EF001433) | Yes |
| With extension shaft (EF001434) | No |
| Suitable for power circuit breaker (EF005863) | Yes |
| Suitable for switch disconnector (EF007252) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF MINIATURE CIRCUIT BREAKERS EN .pdf | 37 Mbytes |
|
