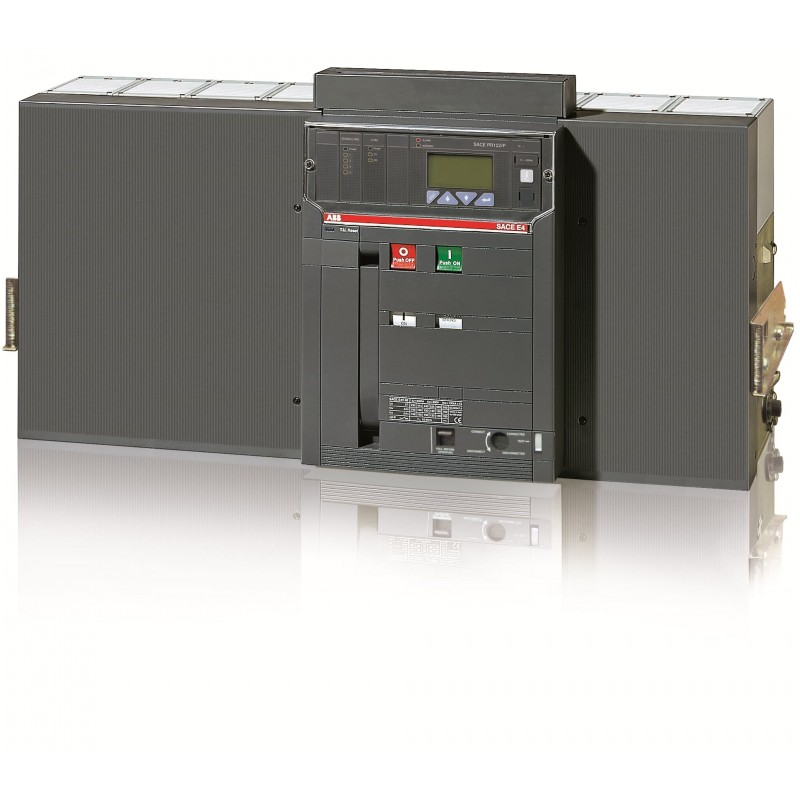

1SDA056815R1 ABB E4S4000 PR123/P LSIG 4P W MP
1SDA056815R1
ABB
E4S4000 PR123/P LSIG 4P W MP
E4S 4000 PR123/P-LSIG In=4000A 4p W MP
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | dfafa742-ef6e-452e-b31a-ba0526463159 Italy |
| Simplified SCIP | 83387064-d024-4aef-bee9-3efd5d81f474 France |
| ee798ef2-d659-4292-b31b-0450141d99b8 Hungary | |
| 3e25332e-2cce-4d05-8390-955f97586e1f Spain | |
| 965244f7-2abf-4e29-b24c-392e1ee6f9c4 Sweden | |
| 5f79dea3-2006-439c-bf25-17f09dc20dab Germany | |
| 7bce7e2b-8ae5-44c3-8d27-73fe90dd05e3 Germany | |
| fbb8751c-d38b-443d-b15c-9b6faa8552d0 Belgium | |
| 8ef8bd85-e4ac-4600-b034-9443d218b36b Germany | |
| a5db6076-0502-44da-aaf5-930dce66c182 Poland | |
| 703d7849-fb2c-453a-835f-33e48e533888 Finland | |
| 5ef41504-712e-4e3c-967c-627ca10ad7ad Germany | |
| 4a87debd-973c-4e58-8703-acaab553873d Belgium | |
| e3e8a5f6-989e-4ae4-9982-bea8218e1e66 Denmark | |
| f5bf66e9-e20f-4044-91a3-7ada91d4e9a6 Norway | |
| 983f062d-9064-4183-9c7f-4a819f82d1bb Portugal | |
| 675c2693-57fc-4595-8e02-0f67340cc70a Greece | |
| 51889399-1dc3-449d-93e7-8d3ee38eba59 Sweden | |
| 4d606c4c-1857-4761-8520-40c5238b58a5 Bulgaria | |
| 7493952e-d658-4ed0-9367-6051f0463588 Hungary | |
| db3e8fd9-7d2f-43ad-a778-aee4057d9d96 Netherlands | |
| 70ebe291-441e-4637-885c-3420a7914236 Estonia | |
| dc51fd3a-bddf-4c2a-8faa-5a6a46900a20 Croatia | |
| d6b34421-e8b6-4e18-bc62-33865d67bc7b Germany | |
| 5673adf6-59ca-4a0f-b132-4b95869b6133 Czech Republic | |
| 402049fa-50af-4842-8d18-eb0107f956b7 Poland | |
| 7bcfbd38-8ec1-4eab-b959-167bed3d203b France | |
| fcf4b408-192e-49c1-9fbd-a4dc08078182 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644581558 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 684 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 96 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 920 mm |
| Package Level 1 Gross Weight | 116 kg |
| Package Level 1 EAN | 8015644581558 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 5000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 660 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 4000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 75 kA |
| (230 V AC) 75 kA | |
| (380 V AC) 75 kA | |
| (400 V AC) 75 kA | |
| (415 V AC) 75 kA | |
| (440 V AC) 75 kA | |
| (500 V AC) 75 kA | |
| (660 V AC) 75 kA | |
| (690 V AC) 75 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 75 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 75 kA |
| (230 V AC) 75 kA | |
| (380 V AC) 75 kA | |
| (400 V AC) 75 kA | |
| (415 V AC) 75 kA | |
| (440 V AC) 75 kA | |
| (500 V AC) 75 kA | |
| (660 V AC) 75 kA | |
| (690 V AC) 75 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR123/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E4 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0016 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
