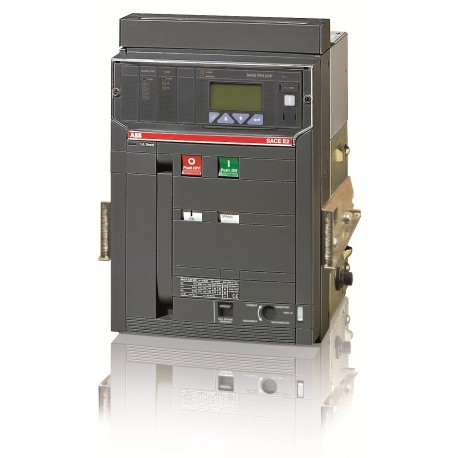

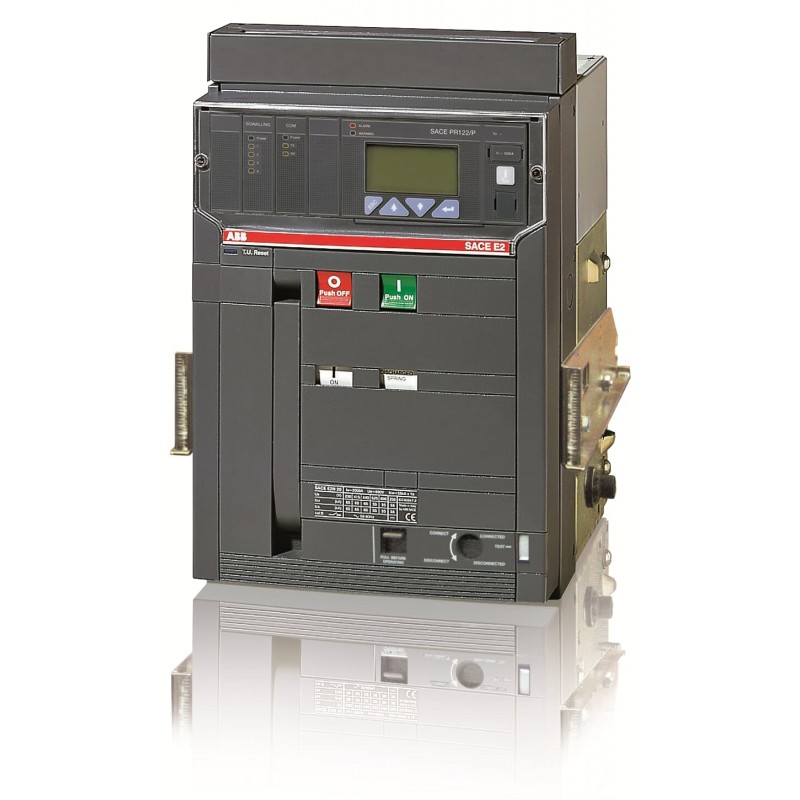

1SDA055941R1 ABB E2N2000 PR122/P LSIG 3P W MP
1SDA055941R1
ABB
E2N2000 PR122/P LSIG 3P W MP
SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E2N 2000A THRE-POLE OVERCURRENT RELEASE PR122/P-LSIG R2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
E2N 2000 PR122/P-LSIG In=2000A 3p W MP
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | d3b0a43c-5e99-4011-85e3-ff6bd75a49f9 Italy |
| Simplified SCIP | cbf6d68c-1178-4b84-a2fb-befe21597c7b Germany |
| 23ca2657-ed2f-4f94-8e3a-f34c7d7d6422 Germany | |
| 91fe83bd-7a6f-4fd6-94dd-2f751970c3cc Bulgaria | |
| 46f01fb4-b5d7-4848-9e89-38e674ec6a8e Poland | |
| 2840e52c-3302-4e31-a34d-fa841c2a9f77 Czech Republic | |
| e6c76523-3467-4bd4-9d48-ce18e4779895 Poland | |
| 55fc4325-1d3c-492e-8b78-d458054bb630 Netherlands | |
| 4840ea95-5002-4cc4-82f8-cd593fcba6bd Germany | |
| 191826b1-c2ca-4a50-bdfb-c4a813763cf9 Croatia | |
| 662d8cc1-203f-4e80-892e-d02ce6eea511 Hungary | |
| e8a7bbdc-6896-490b-b10b-2fa054cedba7 Poland | |
| 73452080-39e6-480e-8928-e2eeada1f405 Finland | |
| ff1121ca-f063-4d62-aa91-e0caac952614 Norway | |
| d2fa5c9a-fef1-464e-887f-fe96ec4c4873 Denmark | |
| 7d064ee9-bf65-4c9c-a708-a346df89299e Belgium | |
| c71b876a-358a-4203-bd20-560d5a127a60 Germany | |
| dbb97d5c-6110-4825-a17d-371ba6ac29a9 Belgium | |
| 8218693e-557a-4cd2-b203-a6501733bede Sweden | |
| 9241d33b-1d73-4462-a6e3-1b5affd99e0a Hungary | |
| a26f7540-a2bb-4419-a38f-130162a55f2e France | |
| bf183e3d-26fd-4e9b-b106-5eefca3fbb74 Germany | |
| 476d5d13-392d-4a61-8114-8f49396abb50 France | |
| 59cfe0b9-c274-4bec-8e0e-cf9ebac74d3c Sweden | |
| 2928ba9f-fdcd-417d-a310-7b9129d09986 Estonia | |
| e65eb00b-2f88-4e8b-8f26-2c9d16b20786 Spain | |
| 1b5ca7e1-163b-471c-8869-e050e0e27753 Greece | |
| 3872fca4-d023-4c63-b785-1c141b459820 Portugal | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644572815 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644572815 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 330 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
